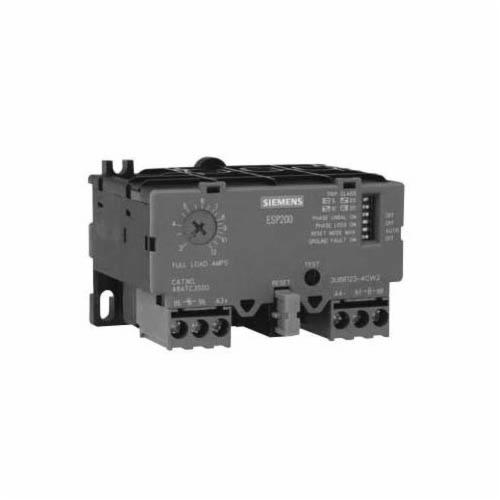

Siemens 3UB81234LW2 Solid State Overload Relay, 1NO-1NC Contact Form
SKU989743
MFGR #3UB81234LW2
Your Cost: $239.44/ea
List: Siemens Overload Relay, Solid State, 1NO-1NC, 600 A at 600 VAC Contact, 3 Poles, DIN Rail Mount, Threaded Terminal, -25 to 60 deg C
Siemens Overload Relay, Solid State, 1NO-1NC, 600 A at 600 VAC Contact, 3 Poles, DIN Rail Mount, Threaded Terminal, -25 to 60 deg C
Alternate Catalog Number 3UB8123-4LW2 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3UB81234LW2 Contact Form 1NO-1NC Contact Rating 600 A at 600 VAC Country of Origin CZ Currency USD EU RoHS Indicator C Gross Volume Per Pack 41.21 Gross Volume UOM in Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490080 Height 4.1000 in Height [Metric] 10.4140 cm Length 3.3500 in Length [Metric] 8.5090 cm Manufacturer Siemens Mounting Type DIN Rail Number Of Poles 3 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL Listed Stock Status NONSTOCK Temperature Rating -25 to 60 °C Terminal Type Threaded Type Solid State UNSPSC 39122330 UPC 11 66264389725 UPC 12 662643897258 Width 3.0000 in Width [Metric] 7.6200 cm Trip class - 5, 10, 20, or 30 selectable by DIP switches Phase loss protection - trips in less than 3 sec Phase unbalance - trips based on trip class selected Ground fault - trips 60% of motor current Trip indicator - visible Ambient insensitive No heaters required Self-powered - no outside source required FLA dial with wide Adjustment - 4:1 ratio Self-protected in short circuit condition (when used with proper fuses or motor starter protector) Test button - tests electronics Thermal memory Conformally coated circuit board Repeat accuracy <1% Removable terminal block Automatic/manual/remote reset Touch - safe terminals Class 48, frame size A1 3-phase, B600/R300 contact
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3UB8123-4LW2 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3UB81234LW2 |
| Contact Form | 1NO-1NC |
| Contact Rating | 600 A at 600 VAC |
| Country of Origin | CZ |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 41.21 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490080 |
| Height | 4.1000 in |
| Height [Metric] | 10.4140 cm |
| Length | 3.3500 in |
| Length [Metric] | 8.5090 cm |
| Manufacturer | Siemens |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL Listed |
| Stock Status | NONSTOCK |
| Temperature Rating | -25 to 60 °C |
| Terminal Type | Threaded |
| Type | Solid State |
| UNSPSC | 39122330 |
| UPC 11 | 66264389725 |
| UPC 12 | 662643897258 |
| Width | 3.0000 in |
| Width [Metric] | 7.6200 cm |
| Trip class - 5, 10, 20, or 30 selectable by DIP switches |
| Phase loss protection - trips in less than 3 sec |
| Phase unbalance - trips based on trip class selected |
| Ground fault - trips 60% of motor current |
| Trip indicator - visible |
| Ambient insensitive |
| No heaters required |
| Self-powered - no outside source required |
| FLA dial with wide Adjustment - 4:1 ratio |
| Self-protected in short circuit condition (when used with proper fuses or motor starter protector) |
| Test button - tests electronics |
| Thermal memory |
| Conformally coated circuit board |
| Repeat accuracy <1% |
| Removable terminal block |
| Automatic/manual/remote reset |
| Touch - safe terminals |
| Class 48, frame size A1 |
| 3-phase, B600/R300 contact |
