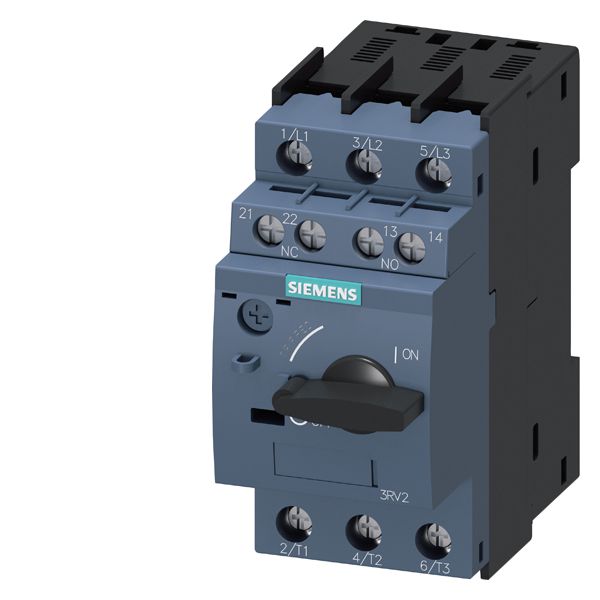

Siemens 3RV2021-4EA15 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 32 A, 4 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens 3RV2021-4EA15 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 32 A, 4 kA Interrupt, 3 Poles
SKU824945
MFGR #3RV20214EA15
Your Cost: $304.00/ea
List: Siemens 3RV20214EA15 MSP S0 27-32A AUX 1NO 1NC SCREW
Siemens 3RV20214EA15 MSP S0 27-32A AUX 1NO 1NC SCREW
Alternate Catalog Number 3RV2021-4EA15 Application Used as Manual Motor Controller and in Group Installation ARRA Compliant C Auxiliary Contact Rating 1NO-1NC Buy American Compliant C Catalog Number 3RV20214EA15 Connection screw-type terminals Connection Type Screw Country of Origin DE Currency USD Dimensions 97 mm H x 45 mm W x 96 mm D Enclosure Type IP20 Environmental Conditions 80 -50 C EU RoHS Indicator C Frame 3RV2/S0 Frequency Rating 50/60 Hz Gross Volume Per Pack 31.59 Gross Volume UOM in Gross Weight Per Pack 0.8650 lb Gross Weight per Pack Metric 0.39 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536304000 Height 4.0000 in Height [Metric] 10.1600 cm Length 4.0500 in Length [Metric] 10.2870 cm Mounting Type DIN Rail Number Of Poles 3 Operating Temperature 60 to -20 °C Phase 3 Power Rating 30 kW Returnable Y Standard CE / UL / CSA / CCC Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCCC CertifiedCSA CertifiedUL Listed Sub Brand Sirius Temperature Rating -20 to 60 °C Type 3RV2 circuit breaker UNSPSC 39121601 UPC 11 66264392449 UPC 12 662643924497 Width 1.9500 in Width [Metric] 4.9530 cm Wire Size 16 to 12 AWG, 14 to 8 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 27 to 32 A Interrupt Rating 4 kA Trip Type Thermal Magnetic Voltage Rating 690 VAC Used as Manual Motor Controller and in Group Installation MSP?s are UL approved as Self Protected Combination Motor Controllers Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 Standard switch capacity (2) 16 to 12 AWG, (2) 14 to 8 AWG - 50 to 80 deg C environmental conditions Class 10 trip 100000 cycles switching MSPs are UL approved as self protected combination motor controllers With transverse auxiliary switch
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RV2021-4EA15 |
| Application | Used as Manual Motor Controller and in Group Installation |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 1NO-1NC |
| Buy American Compliant | C |
| Catalog Number | 3RV20214EA15 |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 97 mm H x 45 mm W x 96 mm D |
| Enclosure Type | IP20 |
| Environmental Conditions | 80 -50 C |
| EU RoHS Indicator | C |
| Frame | 3RV2/S0 |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 31.59 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.8650 lb |
| Gross Weight per Pack Metric | 0.39 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536304000 |
| Height | 4.0000 in |
| Height [Metric] | 10.1600 cm |
| Length | 4.0500 in |
| Length [Metric] | 10.2870 cm |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Operating Temperature | 60 to -20 °C |
| Phase | 3 |
| Power Rating | 30 kW |
| Returnable | Y |
| Standard | CE / UL / CSA / CCC |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCCC CertifiedCSA CertifiedUL Listed |
| Sub Brand | Sirius |
| Temperature Rating | -20 to 60 °C |
| Type | 3RV2 circuit breaker |
| UNSPSC | 39121601 |
| UPC 11 | 66264392449 |
| UPC 12 | 662643924497 |
| Width | 1.9500 in |
| Width [Metric] | 4.9530 cm |
| Wire Size | 16 to 12 AWG, 14 to 8 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 27 to 32 A |
| Interrupt Rating | 4 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 690 VAC |
| Used as Manual Motor Controller and in Group Installation |
| MSP?s are UL approved as Self Protected Combination Motor Controllers |
| Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| Standard switch capacity |
| (2) 16 to 12 AWG, (2) 14 to 8 AWG |
| - 50 to 80 deg C environmental conditions |
| Class 10 trip |
| 100000 cycles switching |
| MSPs are UL approved as self protected combination motor controllers |
| With transverse auxiliary switch |
