Siemens

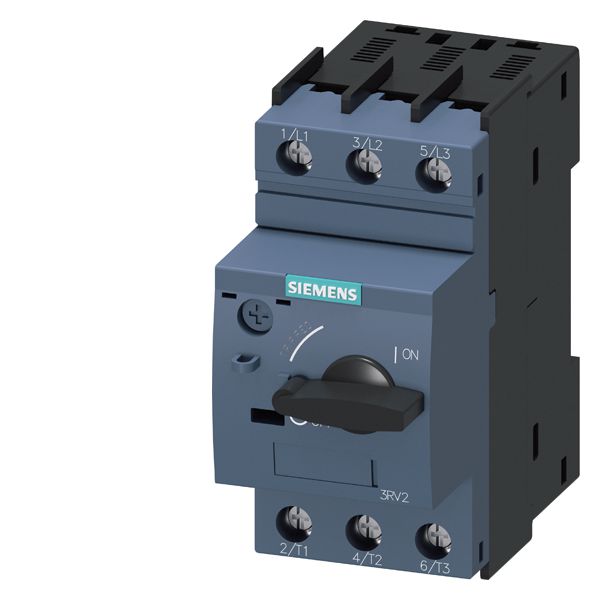

Siemens 3RV2011-1DA10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 3.2 A, 10 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens
Siemens 3RV2011-1DA10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 3.2 A, 10 kA Interrupt, 3 Poles
SKU580591
MFGR #3RV20111DA10
Your Cost: $131.74/ea
List: Siemens 3RV20111DA10 CIRCUIT-BREAKER SZ S00, FOR MOTOR PROTEC
Siemens 3RV20111DA10 CIRCUIT-BREAKER SZ S00, FOR MOTOR PROTEC
Alternate Catalog Number 3RV2011-1DA10 Application Used as Manual Motor Controller and in Group Installation ARRA Compliant C Buy American Compliant C Catalog Number 3RV20111DA10 Connection screw-type terminals Connection Type Screw Country of Origin DE Currency USD Dimensions 97 mm H x 45 mm W x 96 mm D Enclosure Type IP20 Environmental Conditions 80 -50 C EU RoHS Indicator C Frame S00 Frequency Rating 50/60 Hz Gross Volume Per Pack 51.21 Gross Volume UOM in Gross Weight Per Pack 0.7800 lb Gross Weight per Pack Metric 0.35 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536304000 Height 3.8000 in Height [Metric] 9.6520 cm Length 3.5000 in Length [Metric] 8.8900 cm Mounting Type DIN Rail Number Of Poles 3 Operating Temperature 60 to -20 °C Phase 3 Power Rating 2.2 kW Replaced Catalog Number 3RV1021-1DA10 Returnable Y Standard CE / UL / CSA / CCC Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE MarkedCCC MarkedCSA CertifiedUL Listed Sub Brand Sirius Temperature Rating -20 to 60 °C Trip Range 2.2 to 3.2/42 Type Type 3RV2 UNSPSC 39121601 UPC 11 66264392193 UPC 12 662643921939 Width 3.8500 in Width [Metric] 9.7790 cm Wire Size 18 to 14 AWG, 12 AWG Stock Status NORMALLY STOCKED Brand Siemens Manufacturer Siemens Amperage Rating 2.2 to 3.2 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 690 VAC Used as Manual Motor Controller and in Group Installation MSP?s are UL approved as Self Protected Combination Motor Controllers Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 Standard switch capacity (2) 18 to 14 AWG, (2) 12 AWG wire -50 to 80 deg C environmental conditions Class 10 trip 100000 cycles switching MSP™ are UL approved as self protected combination motor controllers 2.2 to 3.2 A thermal overload release, 42 A instantaneous overcurrent release Without auxiliary switch
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RV2011-1DA10 |
| Application | Used as Manual Motor Controller and in Group Installation |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 3RV20111DA10 |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 97 mm H x 45 mm W x 96 mm D |
| Enclosure Type | IP20 |
| Environmental Conditions | 80 -50 C |
| EU RoHS Indicator | C |
| Frame | S00 |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 51.21 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.7800 lb |
| Gross Weight per Pack Metric | 0.35 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536304000 |
| Height | 3.8000 in |
| Height [Metric] | 9.6520 cm |
| Length | 3.5000 in |
| Length [Metric] | 8.8900 cm |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Operating Temperature | 60 to -20 °C |
| Phase | 3 |
| Power Rating | 2.2 kW |
| Replaced Catalog Number | 3RV1021-1DA10 |
| Returnable | Y |
| Standard | CE / UL / CSA / CCC |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE MarkedCCC MarkedCSA CertifiedUL Listed |
| Sub Brand | Sirius |
| Temperature Rating | -20 to 60 °C |
| Trip Range | 2.2 to 3.2/42 |
| Type | Type 3RV2 |
| UNSPSC | 39121601 |
| UPC 11 | 66264392193 |
| UPC 12 | 662643921939 |
| Width | 3.8500 in |
| Width [Metric] | 9.7790 cm |
| Wire Size | 18 to 14 AWG, 12 AWG |
| Stock Status | NORMALLY STOCKED |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 2.2 to 3.2 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 690 VAC |
| Used as Manual Motor Controller and in Group Installation |
| MSP?s are UL approved as Self Protected Combination Motor Controllers |
| Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| Standard switch capacity |
| (2) 18 to 14 AWG, (2) 12 AWG wire |
| -50 to 80 deg C environmental conditions |
| Class 10 trip |
| 100000 cycles switching |
| MSP™ are UL approved as self protected combination motor controllers |
| 2.2 to 3.2 A thermal overload release, 42 A instantaneous overcurrent release |
| Without auxiliary switch |
