Siemens

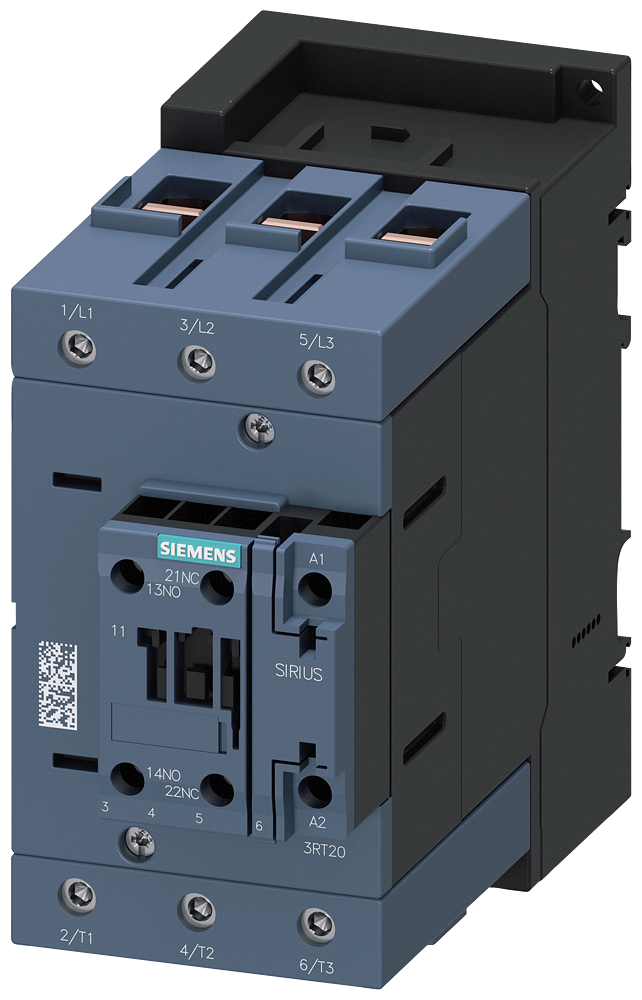

Siemens 3RT20461AK60 CONTACTOR, 45KW

Custom_Product_Images_Illustration

Siemens

SKU967348

MFGR #3RT20461AK60

Your Cost: $557.21/ea

List: ~~$1,345.00~~ /ea

CONTACTOR. AC3 45KW/400V. 1NO+1NC.110VAC 50HZ/120V 60HZ. 3-POLE. 3NO. SIZE S3. SCREW TERMINALS

: Alternate Catalog Number
3RT2046-1AK60
ARRA Compliant
C
Brand
Siemens
Buy American Compliant
C
Catalog Number
3RT20461AK60
Coil Power Rating
22/326 VA
Coil Voltage
110/120 VAC
Contact Configuration
1NO-1NC
Contact Rating
A600/P600
Country of Origin
DE
Currency
USD
Dimensions
140 mm H x 70 mm W x 152 mm D
Enclosure Type
IP00/IP20
EU RoHS Indicator
C
Frequency Rating
50/60 Hz
Gross Volume Per Pack
136.08
Gross Volume UOM
in
Gross Weight Per Pack
3.7400 lb
Gross Weight per Pack Metric
1.70
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536490065
Height
6.7500 in
Height [Metric]
17.1450 cm
Length
6.4000 in
Length [Metric]
16.2560 cm
Manufacturer
Siemens
Maximum Load Current
95 A
Mounting Type
DIN Rail/Snap-On/Threaded
Number of Auxiliary Contacts
2
Number Of Poles
3
Operating Cycles
10000000
Operating Temperature
-25 to 60
Replaced Catalog Number
3RT1046-1AK60
Returnable
Y
Size
S3
Standards
CCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickCE Certified
Stock Status
NORMALLY STOCKED
Terminal Type
Screw
Type
Standard
UNSPSC
39121529
UPC 11
80476636452
UPC 12
804766364525
Wattage
45 kW
Width
3.1500 in
Width [Metric]
8.0010 cm
: 3D Rendering
Catalog
Seller Home Page
Spec Sheet
Spec Sheet
Spec Sheet
Spec Sheet
User Manual
: 326 VA at 50/60 Hz (pick-up), 22 VA at 50/60 Hz (holding) magnet coil at AC

0.36 at 50 Hz/0.4 at 60 Hz (holding), 0.62 at 50 Hz/0.55 at 60 Hz (closing) power factor

Alternate Catalog Number	3RT2046-1AK60
ARRA Compliant	C
Brand	Siemens
Buy American Compliant	C
Catalog Number	3RT20461AK60
Coil Power Rating	22/326 VA
Coil Voltage	110/120 VAC
Contact Configuration	1NO-1NC
Contact Rating	A600/P600
Country of Origin	DE
Currency	USD
Dimensions	140 mm H x 70 mm W x 152 mm D
Enclosure Type	IP00/IP20
EU RoHS Indicator	C
Frequency Rating	50/60 Hz
Gross Volume Per Pack	136.08
Gross Volume UOM	in
Gross Weight Per Pack	3.7400 lb
Gross Weight per Pack Metric	1.70
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536490065
Height	6.7500 in
Height [Metric]	17.1450 cm
Length	6.4000 in
Length [Metric]	16.2560 cm
Manufacturer	Siemens
Maximum Load Current	95 A
Mounting Type	DIN Rail/Snap-On/Threaded
Number of Auxiliary Contacts	2
Number Of Poles	3
Operating Cycles	10000000
Operating Temperature	-25 to 60
Replaced Catalog Number	3RT1046-1AK60
Returnable	Y
Size	S3
Standards	CCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickCE Certified
Stock Status	NORMALLY STOCKED
Terminal Type	Screw
Type	Standard
UNSPSC	39121529
UPC 11	80476636452
UPC 12	804766364525
Wattage	45 kW
Width	3.1500 in
Width [Metric]	8.0010 cm
