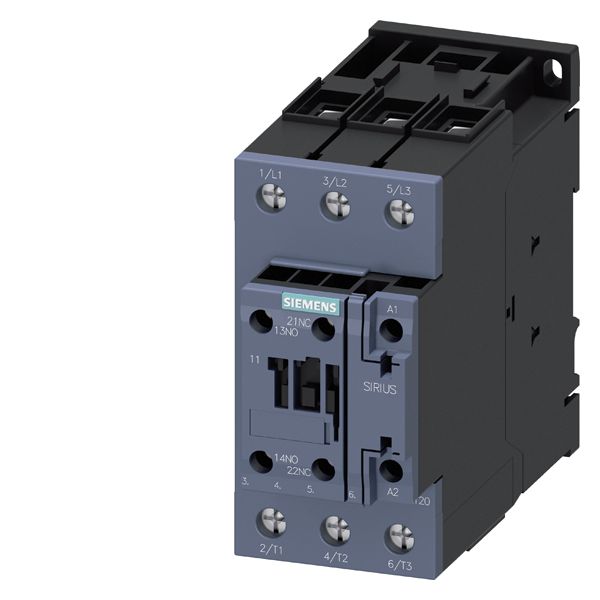

Siemens 3RT20381AK60 CONTACTOR S2 65A 120VAC SCREW 1NO/1NC
SKU958156
MFGR #3RT20381AK60
Your Cost: $352.00/ea
List: SIEMENS 3RT20381AK60 CONTACTOR S2 65A 120VAC SCREW 1NO/1NC
SIEMENS 3RT20381AK60 CONTACTOR S2 65A 120VAC SCREW 1NO/1NC
Alternate Catalog Number 3RT2038-1AK60 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20381AK60 Coil Power Rating 16.5/18.5/188/212 VA Coil Voltage 110/120 VAC Contact Configuration 1NO-1NC Country of Origin DE Currency USD Enclosure Type IP00/IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 183.87 Gross Volume UOM in Gross Weight Per Pack 2.1750 lb Gross Weight per Pack Metric 1.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 5.7000 in Height [Metric] 14.4780 cm Length 5.5000 in Length [Metric] 13.9700 cm Manufacturer Siemens Maximum Load Current 80 A Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Returnable Y Size S2 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL Approved Stock Status NORMALLY STOCKED Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 88762191799 UPC 12 887621917999 Wattage 37 kW Width 2.5500 in Width [Metric] 6.4770 cm 212 VA at 50 Hz/188 VA at 60 Hz (pick-up), 18.5 VA at 50 Hz/16.5 VA at 60 Hz (holding) magnet coil at AC 0.36 at 50 Hz/0.39 at 60 Hz (holding), 0.69 at 50 Hz/0.65 at 60 Hz (closing) power factor Screw and snap-on mounting onto 35 mm standard mounting rail 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2038-1AK60 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20381AK60 |
| Coil Power Rating | 16.5/18.5/188/212 VA |
| Coil Voltage | 110/120 VAC |
| Contact Configuration | 1NO-1NC |
| Country of Origin | DE |
| Currency | USD |
| Enclosure Type | IP00/IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 183.87 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.1750 lb |
| Gross Weight per Pack Metric | 1.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.7000 in |
| Height [Metric] | 14.4780 cm |
| Length | 5.5000 in |
| Length [Metric] | 13.9700 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 80 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Returnable | Y |
| Size | S2 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL Approved |
| Stock Status | NORMALLY STOCKED |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 88762191799 |
| UPC 12 | 887621917999 |
| Wattage | 37 kW |
| Width | 2.5500 in |
| Width [Metric] | 6.4770 cm |
| 212 VA at 50 Hz/188 VA at 60 Hz (pick-up), 18.5 VA at 50 Hz/16.5 VA at 60 Hz (holding) magnet coil at AC |
| 0.36 at 50 Hz/0.39 at 60 Hz (holding), 0.69 at 50 Hz/0.65 at 60 Hz (closing) power factor |
| Screw and snap-on mounting onto 35 mm standard mounting rail |
| 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
