Siemens

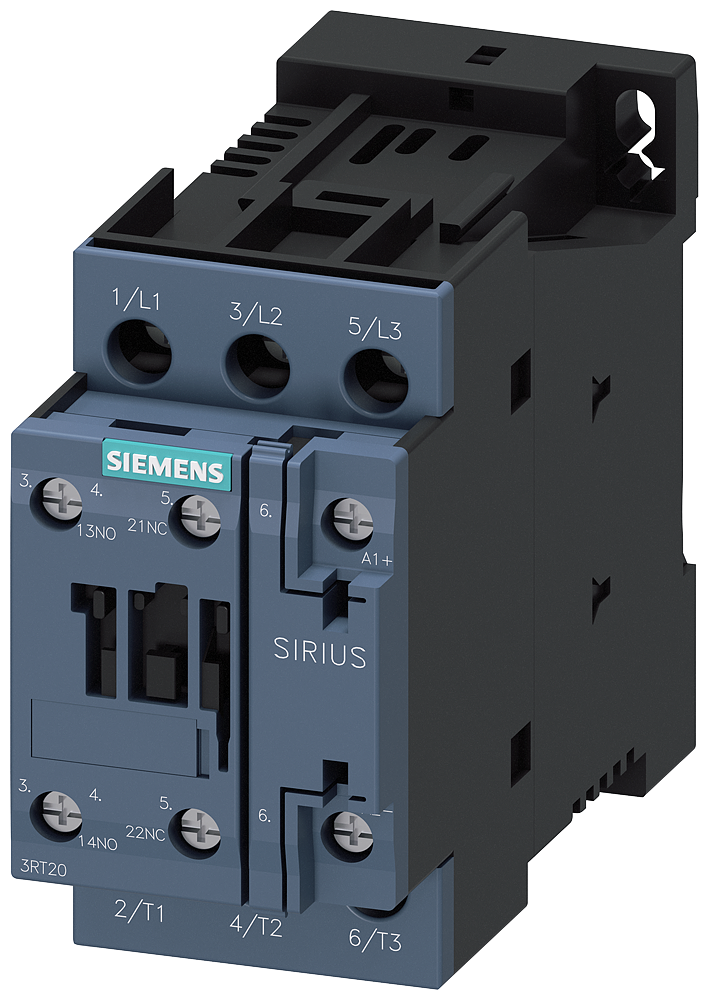

Siemens 3RT20261KB40 CONTACTOR S0 25A 24VDC 1NO/1NC SCRW
Custom_Product_Images_Illustration
Siemens
Siemens 3RT20261KB40 CONTACTOR S0 25A 24VDC 1NO/1NC SCRW
SKU880677
MFGR #3RT20261KB40
Your Cost: $230.80/ea
List: SIEMENS 3RT20261KB40 CONTACTOR S0 25A 24VDC 1NO/1NC SCRW
SIEMENS 3RT20261KB40 CONTACTOR S0 25A 24VDC 1NO/1NC SCRW
Alternate Catalog Number 3RT2026-1KB40 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20261KB40 Coil Power Rating 20 hp Coil Voltage 24 VDC Connection screw-type terminals Contact Configuration 3NO Contact Rating A600/Q600 Contact Type Auxiliary Country of Origin DE Currency USD Dimensions 85 mm H x 45 mm W x 107 mm D Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 97.11 Gross Volume UOM in Gross Weight Per Pack 1.3050 lb Gross Weight per Pack Metric 0.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536410045 Height 3.6000 in Height [Metric] 9.1440 cm Length 8.3000 in Length [Metric] 21.0820 cm Manufacturer Siemens Maximum Load Current 25 A Mounting screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -25 to 60 Phase 3 Replaced Catalog Number 3RT1026-1KB40 Returnable Y Size SZ 0 Stock Status NONSTOCK Sub Brand Sirius Terminal Type Screw Type 3-Phase Non-Reversing UNSPSC 39121529 UPC 11 66264391389 UPC 12 662643913897 Wattage 11 kW Width 3.2500 in Width [Metric] 8.2550 cm Contactors for switching motors Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil Space is provided for them next to a snap-on auxiliary switch block Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring 5 hp at 200/208 VAC, 7-1/2 hp at 220/230 VAC, 15 hp at 460/480 VAC, 20 hp at 575/600 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2026-1KB40 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20261KB40 |
| Coil Power Rating | 20 hp |
| Coil Voltage | 24 VDC |
| Connection | screw-type terminals |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Contact Type | Auxiliary |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 107 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 97.11 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.3050 lb |
| Gross Weight per Pack Metric | 0.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536410045 |
| Height | 3.6000 in |
| Height [Metric] | 9.1440 cm |
| Length | 8.3000 in |
| Length [Metric] | 21.0820 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 25 A |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Replaced Catalog Number | 3RT1026-1KB40 |
| Returnable | Y |
| Size | SZ 0 |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Terminal Type | Screw |
| Type | 3-Phase Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 66264391389 |
| UPC 12 | 662643913897 |
| Wattage | 11 kW |
| Width | 3.2500 in |
| Width [Metric] | 8.2550 cm |
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil |
| Space is provided for them next to a snap-on auxiliary switch block |
| Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| 5 hp at 200/208 VAC, 7-1/2 hp at 220/230 VAC, 15 hp at 460/480 VAC, 20 hp at 575/600 VAC |
