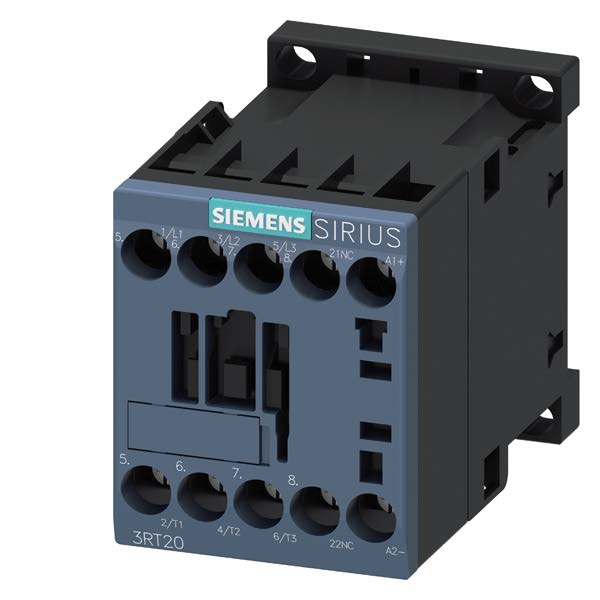

Siemens 3RT20161HB42 COUPLNG RELAY S00 9A 24VDC 1NC SCRW
SKU923055
MFGR #3RT20161HB42
$/ea
SIEMENS 3RT20161HB42 COUPLNG RELAY S00 9A 24VDC 1NC SCRW
SIEMENS 3RT20161HB42 COUPLNG RELAY S00 9A 24VDC 1NC SCRW
Alternate Catalog Number 3RT2016-1HB42 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20161HB42 Coil Power Rating 2.8 W Coil Voltage 24 VDC Contact Configuration 1NC Contact Form 1NC Contact Rating A600/Q600 Country of Origin DE Currency USD Dimensions 58 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 14.87 Gross Volume UOM in Gross Weight Per Pack 0.6200 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 3.0800 in Height [Metric] 7.8232 cm Length 2.4500 in Length [Metric] 6.2230 cm Manufacturer Siemens Maximum Load Current 9 A Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 1 Number Of Poles 3 Operating Cycles 30000000 Operating Temperature -25 to 60 Replaced Catalog Number 3RT1016-1HB42 Returnable Y Series 3RT2 Size S00 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved Stock Status NONSTOCK Temperature Rating -25 to 60 Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 66264390795 UPC 12 662643907957 Wattage 4 kW Width 1.9700 in Width [Metric] 5.0038 cm 2.8 W (closing/holding) magnet coil at DC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2016-1HB42 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20161HB42 |
| Coil Power Rating | 2.8 W |
| Coil Voltage | 24 VDC |
| Contact Configuration | 1NC |
| Contact Form | 1NC |
| Contact Rating | A600/Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 58 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 14.87 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6200 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 3.0800 in |
| Height [Metric] | 7.8232 cm |
| Length | 2.4500 in |
| Length [Metric] | 6.2230 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 9 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 1 |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 |
| Operating Temperature | -25 to 60 |
| Replaced Catalog Number | 3RT1016-1HB42 |
| Returnable | Y |
| Series | 3RT2 |
| Size | S00 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Temperature Rating | -25 to 60 |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264390795 |
| UPC 12 | 662643907957 |
| Wattage | 4 kW |
| Width | 1.9700 in |
| Width [Metric] | 5.0038 cm |
| 2.8 W (closing/holding) magnet coil at DC |
