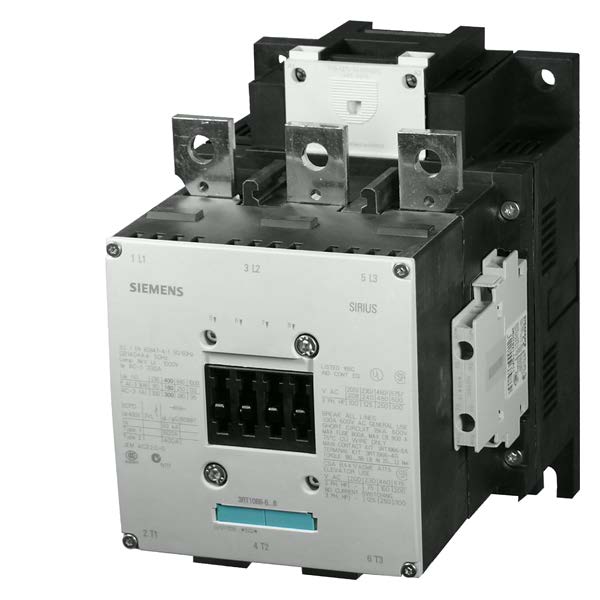

Siemens 3RT1065-6AF36 Standard IEC Contactor 3RT1065-6AF36, 110 VAC/127 VDC Coil, 265 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Siemens 3RT1065-6AF36 Standard IEC Contactor 3RT1065-6AF36, 110 VAC/127 VDC Coil, 265 A Max Load, 3NO, 3 Poles
SKU82804
MFGR #3RT1065-6AF36
Your Cost: $1,388.34/ea
List: SIEMENS 3RT1065-6AF36 225A CONTACTOR
SIEMENS 3RT1065-6AF36 225A CONTACTOR
Alternate Catalog Number 3RT1065-6AF36 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT1065-6AF36 Coil Power Rating 6.7/590 VA, 7.4/650 W Coil Voltage 110 to 127 VAC//VDC Connection screw-type terminals Connection Type Screw Contact Configuration 2NO-2NC Contact Rating A600/Q600 Contact Type Non-Reversing Country of Origin DE Currency USD Dimensions 210 mm H x 145 mm W x 202 mm D Enclosure Type IP00/IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 783.43 Gross Volume UOM in Gross Weight Per Pack 14.5000 lb Gross Weight per Pack Metric 6.58 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 9.3000 in Height [Metric] 23.6220 cm Length 10.8000 in Length [Metric] 27.4320 cm Manufacturer Siemens Maximum Load Current 265 A Mounting Screw fixing Mounting Type Threaded Number of Auxiliary Contacts 4 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Phase 3 Power Factor 1.00 Returnable Y Size S10 Standards RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedRMRS ApprovedDNV-GL Approved Stock Status NORMALLY STOCKED Sub Brand SIRIUS Terminal Type Busbar Type Standard UNSPSC 39121529 UPC 11 75455477102 UPC 12 754554771021 Wattage 132 kW Width 7.8000 in Width [Metric] 19.8120 cm Contactors for switching motors Spring loaded or screw terminals 590 VA at 50 Hz (pick-up), 6.7 VA at 50 Hz (holding) magnet coil at AC, 650 W (closing), 7.4 W (holding) magnet coil at DC 0.9 (closing/holding) power factor 3 phase
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Alternate Catalog Number | 3RT1065-6AF36 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT1065-6AF36 |
| Coil Power Rating | 6.7/590 VA, 7.4/650 W |
| Coil Voltage | 110 to 127 VAC//VDC |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Contact Configuration | 2NO-2NC |
| Contact Rating | A600/Q600 |
| Contact Type | Non-Reversing |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 210 mm H x 145 mm W x 202 mm D |
| Enclosure Type | IP00/IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 783.43 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 14.5000 lb |
| Gross Weight per Pack Metric | 6.58 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 9.3000 in |
| Height [Metric] | 23.6220 cm |
| Length | 10.8000 in |
| Length [Metric] | 27.4320 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 265 A |
| Mounting | Screw fixing |
| Mounting Type | Threaded |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Power Factor | 1.00 |
| Returnable | Y |
| Size | S10 |
| Standards | RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedRMRS ApprovedDNV-GL Approved |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | SIRIUS |
| Terminal Type | Busbar |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 75455477102 |
| UPC 12 | 754554771021 |
| Wattage | 132 kW |
| Width | 7.8000 in |
| Width [Metric] | 19.8120 cm |
| Contactors for switching motors |
| Spring loaded or screw terminals |
| 590 VA at 50 Hz (pick-up), 6.7 VA at 50 Hz (holding) magnet coil at AC, 650 W (closing), 7.4 W (holding) magnet coil at DC |
| 0.9 (closing/holding) power factor |
| 3 phase |
