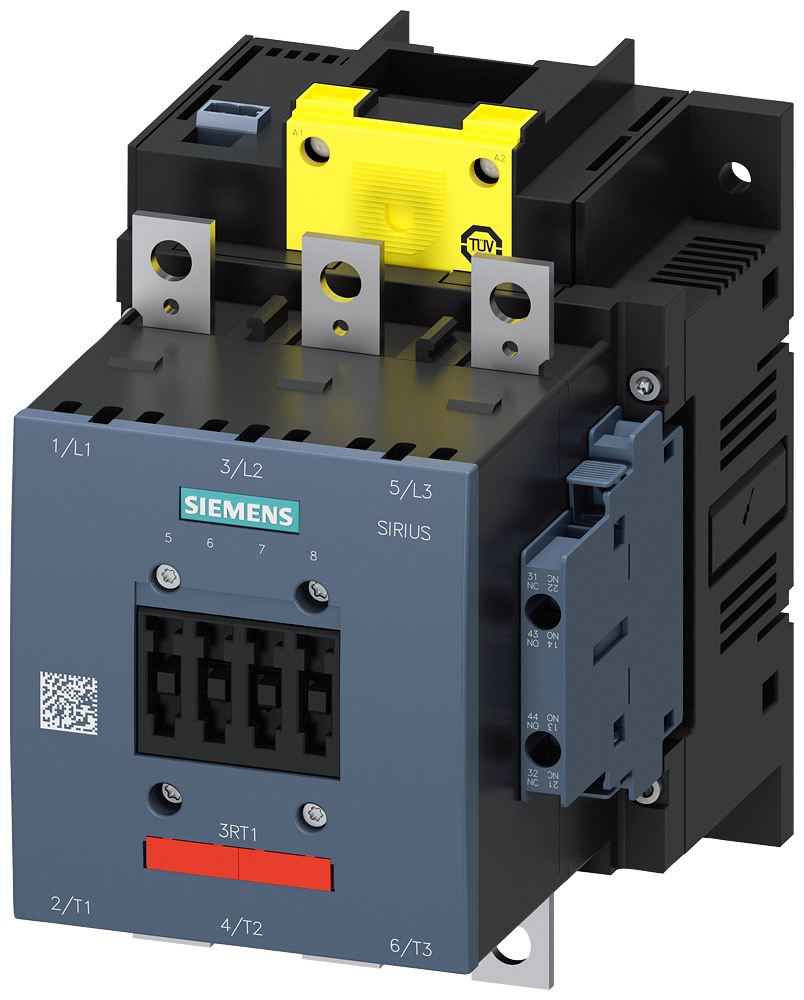

Siemens 3RT10556SP363PA0 150A 400VAC COIL
SKU1032847
MFGR #3RT10556SP363PA0
Your Cost: $1,194.39/ea
List: Power contactor. AC-3 150 A. 75 kW / 400 V Coil AC 50/60 Hz and DC 200-277 V x (0.8-1.1) F-PLC input 24 V DC 3-pole size S6 Auxiliary contacts 2 NO + 2 NC cannot be dissolved (SUVA) Main circuit Busbar Control and auxiliary circuit screw terminal
Power contactor. AC-3 150 A. 75 kW / 400 V Coil AC 50/60 Hz and DC 200-277 V x (0.8-1.1) F-PLC input 24 V DC 3-pole size S6 Auxiliary contacts 2 NO + 2 NC cannot be dissolved (SUVA) Main circuit Busbar Control and auxiliary circuit screw terminal
Alternate Catalog Number 3RT1055-6SP36-3PA0 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT10556SP363PA0 Coil Power Rating 4.4/280 VA, 2.8/320 W Coil Voltage 200 to 277 VAC//VDC Contact Configuration 2NO-2NC Country of Origin DE Currency USD Enclosure Type IP00/IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Weight Per Pack 7.2070 lb Gross Weight per Pack Metric 3.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Manufacturer Siemens Maximum Load Current 150 A Mounting Type Threaded Number of Auxiliary Contacts 4 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Returnable Y Size S6 Standards RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE Certified Stock Status NONSTOCK Terminal Type Busbar Type Standard UNSPSC 39121529 UPC 11 80476666338 UPC 12 804766663383 Wattage 75 kW 280 VA at 50 Hz (pick-up), 4.4 VA at 50 Hz (holding) magnet coil at AC, 320 W (closing), 2.8 W (holding) magnet coil at DC 0.8 at 50 Hz (closing), 0.5 at 50 Hz (holding) power factor
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT1055-6SP36-3PA0 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT10556SP363PA0 |
| Coil Power Rating | 4.4/280 VA, 2.8/320 W |
| Coil Voltage | 200 to 277 VAC//VDC |
| Contact Configuration | 2NO-2NC |
| Country of Origin | DE |
| Currency | USD |
| Enclosure Type | IP00/IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 7.2070 lb |
| Gross Weight per Pack Metric | 3.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Manufacturer | Siemens |
| Maximum Load Current | 150 A |
| Mounting Type | Threaded |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Returnable | Y |
| Size | S6 |
| Standards | RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE Certified |
| Stock Status | NONSTOCK |
| Terminal Type | Busbar |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 80476666338 |
| UPC 12 | 804766663383 |
| Wattage | 75 kW |
| 280 VA at 50 Hz (pick-up), 4.4 VA at 50 Hz (holding) magnet coil at AC, 320 W (closing), 2.8 W (holding) magnet coil at DC |
| 0.8 at 50 Hz (closing), 0.5 at 50 Hz (holding) power factor |
