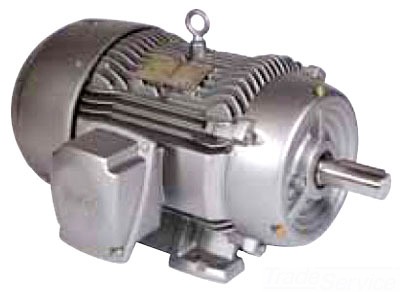

Siemens 1LE23111CB114AA3 MOTOR,3,1800,S
SKU781246
MFGR #1LE23111CB114AA3
Your Cost: $680.25/ea
List: SIEMENS 1LE23111CB114AA3 MOTOR 3 1800 SD100 230/460 182T NPP
SIEMENS 1LE23111CB114AA3 MOTOR 3 1800 SD100 230/460 182T NPP
Amperage Rating 4 A Application Type Severe Duty Motor ARRA Compliant C Bearing Type Ball Buy American Compliant C Catalog Number 1LE23111CB114AA3 Country of Origin MX Currency USD Dimensions 11.1 in H x 16.4 in W Enclosure Type TEFC/IP54/IP55 EU RoHS Indicator C Frequency Rating 60 Hz Gross Weight Per Pack 124.7400 lb Gross Weight per Pack Metric 56.58 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8501524000 Insulation Class Class F Material Cast Iron Mounting Type Footed Number of Speeds 1 Returnable Y Rotation CW/CCW Series 1LE2 Service Factor 1 Speed 1800 rpm Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCSA CertifiedcULus RecognizedEE CertifiedWEEE (2012/19/EU) Temperature Rating -20 to 40 °C Type Type SD100 4-Pole Continuous Duty NEMA Low Voltage Standard UNSPSC 26101112 UPC 11 66264315084 UPC 12 662643150841 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Frame 182T Horsepower 3 hp Phase 3 Torque Rating 8.9 ft-lb Voltage Rating 208 to 230 VAC, 460 VAC NEMA Premium® Efficiency, Squirrel Cage Rotor, Stone Gray Painted, 20:1 Constant Torque, 20:1 Variable Torque Without winding protection Cast iron construction for exceptional structural integrity and corrosion resistance, equipped with integrally cast feet Condensation T-drains provided Each rotor assembly is dynamically balanced for extended bearing life and includes a high strength carbon steel (C1045) shaft for maximum rotor performance Manufactured with premium electrical grade steel laminations and copper electrical magnet wire to reduce losses and improve efficiencies A unique stator core design lowers flux density while increasing cooling capacity Large conductor cross section reduces resistance and lowers stator losses Proprietary inverter rated class F non-hygroscopic insulation system with NEMA class B temperature rise at 1.0SF provides an extra margin of thermal life Varnish system application ensures maximum wire penetration to provide protection from moisture, corrosion and electrical shock Insulation system meets or exceeds NEMA MG1-2006, Part 31 making all motors suitable for operation with adjustable frequency drives A bi-directional, non-sparking fan is locked and keyed to the shaft Its design reduces windage losses, improves air flow, reduces noise and provides dependable cooling Cast iron fan covers are provided on all frame sizes Regreasable, oversized double shielded (143T to 256T)/single shielded (284T to S449T) with cast iron inner caps on both ends of the motor Alemite® grease fittings on the inlets and pipe plugs on the relief ports for ease of routine maintenance All motors are equipped with drive end and opposite drive end shaft V-ring slingers for added bearing protection Provisions for Inpro/Seal® bearing isolators are standard on both ends Specially formulated, high temperature tested, polyurea based grease Oversized cast iron construction that is larger than industry standards, diagonally split, neoprene gasketed and rotatable in 90 deg increments for quick and easy connections Cast iron construction, polycarbonate fan, zinc plated hardware, epoxy enamel paint and stainless steel nameplate resist rust and corrosion
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 4 A |
| Application Type | Severe Duty Motor |
| ARRA Compliant | C |
| Bearing Type | Ball |
| Buy American Compliant | C |
| Catalog Number | 1LE23111CB114AA3 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11.1 in H x 16.4 in W |
| Enclosure Type | TEFC/IP54/IP55 |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 124.7400 lb |
| Gross Weight per Pack Metric | 56.58 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8501524000 |
| Insulation Class | Class F |
| Material | Cast Iron |
| Mounting Type | Footed |
| Number of Speeds | 1 |
| Returnable | Y |
| Rotation | CW/CCW |
| Series | 1LE2 |
| Service Factor | 1 |
| Speed | 1800 rpm |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCSA CertifiedcULus RecognizedEE CertifiedWEEE (2012/19/EU) |
| Temperature Rating | -20 to 40 °C |
| Type | Type SD100 4-Pole Continuous Duty NEMA Low Voltage Standard |
| UNSPSC | 26101112 |
| UPC 11 | 66264315084 |
| UPC 12 | 662643150841 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Frame | 182T |
| Horsepower | 3 hp |
| Phase | 3 |
| Torque Rating | 8.9 ft-lb |
| Voltage Rating | 208 to 230 VAC, 460 VAC |
| NEMA Premium® Efficiency, Squirrel Cage Rotor, Stone Gray Painted, 20:1 Constant Torque, 20:1 Variable Torque |
| Without winding protection |
| Cast iron construction for exceptional structural integrity and corrosion resistance, equipped with integrally cast feet |
| Condensation T-drains provided |
| Each rotor assembly is dynamically balanced for extended bearing life and includes a high strength carbon steel (C1045) shaft for maximum rotor performance |
| Manufactured with premium electrical grade steel laminations and copper electrical magnet wire to reduce losses and improve efficiencies |
| A unique stator core design lowers flux density while increasing cooling capacity |
| Large conductor cross section reduces resistance and lowers stator losses |
| Proprietary inverter rated class F non-hygroscopic insulation system with NEMA class B temperature rise at 1.0SF provides an extra margin of thermal life |
| Varnish system application ensures maximum wire penetration to provide protection from moisture, corrosion and electrical shock |
| Insulation system meets or exceeds NEMA MG1-2006, Part 31 making all motors suitable for operation with adjustable frequency drives |
| A bi-directional, non-sparking fan is locked and keyed to the shaft |
| Its design reduces windage losses, improves air flow, reduces noise and provides dependable cooling |
| Cast iron fan covers are provided on all frame sizes |
| Regreasable, oversized double shielded (143T to 256T)/single shielded (284T to S449T) with cast iron inner caps on both ends of the motor |
| Alemite® grease fittings on the inlets and pipe plugs on the relief ports for ease of routine maintenance |
| All motors are equipped with drive end and opposite drive end shaft V-ring slingers for added bearing protection |
| Provisions for Inpro/Seal® bearing isolators are standard on both ends |
| Specially formulated, high temperature tested, polyurea based grease |
| Oversized cast iron construction that is larger than industry standards, diagonally split, neoprene gasketed and rotatable in 90 deg increments for quick and easy connections |
| Cast iron construction, polycarbonate fan, zinc plated hardware, epoxy enamel paint and stainless steel nameplate resist rust and corrosion |
