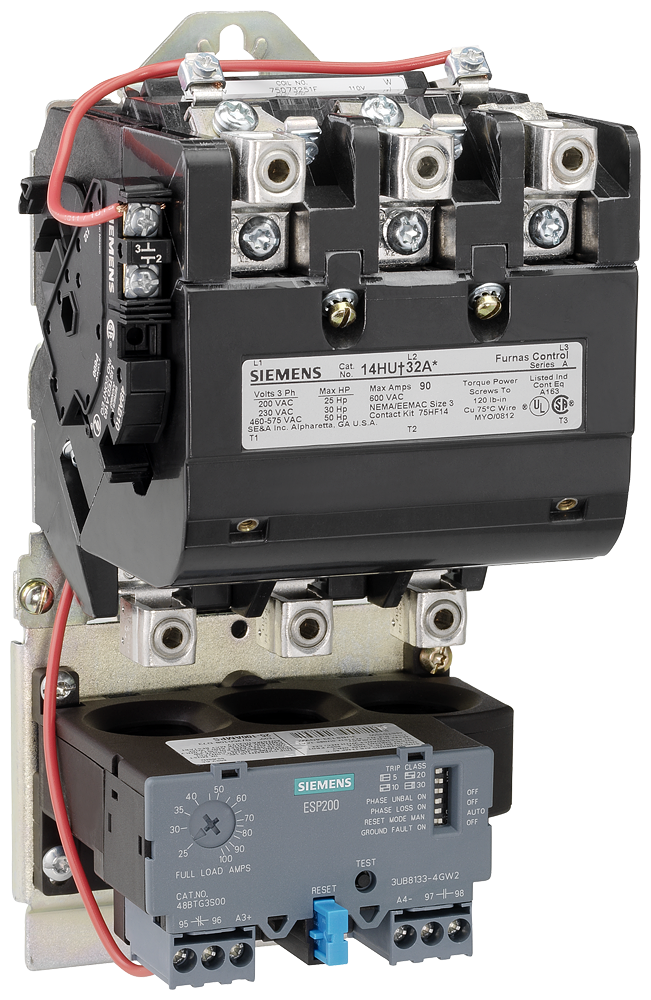

Siemens 14JUH32AF Class 14 Full Voltage Heavy Duty Non-Reversing Motor Starter, 110/120 VAC Coil, 3-Poles
Custom_Product_Images_Illustration
Siemens
Siemens 14JUH32AF Class 14 Full Voltage Heavy Duty Non-Reversing Motor Starter, 110/120 VAC Coil, 3-Poles
SKU546640
MFGR #14JUH32AF
Your Cost: $6,505.00/ea
SIEMENS 14JUH32AF Starter FVNR SZ4 50-200Amps Open 120V
SIEMENS 14JUH32AF Starter FVNR SZ4 50-200Amps Open 120V
Action Non-Reversing/Non-Combination Alternate Catalog Number US2:14JUH32AF Amperage Rating 50 to 200 A ARRA Compliant C Auxiliary Contact Rating 1NO Brand Siemens Buy American Compliant C Catalog Number 14JUH32AF Coil Voltage 110 to 120 VAC Connection Type Threaded Country of Origin MX Currency USD Dimensions 11.06 in H x 6.75 in W x 5.75 in D Enclosure Type NEMA 4/Open EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 795.85 Gross Volume UOM in Gross Weight Per Pack 9.0000 lb Gross Weight per Pack Metric 4.08 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 7.3000 in Height [Metric] 18.5420 cm Length 7.9000 in Length [Metric] 20.0660 cm Manufacturer Siemens Motor Power 40 hp, 50 hp, 100 hp Number Of Poles 3 Operating Cycles 5000000 Cycles Operating Temperature -4 to 104 °F Overload Relay Solid State Reset Type Automatic/Manual Returnable Y Size NEMA 4 Standard UL Listed File E14900, CSA Certified File LR6535 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR6535 Stock Status NONSTOCK Sub Brand SIEMENS Timing 18 to 34 ms On/10 to 12 ms Off Type Class 14 Full Voltage Heavy Duty UNSPSC 39121521 UPC 11 78308795014 UPC 12 783087950146 Voltage Rating 120 VAC Wattage 22 W Width 13.9000 in Width [Metric] 35.3060 cm Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr Rugged industrial design, half sizes for cost and space savings, dual voltage, dual frequency coils Easy coil access, overload test feature, straight thru wiring 40 hp at 200 VAC, 50 hp at 230 VAC, 100 hp at 460/575 VAC Solid state or ambient compensated bimetal overload protection Wide range of accessories
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Non-Reversing/Non-Combination |
| Alternate Catalog Number | US2:14JUH32AF |
| Amperage Rating | 50 to 200 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 1NO |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 14JUH32AF |
| Coil Voltage | 110 to 120 VAC |
| Connection Type | Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11.06 in H x 6.75 in W x 5.75 in D |
| Enclosure Type | NEMA 4/Open |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 795.85 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 9.0000 lb |
| Gross Weight per Pack Metric | 4.08 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 7.3000 in |
| Height [Metric] | 18.5420 cm |
| Length | 7.9000 in |
| Length [Metric] | 20.0660 cm |
| Manufacturer | Siemens |
| Motor Power | 40 hp, 50 hp, 100 hp |
| Number Of Poles | 3 |
| Operating Cycles | 5000000 Cycles |
| Operating Temperature | -4 to 104 °F |
| Overload Relay | Solid State |
| Reset Type | Automatic/Manual |
| Returnable | Y |
| Size | NEMA 4 |
| Standard | UL Listed File E14900, CSA Certified File LR6535 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR6535 |
| Stock Status | NONSTOCK |
| Sub Brand | SIEMENS |
| Timing | 18 to 34 ms On/10 to 12 ms Off |
| Type | Class 14 Full Voltage Heavy Duty |
| UNSPSC | 39121521 |
| UPC 11 | 78308795014 |
| UPC 12 | 783087950146 |
| Voltage Rating | 120 VAC |
| Wattage | 22 W |
| Width | 13.9000 in |
| Width [Metric] | 35.3060 cm |
| Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr |
| Rugged industrial design, half sizes for cost and space savings, dual voltage, dual frequency coils |
| Easy coil access, overload test feature, straight thru wiring |
| 40 hp at 200 VAC, 50 hp at 230 VAC, 100 hp at 460/575 VAC |
| Solid state or ambient compensated bimetal overload protection |
| Wide range of accessories |
