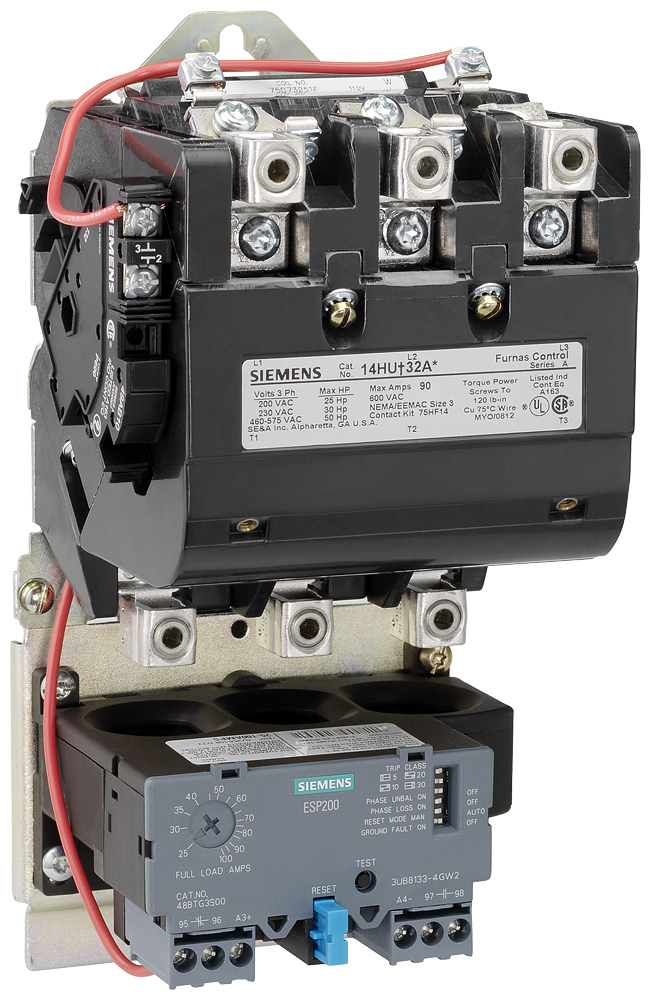

Siemens 14HUG32AF starter,FVNR SZ3,25-1
SKU542190
MFGR #14HUG32AF
Your Cost: $1,394.39/ea
List: SIEMENS 14HUG32AF starter FVNR SZ3 25-100Amps Open 120V
SIEMENS 14HUG32AF starter FVNR SZ3 25-100Amps Open 120V
Alternate Catalog Number US2:14HUG32AF Amperage Rating 25 to 100 A ARRA Compliant C Auxiliary Contact Rating 10 A at 600 VAC, 5 A at 600 VDC Brand Siemens Buy American Compliant C Catalog Number 14HUG32AF Coil Voltage 110/120 VAC Connection Type Box Lug Country of Origin MX Currency USD Dimensions 9.78 in H x 6.75 in W x 5.19 in D Enclosure Type Open EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 833.17 Gross Volume UOM in Gross Weight Per Pack 7.0000 lb Gross Weight per Pack Metric 3.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 7.2000 in Height [Metric] 18.2880 cm Length 13.8000 in Length [Metric] 35.0520 cm Manufacturer Siemens Motor Power 25 hp, 30 hp, 50 hp Number Of Poles 3 Operating Cycles 5000000 Cycles Operating Temperature -4 to 104 °F Overload Relay Solid State Reset Type Automatic/Manual/Remote Returnable Y Size NEMA 3 Standard UL Listed File E14900, CSA Certified File LR6535 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR 6535 Stock Status NONSTOCK Sub Brand SIEMENS Type SZ 3 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing UNSPSC 39121521 UPC 11 78308794871 UPC 12 783087948716 Voltage Rating 575/600 VAC Width 7.9000 in Width [Metric] 20.0660 cm Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr Rugged industrial design Half sizes for cost and space savings Dual voltage and dual frequency coils Easy coil access Overload test feature Straight-thru wiring Gravity dropout Large silver cadmium contacts 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage 25 hp at 200/208 VAC, 30 hp at 220/230 VAC, 50 hp at 460/480 VAC, 575/600 VAC motor power Box lug line side/load side outgoing feeder connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:14HUG32AF |
| Amperage Rating | 25 to 100 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 14HUG32AF |
| Coil Voltage | 110/120 VAC |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 9.78 in H x 6.75 in W x 5.19 in D |
| Enclosure Type | Open |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 833.17 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 7.0000 lb |
| Gross Weight per Pack Metric | 3.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 7.2000 in |
| Height [Metric] | 18.2880 cm |
| Length | 13.8000 in |
| Length [Metric] | 35.0520 cm |
| Manufacturer | Siemens |
| Motor Power | 25 hp, 30 hp, 50 hp |
| Number Of Poles | 3 |
| Operating Cycles | 5000000 Cycles |
| Operating Temperature | -4 to 104 °F |
| Overload Relay | Solid State |
| Reset Type | Automatic/Manual/Remote |
| Returnable | Y |
| Size | NEMA 3 |
| Standard | UL Listed File E14900, CSA Certified File LR6535 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR 6535 |
| Stock Status | NONSTOCK |
| Sub Brand | SIEMENS |
| Type | SZ 3 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing |
| UNSPSC | 39121521 |
| UPC 11 | 78308794871 |
| UPC 12 | 783087948716 |
| Voltage Rating | 575/600 VAC |
| Width | 7.9000 in |
| Width [Metric] | 20.0660 cm |
| Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr |
| Rugged industrial design |
| Half sizes for cost and space savings |
| Dual voltage and dual frequency coils |
| Easy coil access |
| Overload test feature |
| Straight-thru wiring |
| Gravity dropout |
| Large silver cadmium contacts |
| 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage |
| 25 hp at 200/208 VAC, 30 hp at 220/230 VAC, 50 hp at 460/480 VAC, 575/600 VAC motor power |
| Box lug line side/load side outgoing feeder connection |
