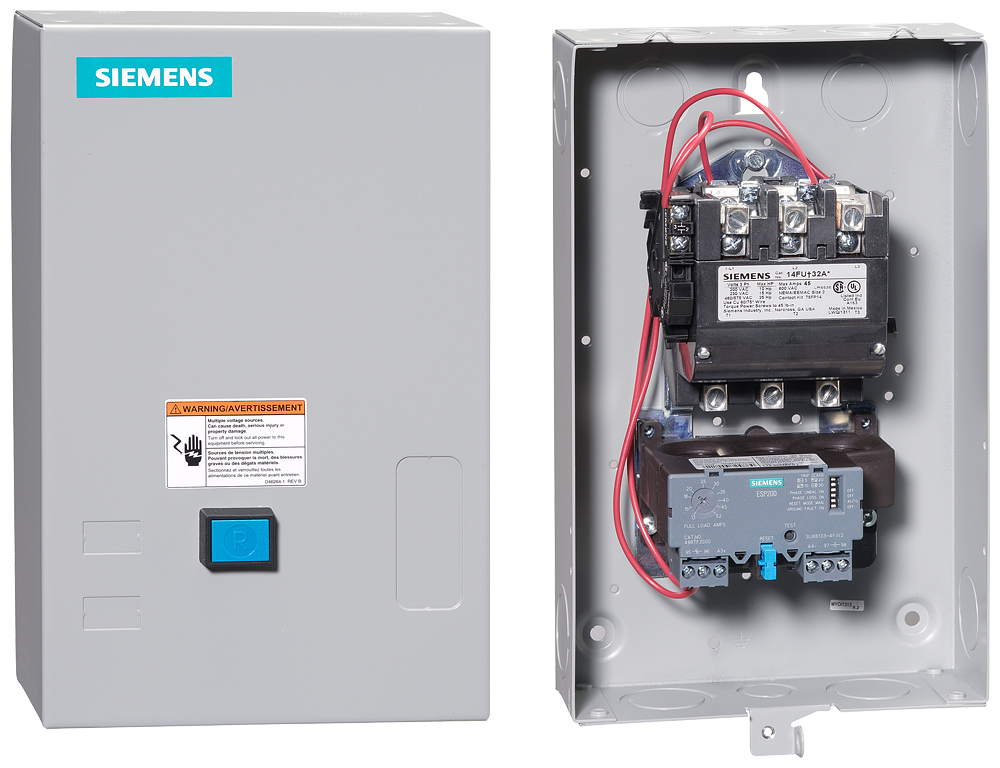

Siemens 14FUF32BF Class 14 General Purpose Non-Reversing Motor Starter, 110/120 VAC Coil, NEMA 1 Enclosure
Custom_Product_Images_Illustration
Siemens 14FUF32BF Class 14 General Purpose Non-Reversing Motor Starter, 110/120 VAC Coil, NEMA 1 Enclosure
SKU950390
MFGR #14FUF32BF
Your Cost: $1,102.59/ea
List: SIEMENS 14FUF32BF Starter FVNR SZ2 13-52Amps N1 120V
SIEMENS 14FUF32BF Starter FVNR SZ2 13-52Amps N1 120V
Alternate Catalog Number US2:14FUF32BF Amperage Rating 13 to 52 A ARRA Compliant C Auxiliary Contact Rating 1NO Buy American Compliant C Catalog Number 14FUF32BF Connection Type Threaded Country of Origin US Currency USD Dimensions 14 in H x 8 in W x 7 in D EU RoHS Indicator C Frequency Rating 60 Hz Gross Weight Per Pack 12.0000 lb Gross Weight per Pack Metric 5.44 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Motor Power 10 hp, 15 hp, 25 hp Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -4 to 104 °F Overload Relay Solid State Phase 3 pH Reset Type Automatic/Manual Returnable Y Size NEMA 2 Standard UL Listed File E14900, CSA Certified File LR6535 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR6535 Sub Brand SIEMENS Timing 3 s UNSPSC 39121521 UPC 11 78308794739 UPC 12 783087947399 Voltage Rating 120 VAC Wattage 8.6 W Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Action Non-Reversing Coil Voltage 110 to 120 VAC Enclosure Type NEMA 2 Type Class 14 Full Voltage Heavy Duty Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr Rugged industrial design, half sizes for cost and space savings, dual voltage, dual frequency coils Easy coil access, overload test feature, straight thru wiring 10 hp at 200/208 VAC, 15 hp at 220/230 VAC, 25 hp at 460/480/575/600 VAC Solid state or ambient compensated bimetal overload protection Wide range of accessories
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:14FUF32BF |
| Amperage Rating | 13 to 52 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 1NO |
| Buy American Compliant | C |
| Catalog Number | 14FUF32BF |
| Connection Type | Threaded |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 14 in H x 8 in W x 7 in D |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 12.0000 lb |
| Gross Weight per Pack Metric | 5.44 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Motor Power | 10 hp, 15 hp, 25 hp |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -4 to 104 °F |
| Overload Relay | Solid State |
| Phase | 3 pH |
| Reset Type | Automatic/Manual |
| Returnable | Y |
| Size | NEMA 2 |
| Standard | UL Listed File E14900, CSA Certified File LR6535 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR6535 |
| Sub Brand | SIEMENS |
| Timing | 3 s |
| UNSPSC | 39121521 |
| UPC 11 | 78308794739 |
| UPC 12 | 783087947399 |
| Voltage Rating | 120 VAC |
| Wattage | 8.6 W |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Action | Non-Reversing |
| Coil Voltage | 110 to 120 VAC |
| Enclosure Type | NEMA 2 |
| Type | Class 14 Full Voltage Heavy Duty |
| Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr |
| Rugged industrial design, half sizes for cost and space savings, dual voltage, dual frequency coils |
| Easy coil access, overload test feature, straight thru wiring |
| 10 hp at 200/208 VAC, 15 hp at 220/230 VAC, 25 hp at 460/480/575/600 VAC |
| Solid state or ambient compensated bimetal overload protection |
| Wide range of accessories |
