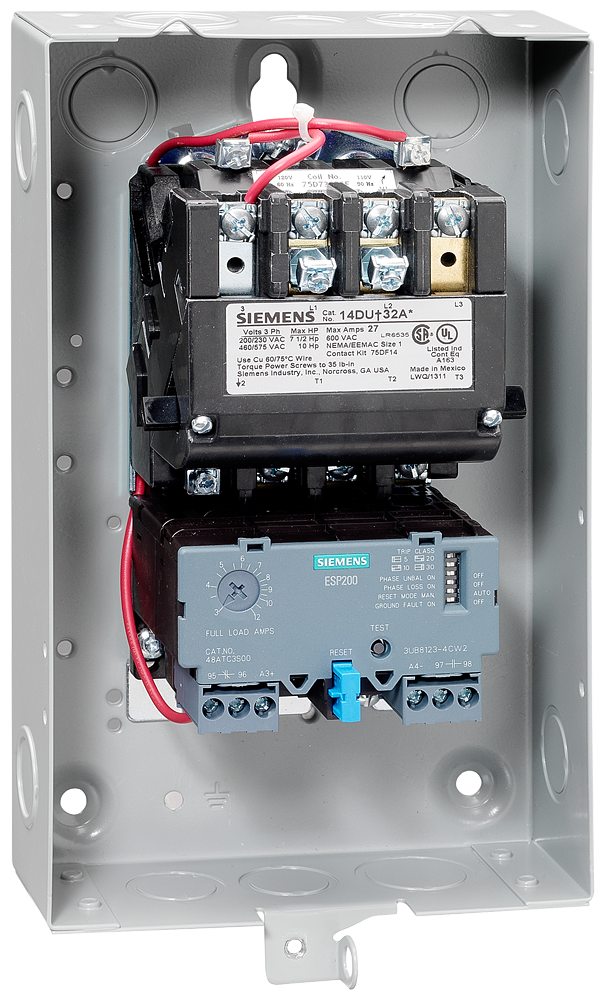

Siemens 14DUE32BC Starter,FVNR SZ1,10-4
SKU813703
MFGR #14DUE32BC
Your Cost: $587.23/ea
List: SIEMENS 14DUE32BC Starter,FVNR SZ1,10-40Amps,N1,240/480V
SIEMENS 14DUE32BC Starter,FVNR SZ1,10-40Amps,N1,240/480V
Alternate Catalog Number US2:14DUE32BC Amperage Rating 10 to 40 A ARRA Compliant C Auxiliary Contact Rating 10 A at 600 VAC, 5 A at 600 VDC Brand Siemens Buy American Compliant C Catalog Number 14DUE32BC Coil Voltage 220 to 240 VAC, 440 to 480 VAC, 190 to 220 VAC, 380 to 440 VAC Connection Type Screw Country of Origin MX Currency USD Dimensions 11 in H x 7 in W x 5 in D Enclosure Type NEMA 1 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Weight Per Pack 8.0000 lb Gross Weight per Pack Metric 3.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Manufacturer Siemens Motor Power 7-1/2 hp Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -4 to 104 °F Overload Relay Solid State Reset Type Automatic/Manual/Remote Returnable Y Size NEMA 1 Standard UL Listed File E14900, CSA Certified File LR6535 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR 6535 Stock Status NONSTOCK Sub Brand SIEMENS Type SZ 1 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing UNSPSC 39121521 UPC 11 78308794587 UPC 12 783087945876 Voltage Rating 220/230 VAC Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr Rugged industrial design Half sizes for cost and space savings Dual voltage and dual frequency coils Easy coil access Overload test feature Straight-thru wiring Gravity dropout Large silver cadmium contacts 220 to 240 VAC, 440 to 480 VAC at 60 Hz, 190 to 220 VAC, 380 to 440 VAC at 50 Hz coil voltage 7-1/2 hp at 200/208 VAC, 220/230 VAC motor power Screw terminal lug line side/load side outgoing feeder connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:14DUE32BC |
| Amperage Rating | 10 to 40 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 14DUE32BC |
| Coil Voltage | 220 to 240 VAC, 440 to 480 VAC, 190 to 220 VAC, 380 to 440 VAC |
| Connection Type | Screw |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11 in H x 7 in W x 5 in D |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 8.0000 lb |
| Gross Weight per Pack Metric | 3.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Manufacturer | Siemens |
| Motor Power | 7-1/2 hp |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -4 to 104 °F |
| Overload Relay | Solid State |
| Reset Type | Automatic/Manual/Remote |
| Returnable | Y |
| Size | NEMA 1 |
| Standard | UL Listed File E14900, CSA Certified File LR6535 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR 6535 |
| Stock Status | NONSTOCK |
| Sub Brand | SIEMENS |
| Type | SZ 1 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing |
| UNSPSC | 39121521 |
| UPC 11 | 78308794587 |
| UPC 12 | 783087945876 |
| Voltage Rating | 220/230 VAC |
| Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr |
| Rugged industrial design |
| Half sizes for cost and space savings |
| Dual voltage and dual frequency coils |
| Easy coil access |
| Overload test feature |
| Straight-thru wiring |
| Gravity dropout |
| Large silver cadmium contacts |
| 220 to 240 VAC, 440 to 480 VAC at 60 Hz, 190 to 220 VAC, 380 to 440 VAC at 50 Hz coil voltage |
| 7-1/2 hp at 200/208 VAC, 220/230 VAC motor power |
| Screw terminal lug line side/load side outgoing feeder connection |
