Siemens

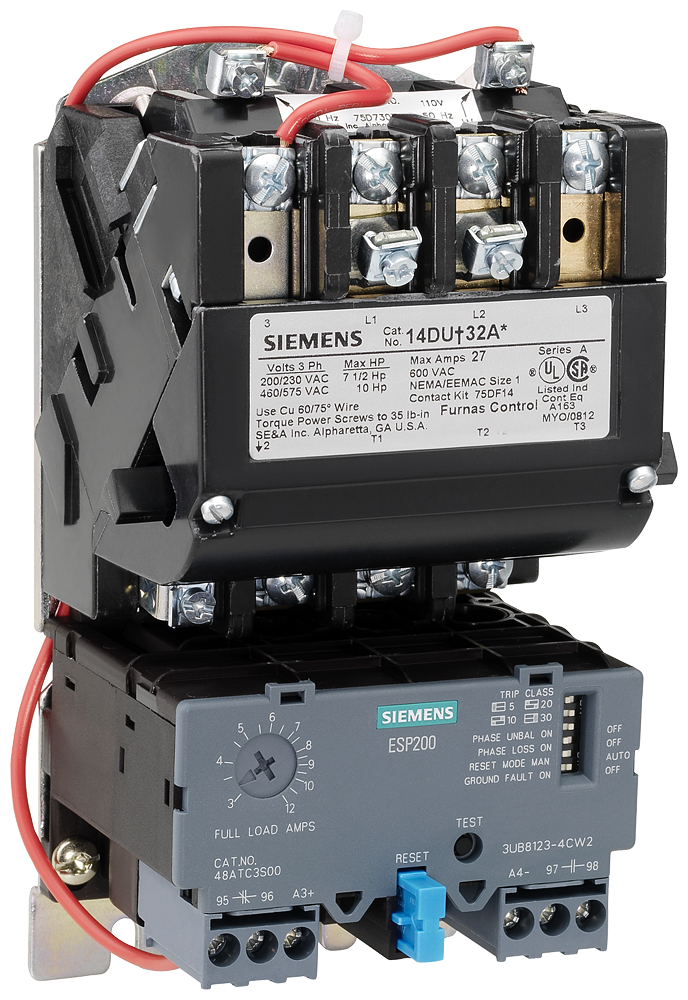

Siemens 14DUC32AF Starter,FVNR SZ1,3-12
Custom_Product_Images_Illustration
Siemens
Siemens 14DUC32AF Starter,FVNR SZ1,3-12
SKU490011
MFGR #14DUC32AF
Your Cost: $540.05/ea
List: SIEMENS 14DUC32AF 3-12A 120V STR
SIEMENS 14DUC32AF 3-12A 120V STR
Alternate Catalog Number US2:14DUC32AF Amperage Rating 3 to 12 A ARRA Compliant C Auxiliary Contact Rating 10 A at 600 VAC, 5 A at 600 VDC Brand Siemens Buy American Compliant C Catalog Number 14DUC32AF Coil Voltage 110/120 VAC Connection Type Screw Country of Origin MX Currency USD Dimensions 7.44 in H x 5.75 in W x 3.75 in D Enclosure Type Open EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 454.11 Gross Volume UOM in Gross Weight Per Pack 3.0000 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 5.8500 in Height [Metric] 14.8590 cm Length 7.5000 in Length [Metric] 19.0500 cm Manufacturer Siemens Motor Power 2 hp, 5 hp Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -4 to 104 °F Overload Relay Solid State Reset Type Automatic/Manual/Remote Returnable Y Size NEMA 1 Standard UL Listed File E14900, CSA Certified File LR6535 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR 6535 Stock Status NONSTOCK Sub Brand SIEMENS Type SZ 1 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing UNSPSC 39121521 UPC 11 78308781780 UPC 12 783087817807 Voltage Rating 575/600 VAC Width 10.3500 in Width [Metric] 26.2890 cm Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr Rugged industrial design Half sizes for cost and space savings Dual voltage and dual frequency coils Easy coil access Overload test feature Straight-thru wiring Gravity dropout Large silver cadmium contacts 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage 2 hp at 200/208 VAC, 220/230 VAC, 5 hp at 460/480 VAC, 575/600 VAC motor power Screw terminal lug line side/load side outgoing feeder connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:14DUC32AF |
| Amperage Rating | 3 to 12 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 14DUC32AF |
| Coil Voltage | 110/120 VAC |
| Connection Type | Screw |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.44 in H x 5.75 in W x 3.75 in D |
| Enclosure Type | Open |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 454.11 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.0000 lb |
| Gross Weight per Pack Metric | 1.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 5.8500 in |
| Height [Metric] | 14.8590 cm |
| Length | 7.5000 in |
| Length [Metric] | 19.0500 cm |
| Manufacturer | Siemens |
| Motor Power | 2 hp, 5 hp |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -4 to 104 °F |
| Overload Relay | Solid State |
| Reset Type | Automatic/Manual/Remote |
| Returnable | Y |
| Size | NEMA 1 |
| Standard | UL Listed File E14900, CSA Certified File LR6535 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR 6535 |
| Stock Status | NONSTOCK |
| Sub Brand | SIEMENS |
| Type | SZ 1 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing |
| UNSPSC | 39121521 |
| UPC 11 | 78308781780 |
| UPC 12 | 783087817807 |
| Voltage Rating | 575/600 VAC |
| Width | 10.3500 in |
| Width [Metric] | 26.2890 cm |
| Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr |
| Rugged industrial design |
| Half sizes for cost and space savings |
| Dual voltage and dual frequency coils |
| Easy coil access |
| Overload test feature |
| Straight-thru wiring |
| Gravity dropout |
| Large silver cadmium contacts |
| 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage |
| 2 hp at 200/208 VAC, 220/230 VAC, 5 hp at 460/480 VAC, 575/600 VAC motor power |
| Screw terminal lug line side/load side outgoing feeder connection |
