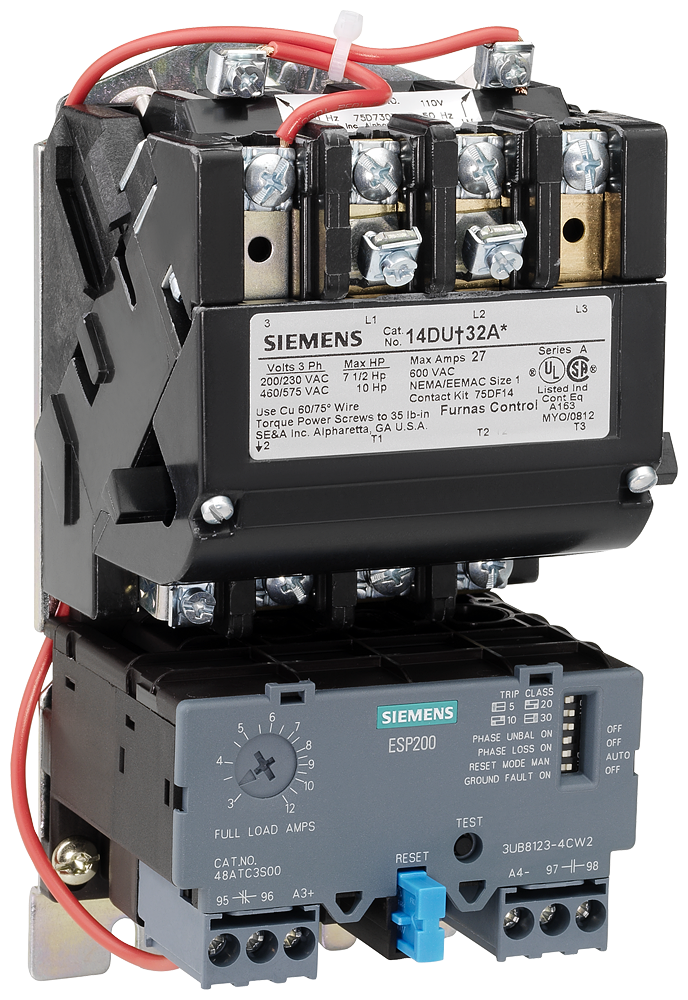

Siemens 14DUC32AA Class 14 Full Voltage Non-Reversing Motor Starter, 110 to 120/220 to 240 VAC Coil, 3-Poles
Custom_Product_Images_Illustration
Siemens 14DUC32AA Class 14 Full Voltage Non-Reversing Motor Starter, 110 to 120/220 to 240 VAC Coil, 3-Poles
SKU575481
MFGR #14DUC32AA
Your Cost: $405.12/ea
List: SIEMENS 14DUC32AA Starter FVNR SZ1 3-12Amps Open 120/240V
SIEMENS 14DUC32AA Starter FVNR SZ1 3-12Amps Open 120/240V
Action Non-Reversing Alternate Catalog Number US2:14DUC32AA Amperage Rating 27 A Application Single phase and polyphase motors ARRA Compliant C Auxiliary Contact Rating 1NO Brand Siemens Buy American Compliant C Catalog Number 14DUC32AA Coil Voltage 110 to 120/220 to 240 VAC Connection Screw Connection Type Screw Country of Origin MX Currency USD Dimensions 7.44 in H x 5.75 in W x 3.75 in D Enclosure Type NEMA 1/Open EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 352.80 Gross Volume UOM in Gross Weight Per Pack 3.0000 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 5.7000 in Height [Metric] 14.4780 cm Length 10.1000 in Length [Metric] 25.6540 cm Manufacturer Siemens Motor Power 5 hp Mounting Surface Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -4 to 104 °F Overload Relay Solid State Phase 3 pH Power Supply 208/230/460/575vac Reset Type Automatic/Manual/Remote Returnable Y Setting 12 A Size 1 Standard UL E14900, cUL, CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcUL ListedUL File No. E14900CSA Certified Stock Status NONSTOCK Sub Brand Class 14 Timing 19 to 29 ms On/10 to 24 ms Off Type Class 14 Full Voltage UNSPSC 39121521 UPC 11 78308781779 UPC 12 783087817791 Voltage Rating 600 VAC Wattage 8.6 W Width 8.2000 in Width [Metric] 20.8280 cm Single phase and polyphase motors ESP 200 SS Overload, Motor Match Half Sizes, Dual Coils, ESP 200 SS overload, motor match half sizes, dual coils 208/230/460/575 VAC power supply
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Non-Reversing |
| Alternate Catalog Number | US2:14DUC32AA |
| Amperage Rating | 27 A |
| Application | Single phase and polyphase motors |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 1NO |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 14DUC32AA |
| Coil Voltage | 110 to 120/220 to 240 VAC |
| Connection | Screw |
| Connection Type | Screw |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.44 in H x 5.75 in W x 3.75 in D |
| Enclosure Type | NEMA 1/Open |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 352.80 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.0000 lb |
| Gross Weight per Pack Metric | 1.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 5.7000 in |
| Height [Metric] | 14.4780 cm |
| Length | 10.1000 in |
| Length [Metric] | 25.6540 cm |
| Manufacturer | Siemens |
| Motor Power | 5 hp |
| Mounting | Surface |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -4 to 104 °F |
| Overload Relay | Solid State |
| Phase | 3 pH |
| Power Supply | 208/230/460/575vac |
| Reset Type | Automatic/Manual/Remote |
| Returnable | Y |
| Setting | 12 A |
| Size | 1 |
| Standard | UL E14900, cUL, CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcUL ListedUL File No. E14900CSA Certified |
| Stock Status | NONSTOCK |
| Sub Brand | Class 14 |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Type | Class 14 Full Voltage |
| UNSPSC | 39121521 |
| UPC 11 | 78308781779 |
| UPC 12 | 783087817791 |
| Voltage Rating | 600 VAC |
| Wattage | 8.6 W |
| Width | 8.2000 in |
| Width [Metric] | 20.8280 cm |
| Single phase and polyphase motors |
| ESP 200 SS Overload, Motor Match Half Sizes, Dual Coils, |
| ESP 200 SS overload, motor match half sizes, dual coils |
| 208/230/460/575 VAC power supply |
