Siemens

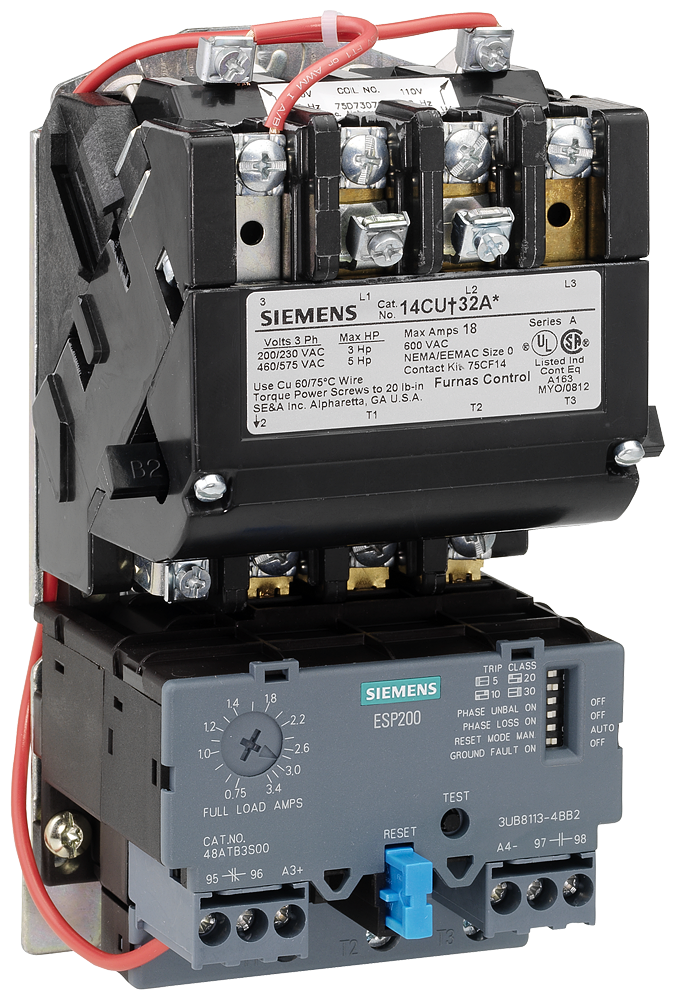

Siemens 14CUD32AC Starter,FVNR SZ0,5.5-
Custom_Product_Images_Illustration
Siemens
Siemens 14CUD32AC Starter,FVNR SZ0,5.5-
SKU900667
MFGR #14CUD32AC
Your Cost: $486.23/ea
List: SIEMENS 14CUD32AC Starter FVNR SZ0 5.5-22Amps Open 240/480
SIEMENS 14CUD32AC Starter FVNR SZ0 5.5-22Amps Open 240/480
Alternate Catalog Number US2:14CUD32AC Amperage Rating 5.5 to 22 A ARRA Compliant C Auxiliary Contact Rating 10 A at 600 VAC, 5 A at 600 VDC Buy American Compliant C Catalog Number 14CUD32AC Connection Type Screw Country of Origin MX Currency USD Dimensions 7.44 in H x 5.75 in W x 3.75 in D EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 817.23 Gross Volume UOM in Gross Weight Per Pack 3.0000 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 5.9500 in Height [Metric] 15.1130 cm Length 16.7500 in Length [Metric] 42.5450 cm Motor Power 3 hp Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -4 to 104 °F Overload Relay Solid State Reset Type Automatic/Manual/Remote Returnable Y Size NEMA 0 Standard UL Listed File E14900, CSA Certified File LR6535 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR 6535 Sub Brand Siemens UNSPSC 39121521 UPC 11 78308794200 UPC 12 783087942004 Voltage Rating 220/230 VAC Width 8.2000 in Width [Metric] 20.8280 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Coil Voltage 220 to 240 VAC, 440 to 480 VAC, 190 to 220 VAC, 380 to 440 VAC Enclosure Type Open Type SZ 0 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr Rugged industrial design Half sizes for cost and space savings Dual voltage and dual frequency coils Easy coil access Overload test feature Straight-thru wiring Gravity dropout Large silver cadmium contacts 220 to 240 VAC, 440 to 480 VAC at 60 Hz, 190 to 220 VAC, 380 to 440 VAC at 50 Hz coil voltage 3 hp at 200/208 VAC, 220/230 VAC motor power Screw terminal lug line side/load side outgoing feeder connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:14CUD32AC |
| Amperage Rating | 5.5 to 22 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Buy American Compliant | C |
| Catalog Number | 14CUD32AC |
| Connection Type | Screw |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.44 in H x 5.75 in W x 3.75 in D |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 817.23 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.0000 lb |
| Gross Weight per Pack Metric | 1.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 5.9500 in |
| Height [Metric] | 15.1130 cm |
| Length | 16.7500 in |
| Length [Metric] | 42.5450 cm |
| Motor Power | 3 hp |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -4 to 104 °F |
| Overload Relay | Solid State |
| Reset Type | Automatic/Manual/Remote |
| Returnable | Y |
| Size | NEMA 0 |
| Standard | UL Listed File E14900, CSA Certified File LR6535 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14900CSA File No. LR 6535 |
| Sub Brand | Siemens |
| UNSPSC | 39121521 |
| UPC 11 | 78308794200 |
| UPC 12 | 783087942004 |
| Voltage Rating | 220/230 VAC |
| Width | 8.2000 in |
| Width [Metric] | 20.8280 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Coil Voltage | 220 to 240 VAC, 440 to 480 VAC, 190 to 220 VAC, 380 to 440 VAC |
| Enclosure Type | Open |
| Type | SZ 0 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing |
| Features: Rugged industrial design, Half sizes for cost and space savings, Dual voltage, dual frequency coils, Solid state or ambient compensated bimetal overload protection, Wide range of accessories, Easy coil access, Overload test feature, Straight thr |
| Rugged industrial design |
| Half sizes for cost and space savings |
| Dual voltage and dual frequency coils |
| Easy coil access |
| Overload test feature |
| Straight-thru wiring |
| Gravity dropout |
| Large silver cadmium contacts |
| 220 to 240 VAC, 440 to 480 VAC at 60 Hz, 190 to 220 VAC, 380 to 440 VAC at 50 Hz coil voltage |
| 3 hp at 200/208 VAC, 220/230 VAC motor power |
| Screw terminal lug line side/load side outgoing feeder connection |
