Shrink-Kon®
Shrink-Kon® MSC20 Motor Stub Splice Insulator, 600 VAC, 1-1/2 in Bolt, 2 to 2/0 AWG Wire, Neoprene Elastomer
Custom_Product_Images_Illustration
Shrink-Kon®
Shrink-Kon® MSC20 Motor Stub Splice Insulator, 600 VAC, 1-1/2 in Bolt, 2 to 2/0 AWG Wire, Neoprene Elastomer
SKU36456
MFGR #MSC20
Your Cost: $38.7461/ea($3,874.61 / c)

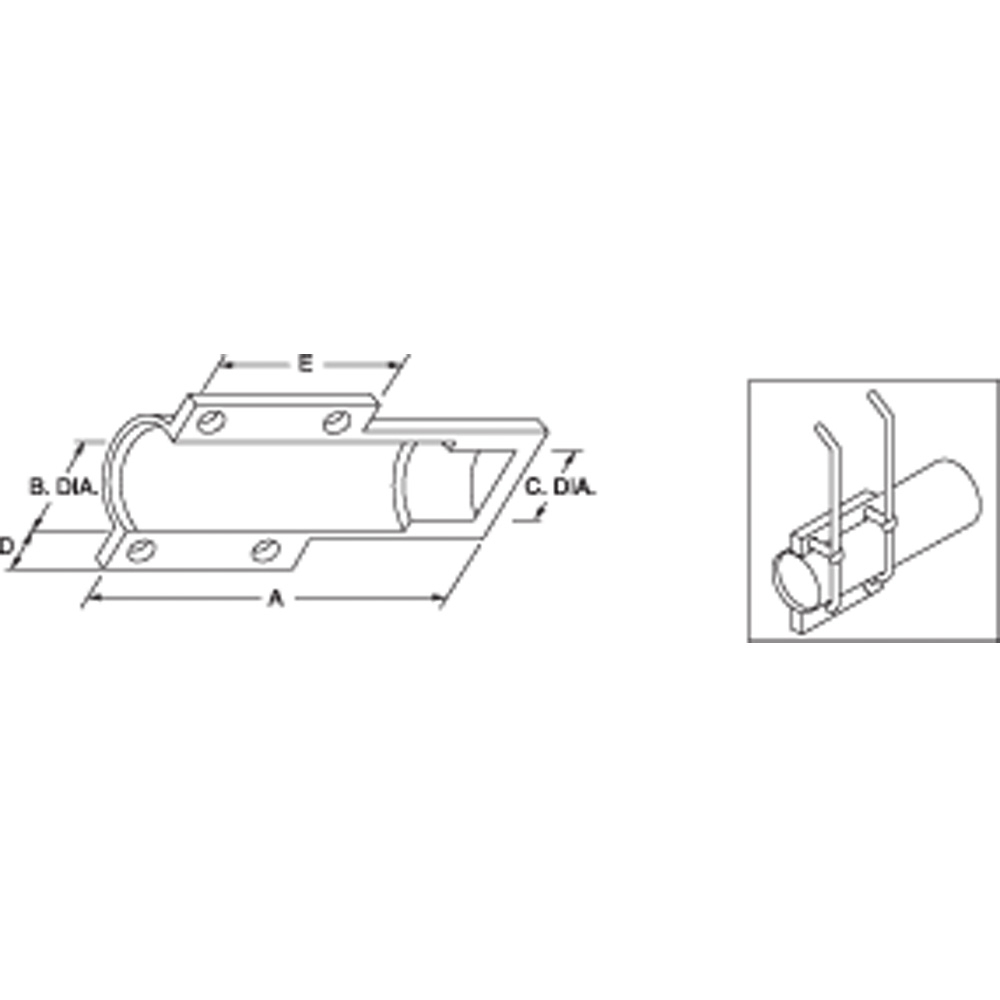

This innovative product has been designed to insulate motor stub splices quickly, easily, and dependably. It consists of a boot-type insulator with integral TY-RAP® cable ties. To install, simply position the insulator over the bolted splice and tighten the cable ties. That's all there is to it. It produces uniform, high-quality installations every time in about 30 seconds. The completed installation is immediately ready for inspection and use. If required, the insulator can be easily removed. Simply snip the cable ties and slide the insulator off the splice. It leaves no sticky residue.
This innovative product has been designed to insulate motor stub splices quickly, easily, and dependably. It consists of a boot-type insulator with integral TY-RAP® cable ties. To install, simply position the insulator over the bolted splice and tighten the cable ties. That's all there is to it. It produces uniform, high-quality installations every time in about 30 seconds. The completed installation is immediately ready for inspection and use. If required, the insulator can be easily removed. Simply snip the cable ties and slide the insulator off the splice. It leaves no sticky residue.
Alternate Catalog Number 7TAA017430R0001 Application Insulate motor stub splices quickly and dependably. ARRA Compliant C Buy American Compliant C Catalog Number MSC20 Color Black Country of Origin CN Currency USD Dimensions 1.385 in Dia x 4.25 in L EU RoHS Indicator C Gross Volume Per Pack 0.06 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8546900000 Height 8.25 in Height [Metric] 20.9550 cm Item Group 0C Item Group 2 0CW Length 4.25 in Length [Metric] 10.7950 cm Returnable A Standard UL E9809 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E9809CSA Certified UNSPSC 39121721 UPC 11 78621081770 UPC 12 786210817705 Width 2.75 in Width [Metric] 6.9850 cm Stock Status NONSTOCK Brand Shrink-Kon® Manufacturer Thomas & Betts Bolt Length 1-1/2 in Material Neoprene Elastomer Type Splice Insulators and Insulating Covers Voltage Rating 600 VAC Wire Size 2 to 2/0 AWG Insulate motor stub splices quickly and dependably. Re-enterable motor stub insulator. Re-enterable motor stub insulator Easy installation No special tools required UL 94 V-1 flammability rated 90 deg C temperature, nylon strap material Modified neoprene elastomer
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 7TAA017430R0001 |
| Application | Insulate motor stub splices quickly and dependably. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | MSC20 |
| Color | Black |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 1.385 in Dia x 4.25 in L |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 0.06 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8546900000 |
| Height | 8.25 in |
| Height [Metric] | 20.9550 cm |
| Item Group | 0C |
| Item Group 2 | 0CW |
| Length | 4.25 in |
| Length [Metric] | 10.7950 cm |
| Returnable | A |
| Standard | UL E9809 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E9809CSA Certified |
| UNSPSC | 39121721 |
| UPC 11 | 78621081770 |
| UPC 12 | 786210817705 |
| Width | 2.75 in |
| Width [Metric] | 6.9850 cm |
| Stock Status | NONSTOCK |
| Brand | Shrink-Kon® |
| Manufacturer | Thomas & Betts |
| Bolt Length | 1-1/2 in |
| Material | Neoprene Elastomer |
| Type | Splice Insulators and Insulating Covers |
| Voltage Rating | 600 VAC |
| Wire Size | 2 to 2/0 AWG |
| Insulate motor stub splices quickly and dependably. |
| Re-enterable motor stub insulator. |
| Re-enterable motor stub insulator |
| Easy installation |
| No special tools required |
| UL 94 V-1 flammability rated |
| 90 deg C temperature, nylon strap material |
| Modified neoprene elastomer |
