MORSE®

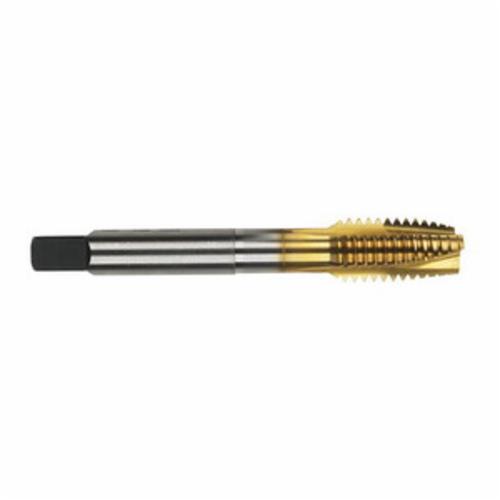

ShearTap™ 94611 2091G Oversized Spiral Flute Tap, Imperial, 45359, UNF, 3 Flutes, H11 Class of Fit, Right Hand, Semi-Bottoming Chamfer, HSS, TiN Coated
MORSE®
ShearTap™ 94611 2091G Oversized Spiral Flute Tap, Imperial, 45359, UNF, 3 Flutes, H11 Class of Fit, Right Hand, Semi-Bottoming Chamfer, HSS, TiN Coated
SKU1056129
MFGR #94611
Your Cost: $40.49/ea
List: ShearTap™ Spiral Flute Tap, Oversized, Series: 2091G, Measurement System: Imperial, 3/8-24, UNF, Semi-Bottoming Chamfer, 3 Flutes, HSS, TiN Coated, Class of Fit: H11, Right Hand Cutting, 0.55 in Thread Length, 2.94 in Overall Length
ShearTap™ Spiral Flute Tap, Oversized, Series: 2091G, Measurement System: Imperial, 3/8-24, UNF, Semi-Bottoming Chamfer, 3 Flutes, HSS, TiN Coated, Class of Fit: H11, Right Hand Cutting, 0.55 in Thread Length, 2.94 in Overall Length
Catalog Number 94611 Class of Fit H11 Country of Origin US Finish|Coating TiN Coated Gross Weight Per Pack 0.0500 lb Measurement System Imperial Overall Length 2.94 in Series 2091G Standards ISO 9001:2008 Thread Length 0.55 in Thread Standard UNF Type Oversized UPC 11 68612594611 UPC 12 68612594611 Stock Status NONSTOCK Brand MORSE® Manufacturer Morse Cutting Tools Chamfer Type Semi-Bottoming Cutting Direction Right Hand Flute Direction Right Hand Material HSS Material Application Steels and Stainless Steels Number of Flutes 3 Thread Limit H11 Thread Size 3/8-24 TiN coating increases hardness and lubricity for improved thread quality, higher speeds and longer tool life Primarily designed for tapping through holes The spiral flutes draw the chips out of the hole CNC reduced neck design Oversize taps are mainly used for parts that will be plated or heat treated after tapping Also used in materials that tend to shrink after tapping Semi-bottoming style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over a greater number of teeth
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 94611 |
| Class of Fit | H11 |
| Country of Origin | US |
| Finish|Coating | TiN Coated |
| Gross Weight Per Pack | 0.0500 lb |
| Measurement System | Imperial |
| Overall Length | 2.94 in |
| Series | 2091G |
| Standards | ISO 9001:2008 |
| Thread Length | 0.55 in |
| Thread Standard | UNF |
| Type | Oversized |
| UPC 11 | 68612594611 |
| UPC 12 | 68612594611 |
| Stock Status | NONSTOCK |
| Brand | MORSE® |
| Manufacturer | Morse Cutting Tools |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material | HSS |
| Material Application | Steels and Stainless Steels |
| Number of Flutes | 3 |
| Thread Limit | H11 |
| Thread Size | 3/8-24 |
| TiN coating increases hardness and lubricity for improved thread quality, higher speeds and longer tool life |
| Primarily designed for tapping through holes |
| The spiral flutes draw the chips out of the hole |
| CNC reduced neck design |
| Oversize taps are mainly used for parts that will be plated or heat treated after tapping |
| Also used in materials that tend to shrink after tapping |
| Semi-bottoming style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over a greater number of teeth |
