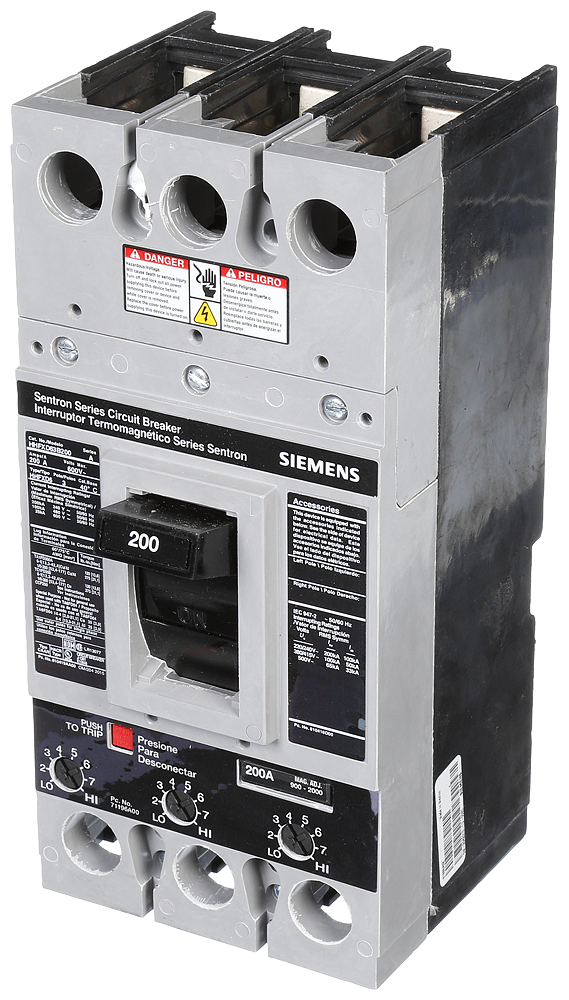

Sentron™ Speedfax™ VL HHFXD63B200 Molded Case Circuit Breaker, 600 VAC, 200 A, 25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Sentron™ Speedfax™ VL HHFXD63B200 Molded Case Circuit Breaker, 600 VAC, 200 A, 25 kA Interrupt, 3 Poles
SKU915347
MFGR #HHFXD63B200
Your Cost: $23,187.00/ea
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Actuator Varying Alternate Catalog Number US2:HHFXD63B200 Application Standard 40C Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number HHFXD63B200 Connection N/A Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 5.6 in L x 7 in W x 11.2 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame FD Frequency Rating 50/60 Hz Gross Volume Per Pack 462.00 Gross Volume UOM in Gross Weight Per Pack 8.8000 lb Gross Weight per Pack Metric 3.99 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 5.6000 in Height [Metric] 14.2240 cm Length 11.2000 in Length [Metric] 28.4480 cm Load Rating N/A Material N/A Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable N Standard HACR Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR Rated Sub Brand SENTRON Temperature Rating 40 °C Trip Range 900 to 2000 A Type Type HHFXD6 Low Voltage UNSPSC 39121601 UPC 11 78364331861 UPC 12 783643318618 Width 7.0000 in Width [Metric] 17.7800 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 200 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC Standard 40C Breaker Extra High IC Rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:HHFXD63B200 |
| Application | Standard 40C Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | HHFXD63B200 |
| Connection | N/A |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.6 in L x 7 in W x 11.2 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | FD |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 462.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 8.8000 lb |
| Gross Weight per Pack Metric | 3.99 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 5.6000 in |
| Height [Metric] | 14.2240 cm |
| Length | 11.2000 in |
| Length [Metric] | 28.4480 cm |
| Load Rating | N/A |
| Material | N/A |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | N |
| Standard | HACR |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR Rated |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | 900 to 2000 A |
| Type | Type HHFXD6 Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364331861 |
| UPC 12 | 783643318618 |
| Width | 7.0000 in |
| Width [Metric] | 17.7800 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 200 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC |
| Standard 40C Breaker |
| Extra High IC Rating |
