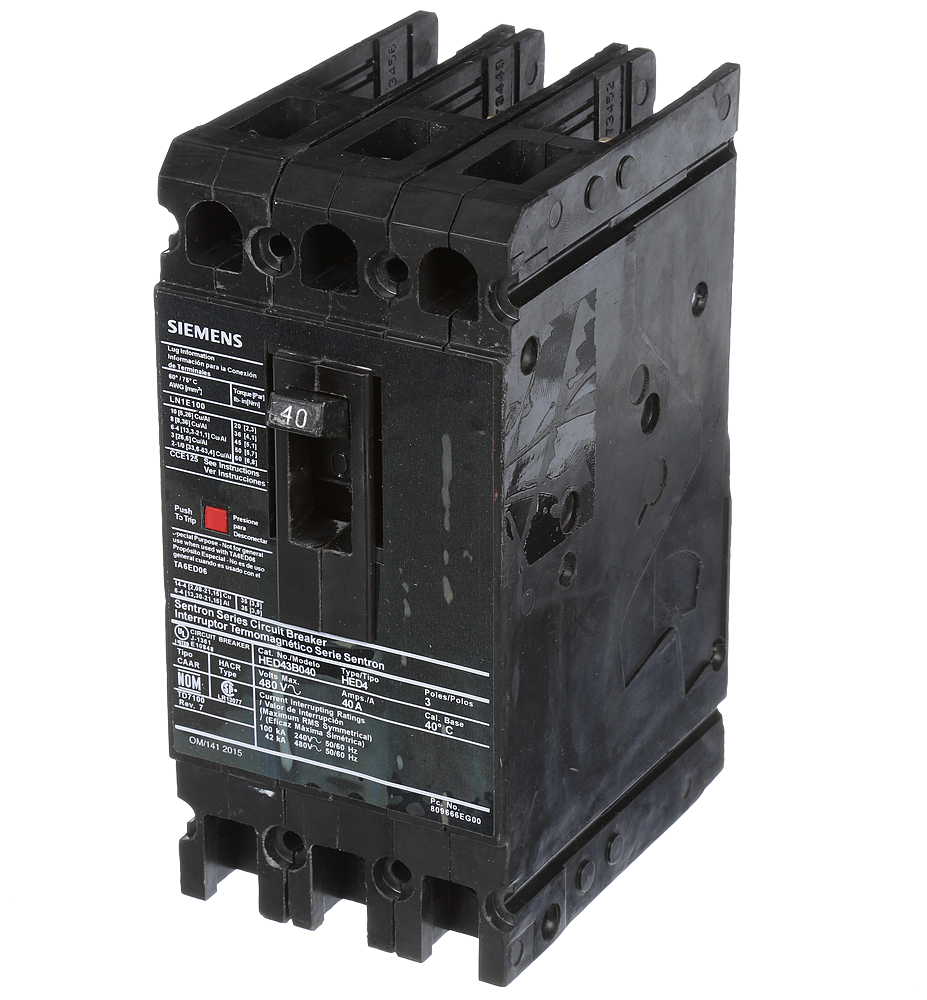

Sentron™ Speedfax™ VL HED43B040 Molded Case Circuit Breaker, 480 VAC, 40 A, 42 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Sentron™ Speedfax™ VL HED43B040 Molded Case Circuit Breaker, 480 VAC, 40 A, 42 kA Interrupt, 3 Poles
SKU93050
MFGR #HED43B040
Your Cost: $3,271.66/ea
List: Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Actuator Varying Alternate Catalog Number US2:HED43B040 Application Standard 40C Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number HED43B040 Connection N/A Connection Type Load Lug Country of Origin MX Currency USD Dimensions 6.3 in L x 15.1 in W x 20.2 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame ED/125A Frequency Rating 50/60 Hz Gross Volume Per Pack 422.08 Gross Volume UOM in Gross Weight Per Pack 3.7700 lb Gross Weight per Pack Metric 1.71 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 5.7500 in Height [Metric] 14.6050 cm Length 7.2000 in Length [Metric] 18.2880 cm Load Rating N/A Material N/A Mounting Type Panel Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard HACR Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedSWD RatedUL Listed Sub Brand SENTRON Temperature Rating 40 °C Trip Range N/A Type Type HED4 Low Voltage UNSPSC 39121601 UPC 11 78364321014 UPC 12 783643210141 Width 5.3000 in Width [Metric] 13.4620 cm Wire Size 10 to 1/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 40 A Interrupt Rating 42 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC/250 VDC VAC//VDC Standard 40C Breaker High IC Rating 10 to 1/0 AWG copper aluminum wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:HED43B040 |
| Application | Standard 40C Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | HED43B040 |
| Connection | N/A |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.3 in L x 15.1 in W x 20.2 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | ED/125A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 422.08 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.7700 lb |
| Gross Weight per Pack Metric | 1.71 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 5.7500 in |
| Height [Metric] | 14.6050 cm |
| Length | 7.2000 in |
| Length [Metric] | 18.2880 cm |
| Load Rating | N/A |
| Material | N/A |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | HACR |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedSWD RatedUL Listed |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | N/A |
| Type | Type HED4 Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364321014 |
| UPC 12 | 783643210141 |
| Width | 5.3000 in |
| Width [Metric] | 13.4620 cm |
| Wire Size | 10 to 1/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 40 A |
| Interrupt Rating | 42 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC/250 VDC VAC//VDC |
| Standard 40C Breaker |
| High IC Rating |
| 10 to 1/0 AWG copper aluminum wire |
