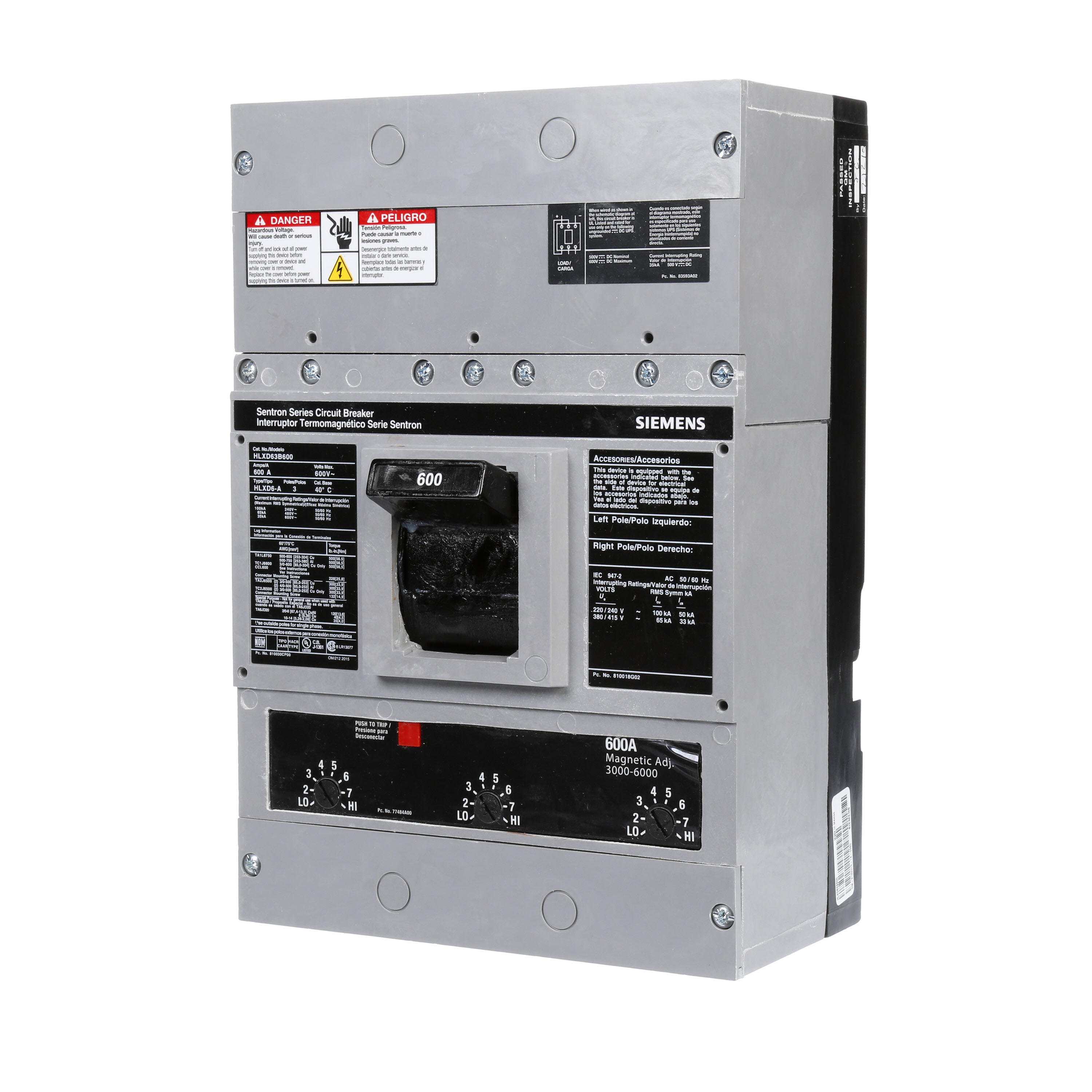

Sentron™ Speedfax™ HLXD63B600 Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 600 A, 35 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Sentron™ Speedfax™ HLXD63B600 Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 600 A, 35 kA Interrupt, 3 Poles
SKU595678
MFGR #HLXD63B600
Your Cost: $22,320.92/ea
List: Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Actuator Varying Alternate Catalog Number US2:HLXD63B600 Application Standard 40C Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number HLXD63B600 Connection N/A Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 6.8 in L x 8.6 in W x 14.5 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame LD Frequency Rating 50/60 Hz Gross Volume Per Pack 838.10 Gross Volume UOM in Gross Weight Per Pack 18.1500 lb Gross Weight per Pack Metric 8.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 6.8000 in Height [Metric] 17.2720 cm Length 14.5000 in Length [Metric] 36.8300 cm Load Rating N/A Material N/A Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard UL Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489IEC 60 947-2HACR Rated Sub Brand SENTRON Temperature Rating 40 °C Trip Range 3000 to 6000 A Type Type HLXD6 Low Voltage UNSPSC 39121601 UPC 11 78364331495 UPC 12 783643314955 Width 8.6000 in Width [Metric] 21.8440 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 600 A Interrupt Rating 35 kA Trip Type Non-Interchangeable Thermal Magnetic Voltage Rating 600 VAC/500 VDC VAC//VDC Standard 40C Breaker High IC Rating Field installable external accessories Series connected short circuit ratings Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs Communication is possible over PROFIBUS DP or Modbus RTU with electronic trip units Without lug Non-interchangeable Without lugs
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:HLXD63B600 |
| Application | Standard 40C Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | HLXD63B600 |
| Connection | N/A |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.8 in L x 8.6 in W x 14.5 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | LD |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 838.10 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 18.1500 lb |
| Gross Weight per Pack Metric | 8.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 6.8000 in |
| Height [Metric] | 17.2720 cm |
| Length | 14.5000 in |
| Length [Metric] | 36.8300 cm |
| Load Rating | N/A |
| Material | N/A |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489IEC 60 947-2HACR Rated |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | 3000 to 6000 A |
| Type | Type HLXD6 Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364331495 |
| UPC 12 | 783643314955 |
| Width | 8.6000 in |
| Width [Metric] | 21.8440 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 600 A |
| Interrupt Rating | 35 kA |
| Trip Type | Non-Interchangeable Thermal Magnetic |
| Voltage Rating | 600 VAC/500 VDC VAC//VDC |
| Standard 40C Breaker |
| High IC Rating |
| Field installable external accessories |
| Series connected short circuit ratings |
| Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs |
| Communication is possible over PROFIBUS DP or Modbus RTU with electronic trip units |
| Without lug |
| Non-interchangeable |
| Without lugs |
