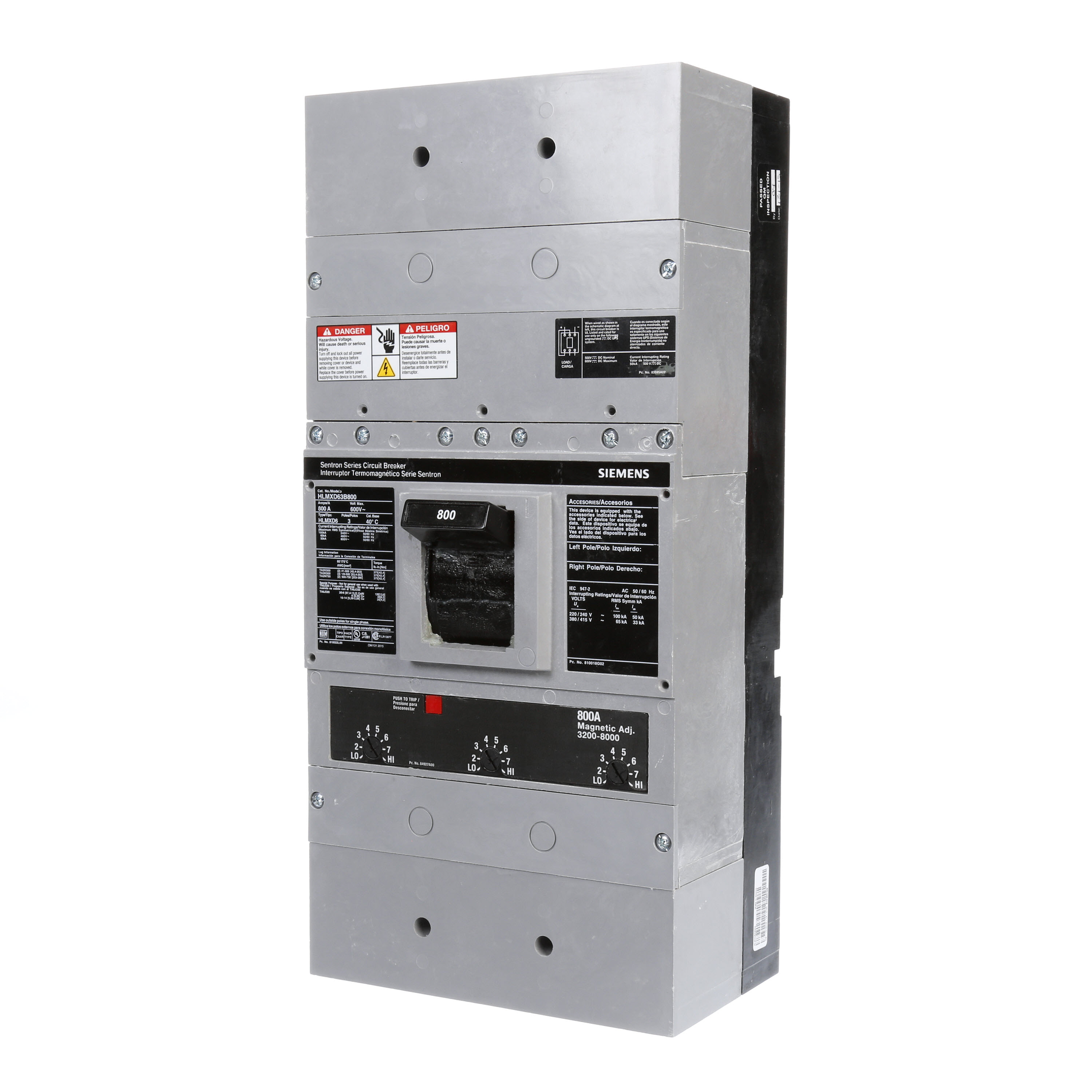

Sentron™ Speedfax™ HLMXD63B800 Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 800 A, 50 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Sentron™ Speedfax™ HLMXD63B800 Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 800 A, 50 kA Interrupt, 3 Poles
SKU487209
MFGR #HLMXD63B800
Your Cost: $21,963.07/ea
List: Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Actuator Varying Alternate Catalog Number US2:HLMXD63B800 Application Standard 40C Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number HLMXD63B800 Connection N/A Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 6.7 in L x 10 in W x 18.7 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame LMD Frequency Rating 50/60 Hz Gross Volume Per Pack 5.78 Gross Volume UOM in Gross Weight Per Pack 32.9000 lb Gross Weight per Pack Metric 14.92 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 6.7000 in Height [Metric] 17.0180 cm Length 18.7000 in Length [Metric] 47.4980 cm Load Rating N/A Material N/A Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard UL/HACR Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489IEC 60 947-2HACR Rated Sub Brand SENTRON Temperature Rating 40 °C Trip Range 3200 to 8000 A Type Type HLMXD6 Low Voltage UNSPSC 39121601 UPC 11 78364330404 UPC 12 783643304048 Width 10.0000 in Width [Metric] 25.4000 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 800 A Interrupt Rating 50 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/500 VDC VAC//VDC Standard 40C Breaker High IC Rating Without lug
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:HLMXD63B800 |
| Application | Standard 40C Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | HLMXD63B800 |
| Connection | N/A |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.7 in L x 10 in W x 18.7 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | LMD |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 5.78 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 32.9000 lb |
| Gross Weight per Pack Metric | 14.92 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 6.7000 in |
| Height [Metric] | 17.0180 cm |
| Length | 18.7000 in |
| Length [Metric] | 47.4980 cm |
| Load Rating | N/A |
| Material | N/A |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL/HACR |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489IEC 60 947-2HACR Rated |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | 3200 to 8000 A |
| Type | Type HLMXD6 Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364330404 |
| UPC 12 | 783643304048 |
| Width | 10.0000 in |
| Width [Metric] | 25.4000 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 800 A |
| Interrupt Rating | 50 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/500 VDC VAC//VDC |
| Standard 40C Breaker |
| High IC Rating |
| Without lug |
