Siemens

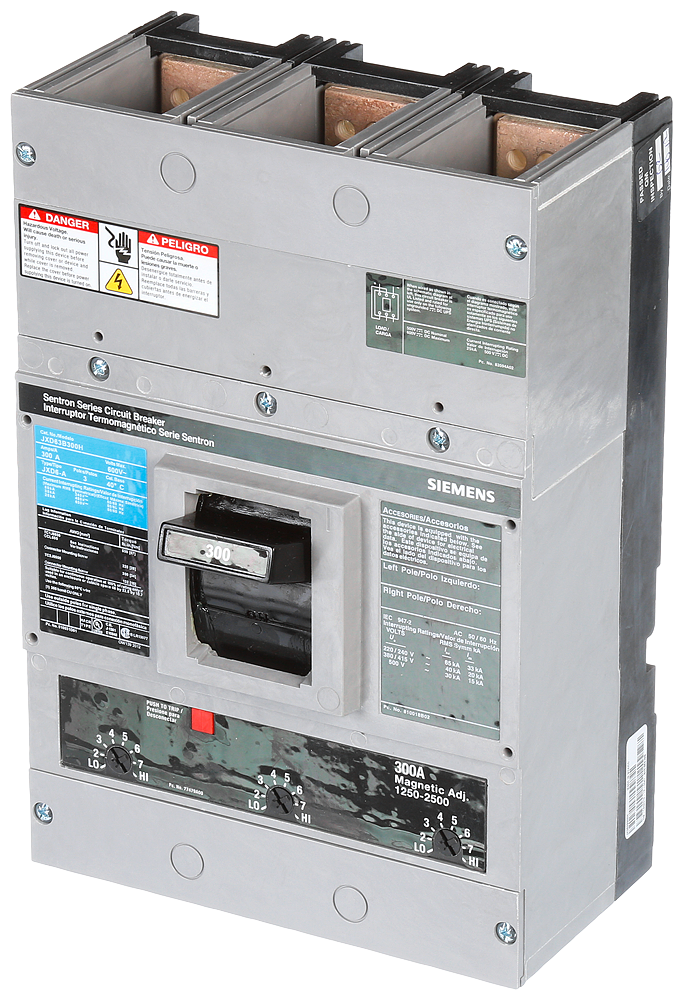

Sentron™ JXD63B300H Type JXD6 Molded Case Circuit Breaker, 600 VAC/250 VDC, 300 A, 25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens
Sentron™ JXD63B300H Type JXD6 Molded Case Circuit Breaker, 600 VAC/250 VDC, 300 A, 25 kA Interrupt, 3 Poles
SKU526348
MFGR #JXD63B300H
Your Cost: $15,761.00/ea
Sentron™ Molded Case Circuit Breaker, Type JXD6, 600 VAC/250 VDC, 300 A, 50/60 Hz, 25 kA Interrupt, JD Frame, Thermal Magnetic Trip, 1250 to 2500 A Trip, 3 Poles, 3-Phase, Bolt-On, 40 deg C, 6.7 in L x 8.8 in W x 14.5 in H
Sentron™ Molded Case Circuit Breaker, Type JXD6, 600 VAC/250 VDC, 300 A, 50/60 Hz, 25 kA Interrupt, JD Frame, Thermal Magnetic Trip, 1250 to 2500 A Trip, 3 Poles, 3-Phase, Bolt-On, 40 deg C, 6.7 in L x 8.8 in W x 14.5 in H
Actuator Varying Alternate Catalog Number US2:JXD63B300H Application Standard 40C Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number JXD63B300H Connection N/A Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 6.7 in L x 8.8 in W x 14.5 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame JD Frequency Rating 50/60 Hz Gross Volume Per Pack 2017.43 Gross Volume UOM in Gross Weight Per Pack 18.2000 lb Gross Weight per Pack Metric 8.26 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 6.5500 in Height [Metric] 16.6370 cm Length 6.0000 in Length [Metric] 15.2400 cm Load Rating N/A Material N/A Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard UL/HACR/100% Rated Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL Listed Sub Brand SENTRON Temperature Rating 40 °C Trip Range 1250 to 2500 A Type Low Voltage UNSPSC 39121601 UPC 11 78364322934 UPC 12 783643229341 Width 7.5000 in Width [Metric] 19.0500 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 300 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC Standard 40C Breaker N/A
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:JXD63B300H |
| Application | Standard 40C Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | JXD63B300H |
| Connection | N/A |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.7 in L x 8.8 in W x 14.5 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | JD |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2017.43 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 18.2000 lb |
| Gross Weight per Pack Metric | 8.26 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 6.5500 in |
| Height [Metric] | 16.6370 cm |
| Length | 6.0000 in |
| Length [Metric] | 15.2400 cm |
| Load Rating | N/A |
| Material | N/A |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL/HACR/100% Rated |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL Listed |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | 1250 to 2500 A |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364322934 |
| UPC 12 | 783643229341 |
| Width | 7.5000 in |
| Width [Metric] | 19.0500 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 300 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Standard 40C Breaker |
| N/A |
