Siemens

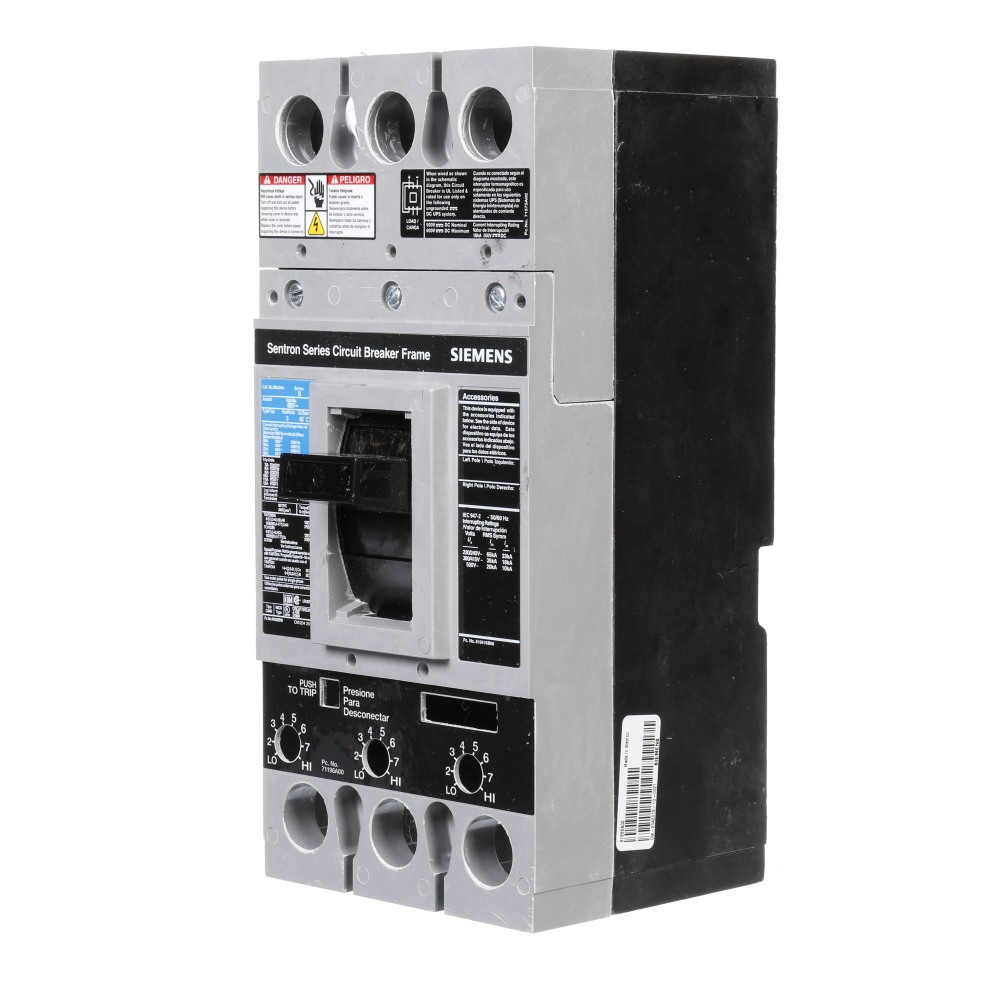

Sentron™ FD63B250 Molded Case Circuit Breaker, 600 VAC/500 VDC, 250 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Siemens
Sentron™ FD63B250 Molded Case Circuit Breaker, 600 VAC/500 VDC, 250 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU388812
MFGR #FD63B250
Your Cost: $10,801.10/ea
List: Siemens FD63B250 3P 250A 600V CB
Siemens FD63B250 3P 250A 600V CB
Actuator Varying Alternate Catalog Number US2:FD63B250 Application Standard 40C Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number FD63B250 Connection N/A Connection Type Load Lug Country of Origin MX Currency USD Dimensions 7 in L x 6 in W x 11 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame FD Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0220 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 0.0010 in Height [Metric] 0.0025 cm Length 0.0100 in Length [Metric] 0.0254 cm Load Rating N/A Material N/A Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard UL/HACR Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedHACR Rated Sub Brand SENTRON Temperature Rating 40 °C Trip Range 1100 to 2500 A Type Type FD6 Low Voltage UNSPSC 39121601 UPC 11 78364321151 UPC 12 783643211513 Width 0.0100 in Width [Metric] 0.0254 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 250 A Interrupt Rating 22 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/500 VDC VAC//VDC Standard 40C Breaker N/A They should be used in conjunction with motor running, over-current-protection devices and should permit the motor to start without nuisance tripping from motor-inrush current The circuit breaker should have a continuous current rating of not less than 115% of the motor full load current Blue labe
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:FD63B250 |
| Application | Standard 40C Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | FD63B250 |
| Connection | N/A |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7 in L x 6 in W x 11 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | FD |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.0220 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 0.0010 in |
| Height [Metric] | 0.0025 cm |
| Length | 0.0100 in |
| Length [Metric] | 0.0254 cm |
| Load Rating | N/A |
| Material | N/A |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL/HACR |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedHACR Rated |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | 1100 to 2500 A |
| Type | Type FD6 Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364321151 |
| UPC 12 | 783643211513 |
| Width | 0.0100 in |
| Width [Metric] | 0.0254 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 250 A |
| Interrupt Rating | 22 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/500 VDC VAC//VDC |
| Standard 40C Breaker |
| N/A |
| They should be used in conjunction with motor running, over-current-protection devices and should permit the motor to start without nuisance tripping from motor-inrush current |
| The circuit breaker should have a continuous current rating of not less than 115% of the motor full load current |
| Blue labe |
