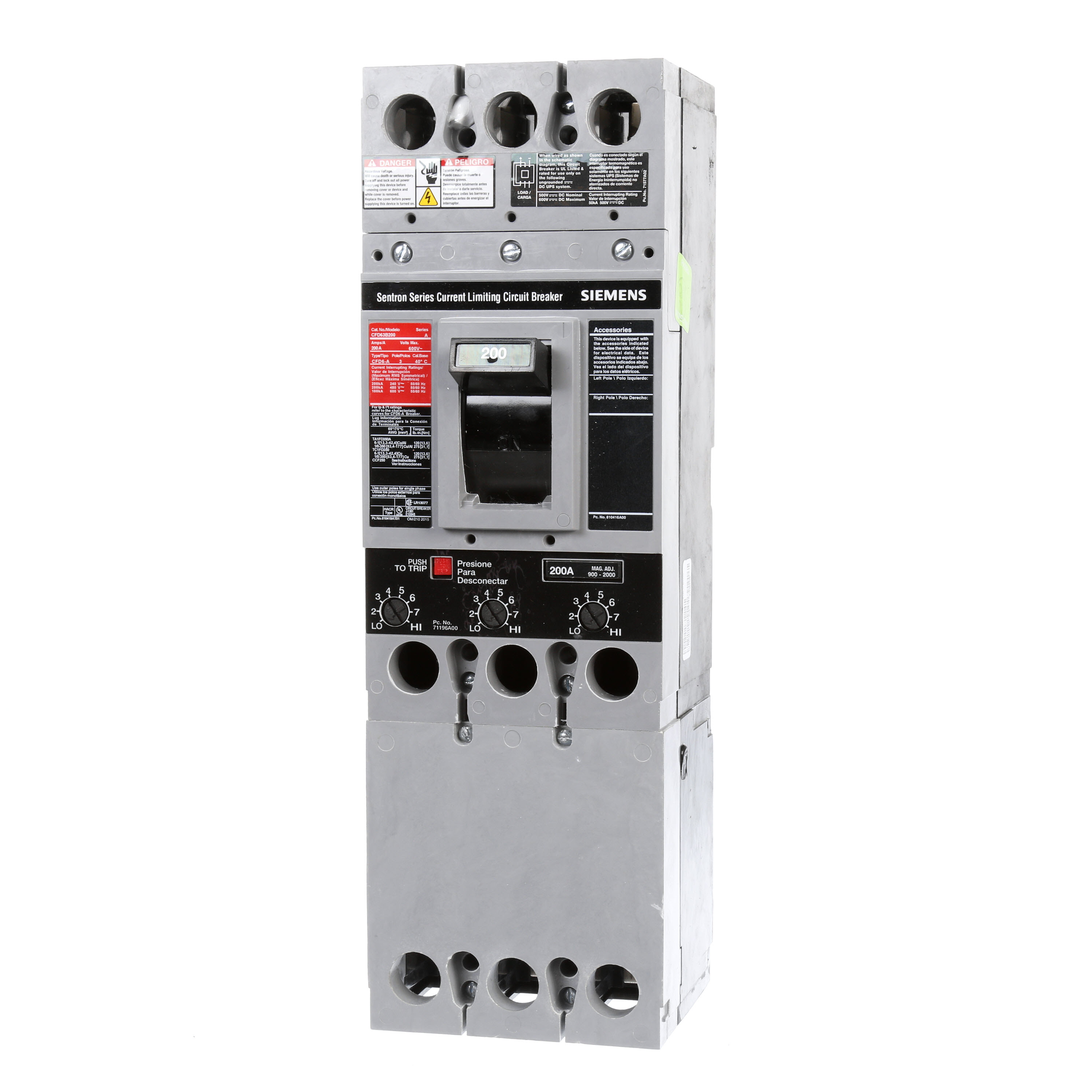

Sentron™ FD63B200 Molded Case Circuit Breaker, 600 VAC/500 VDC, 200 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Sentron™ FD63B200 Molded Case Circuit Breaker, 600 VAC/500 VDC, 200 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU27684
MFGR #FD63B200
Your Cost: $7,027.04/ea
List: SIEMENS FD63B200 3P 200A 600V CB
SIEMENS FD63B200 3P 200A 600V CB
Alternate Catalog Number US2:FD63B200 ARRA Compliant C Buy American Compliant C Catalog Number FD63B200 Connection Type Load Lug Country of Origin MX Currency USD Dimensions 7 in L x 6 in W x 11 in H EU RoHS Indicator C Frame FD6 Frequency Rating 50/60 Hz Gross Weight Per Pack 8.4880 lb Gross Weight per Pack Metric 3.85 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Number Of Poles 3 Phase 3 pH Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL Listed Temperature Rating 40 °C Trip Range 900 to 2000 A Type Low Voltage UNSPSC 39121601 UPC 11 78364321149 UPC 12 783643211490 Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 200 A Interrupt Rating 22 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/500 VDC N/A Molded case circuit breakers are used in motor circuits as a disconnecting means and for short circuit protection They should be used in conjunction with motor running, over-current-protection devices, and should permit the motor to start without nuisance tripping from motor-inrush current The circuit breaker should have a continuous current rating of not less than 115% of the motor full-load current Actuator varying Enclosure varying Blue label
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:FD63B200 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | FD63B200 |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7 in L x 6 in W x 11 in H |
| EU RoHS Indicator | C |
| Frame | FD6 |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 8.4880 lb |
| Gross Weight per Pack Metric | 3.85 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL Listed |
| Temperature Rating | 40 °C |
| Trip Range | 900 to 2000 A |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364321149 |
| UPC 12 | 783643211490 |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 200 A |
| Interrupt Rating | 22 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/500 VDC |
| N/A |
| Molded case circuit breakers are used in motor circuits as a disconnecting means and for short circuit protection |
| They should be used in conjunction with motor running, over-current-protection devices, and should permit the motor to start without nuisance tripping from motor-inrush current |
| The circuit breaker should have a continuous current rating of not less than 115% of the motor full-load current |
| Actuator varying |
| Enclosure varying |
| Blue label |
