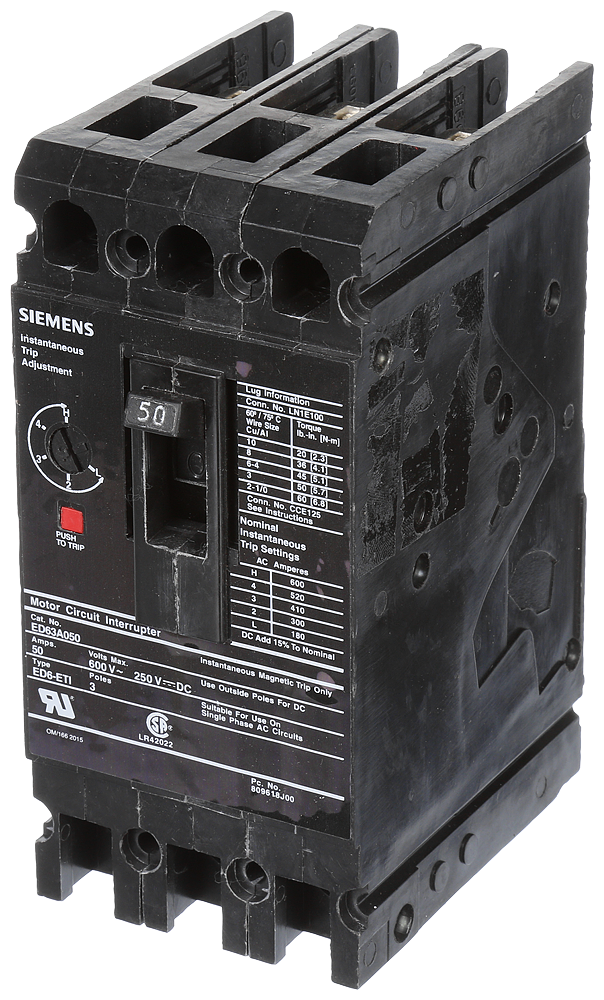

Sentron™ ED63A050 Molded Case Circuit Breaker, 600 VAC, 50 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Sentron™ ED63A050 Molded Case Circuit Breaker, 600 VAC, 50 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU93061
MFGR #ED63A050
Your Cost: $4,529.00/ea
Siemens ED63A050 3P 50A 600V CB
Siemens ED63A050 3P 50A 600V CB
Actuator Varying Alternate Catalog Number US2:ED63A050 Application Standard Range ETI Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number ED63A050 Connection N/A Connection Type Load Lug Country of Origin MX Currency USD Dimensions 4 in L x 7 in W x 6 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame ED Frequency Rating 50/60 Hz Gross Volume Per Pack 166.61 Gross Volume UOM in Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536304000 Height 5.7000 in Height [Metric] 14.4780 cm Length 7.4000 in Length [Metric] 18.7960 cm Load Rating N/A Material N/A Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard HACR Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489 Sub Brand SENTRON Temperature Rating 40 °C Trip Range 180 to 600 A Type Type ED6 Low Voltage UNSPSC 39121601 UPC 11 78364321085 UPC 12 783643210851 Width 3.9500 in Width [Metric] 10.0330 cm Wire Size 10 to 1/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 50 A Interrupt Rating 18 kA Trip Type Instantaneous/Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC Standard Range ETI Breaker N/A All ED frame circuit breakers may be reverse connected 10 to 1/0 AWG copper aluminum wire range 180 to 600 A instantaneous trip Standard range ETI breaker
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:ED63A050 |
| Application | Standard Range ETI Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | ED63A050 |
| Connection | N/A |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4 in L x 7 in W x 6 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | ED |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 166.61 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536304000 |
| Height | 5.7000 in |
| Height [Metric] | 14.4780 cm |
| Length | 7.4000 in |
| Length [Metric] | 18.7960 cm |
| Load Rating | N/A |
| Material | N/A |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | HACR |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489 |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | 180 to 600 A |
| Type | Type ED6 Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364321085 |
| UPC 12 | 783643210851 |
| Width | 3.9500 in |
| Width [Metric] | 10.0330 cm |
| Wire Size | 10 to 1/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 50 A |
| Interrupt Rating | 18 kA |
| Trip Type | Instantaneous/Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Standard Range ETI Breaker |
| N/A |
| All ED frame circuit breakers may be reverse connected |
| 10 to 1/0 AWG copper aluminum wire range |
| 180 to 600 A instantaneous trip |
| Standard range ETI breaker |
