Siemens

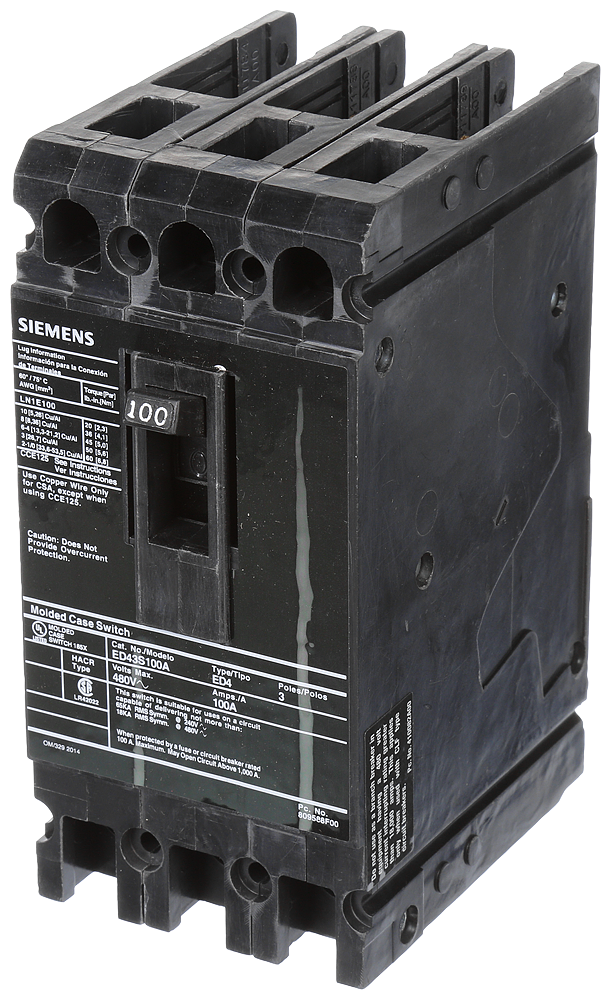

Sentron™ ED43S100A Molded Case Circuit Breaker, 480 VAC, 125 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens
Sentron™ ED43S100A Molded Case Circuit Breaker, 480 VAC, 125 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU413598
MFGR #ED43S100A
Your Cost: $2,280.53/ea
List: Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Actuator Varying Alternate Catalog Number US2:ED43S100A Application Molded Case Switch ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number ED43S100A Connection N/A Connection Type Load Lug Country of Origin MX Currency USD Dimensions 4 in L x 7 in W x 6 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame ED Frequency Rating 50/60 Hz Gross Volume Per Pack 170.81 Gross Volume UOM in Gross Weight Per Pack 3.6750 lb Gross Weight per Pack Metric 1.67 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 5.6000 in Height [Metric] 14.2240 cm Length 7.3500 in Length [Metric] 18.6690 cm Load Rating N/A Material N/A Mounting Type Panel Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable N Standard HACR Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489 Sub Brand SENTRON Temperature Rating 40 °C Trip Range 1000 A Type Type ED4 Low Voltage UNSPSC 39121601 UPC 11 78364321103 UPC 12 783643211032 Width 4.1500 in Width [Metric] 10.5410 cm Wire Size 3 to 3/0 AWG, 1 to 2/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 125 A Interrupt Rating 18 kA Trip Type LI/Thermal Magnetic Voltage Rating 480 VAC/250 VDC VAC//VDC Molded Case Switch LI All ED frame circuit breakers may be reverse connected 3 to 3/0 AWG copper, 1 to 2/0 AWG aluminum wire range Varying actuator Varying enclosure Blue label
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:ED43S100A |
| Application | Molded Case Switch |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | ED43S100A |
| Connection | N/A |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4 in L x 7 in W x 6 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | ED |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 170.81 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.6750 lb |
| Gross Weight per Pack Metric | 1.67 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 5.6000 in |
| Height [Metric] | 14.2240 cm |
| Length | 7.3500 in |
| Length [Metric] | 18.6690 cm |
| Load Rating | N/A |
| Material | N/A |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | N |
| Standard | HACR |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489 |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | 1000 A |
| Type | Type ED4 Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364321103 |
| UPC 12 | 783643211032 |
| Width | 4.1500 in |
| Width [Metric] | 10.5410 cm |
| Wire Size | 3 to 3/0 AWG, 1 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 125 A |
| Interrupt Rating | 18 kA |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 480 VAC/250 VDC VAC//VDC |
| Molded Case Switch |
| LI |
| All ED frame circuit breakers may be reverse connected |
| 3 to 3/0 AWG copper, 1 to 2/0 AWG aluminum wire range |
| Varying actuator |
| Varying enclosure |
| Blue label |
