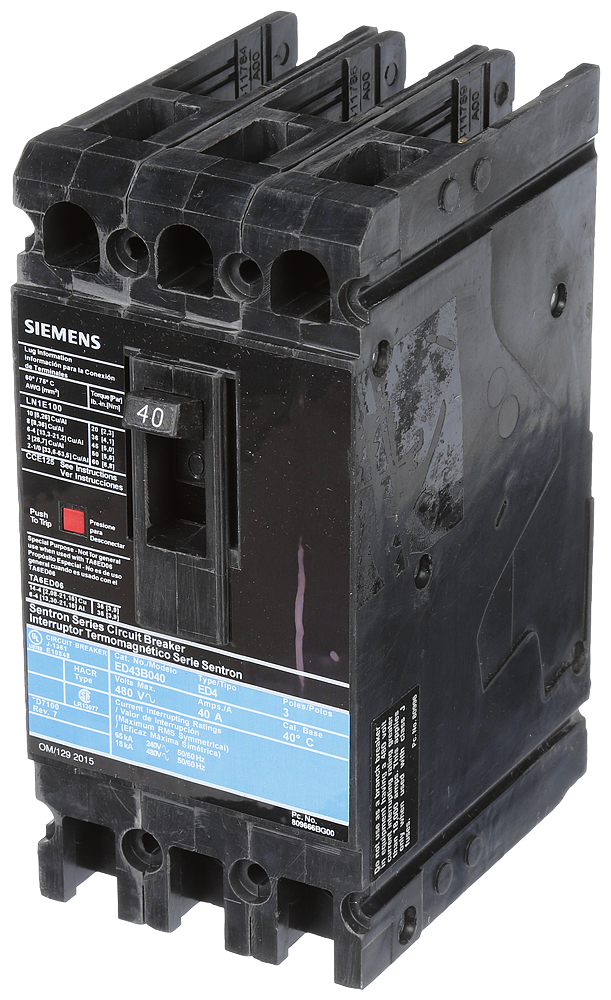

Sentron™ ED43B040 Molded Case Circuit Breaker, 480 VAC/250 VDC, 40 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Sentron™ ED43B040 Molded Case Circuit Breaker, 480 VAC/250 VDC, 40 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU27659
MFGR #ED43B040
Your Cost: $3,131.00/ea
Siemens ED43B040 3P 40A 480V CB
Siemens ED43B040 3P 40A 480V CB
Actuator Varying Alternate Catalog Number US2:ED43B040 Application Standard 40C Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number ED43B040 Connection N/A Connection Type Load Lug Country of Origin MX Currency USD Dimensions 4 in L x 6 in W x 7 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame ED/125A Frequency Rating 50/60 Hz Gross Volume Per Pack 180.00 Gross Volume UOM in Gross Weight Per Pack 3.8000 lb Gross Weight per Pack Metric 1.72 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 6.2000 in Height [Metric] 15.7480 cm Length 7.3500 in Length [Metric] 18.6690 cm Load Rating N/A Material N/A Mounting Type Panel Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard HACR Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489 Sub Brand SENTRON Temperature Rating 40 °C Trip Range N/A Type Type ED4 Low Voltage UNSPSC 39121601 UPC 11 78364320941 UPC 12 783643209411 Width 3.9500 in Width [Metric] 10.0330 cm Wire Size 10 to 1/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 40 A Interrupt Rating 18 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC/250 VDC VAC//VDC Standard 40C Breaker N/A All ED frame circuit breakers may be reverse connected 10 to 1/0 AWG copper aluminum wire Varying actuator Varying enclosure Blue label
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:ED43B040 |
| Application | Standard 40C Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | ED43B040 |
| Connection | N/A |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4 in L x 6 in W x 7 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | ED/125A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 180.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.8000 lb |
| Gross Weight per Pack Metric | 1.72 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 6.2000 in |
| Height [Metric] | 15.7480 cm |
| Length | 7.3500 in |
| Length [Metric] | 18.6690 cm |
| Load Rating | N/A |
| Material | N/A |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | HACR |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489 |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | N/A |
| Type | Type ED4 Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364320941 |
| UPC 12 | 783643209411 |
| Width | 3.9500 in |
| Width [Metric] | 10.0330 cm |
| Wire Size | 10 to 1/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 40 A |
| Interrupt Rating | 18 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC/250 VDC VAC//VDC |
| Standard 40C Breaker |
| N/A |
| All ED frame circuit breakers may be reverse connected |
| 10 to 1/0 AWG copper aluminum wire |
| Varying actuator |
| Varying enclosure |
| Blue label |
