Siemens

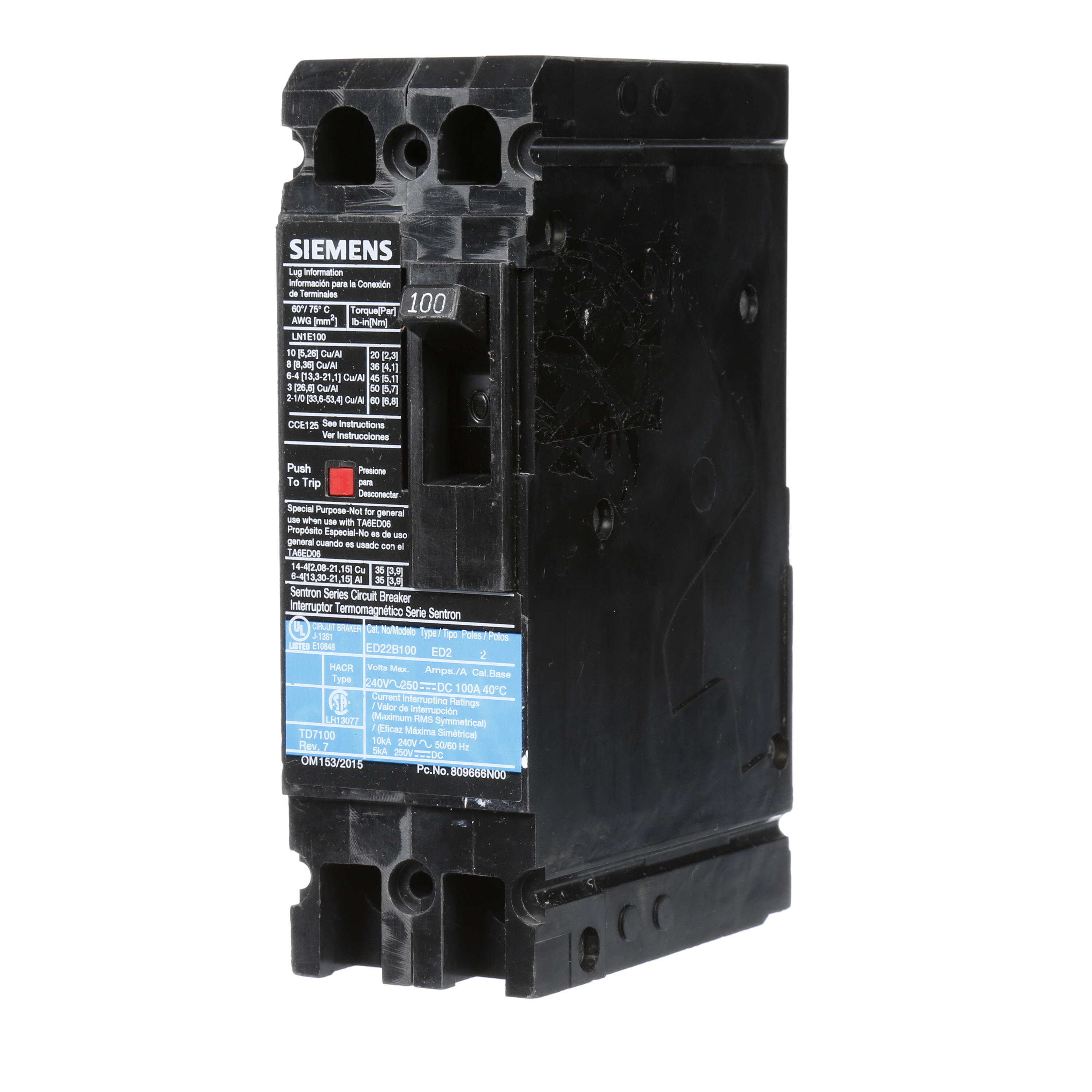

Sentron™ ED22B100 Molded Case Circuit Breaker, 240 VAC/250 VDC, 100 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens
Sentron™ ED22B100 Molded Case Circuit Breaker, 240 VAC/250 VDC, 100 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU281951
MFGR #ED22B100
Your Cost: $1,491.37/ea
List: Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Actuator Varying Alternate Catalog Number US2:ED22B100 Application Standard 40C Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number ED22B100 Connection N/A Connection Type Load Lug Country of Origin MX Currency USD Dimensions 3 in L x 7 in W x 6 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame ED/125A Frequency Rating 50/60 Hz Gross Volume Per Pack 120.67 Gross Volume UOM in Gross Weight Per Pack 1.8750 lb Gross Weight per Pack Metric 0.85 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 5.7000 in Height [Metric] 14.4780 cm Length 7.3000 in Length [Metric] 18.5420 cm Load Rating N/A Material N/A Mounting Type Panel Number Of Poles 2 Operating Temperature 40 °C Phase 1 pH Returnable N Standard HACR Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489 Sub Brand SENTRON Temperature Rating 40 °C Trip Range N/A Type Type ED2 Low Voltage UNSPSC 39121601 UPC 11 78364320895 UPC 12 783643208957 Width 2.9000 in Width [Metric] 7.3660 cm Wire Size 10 to 1/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 100 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC/125/250 VDC Standard 40C Breaker N/A All ED frame circuit breakers may be reverse connected 10 to 1/0 AWG copper aluminum wire Varying actuator Varying enclosure Blue label 240 VAC/125/250 VDC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:ED22B100 |
| Application | Standard 40C Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | ED22B100 |
| Connection | N/A |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in L x 7 in W x 6 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | ED/125A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 120.67 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.8750 lb |
| Gross Weight per Pack Metric | 0.85 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 5.7000 in |
| Height [Metric] | 14.4780 cm |
| Length | 7.3000 in |
| Length [Metric] | 18.5420 cm |
| Load Rating | N/A |
| Material | N/A |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Returnable | N |
| Standard | HACR |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL 489 |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | N/A |
| Type | Type ED2 Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364320895 |
| UPC 12 | 783643208957 |
| Width | 2.9000 in |
| Width [Metric] | 7.3660 cm |
| Wire Size | 10 to 1/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 100 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC/125/250 VDC |
| Standard 40C Breaker |
| N/A |
| All ED frame circuit breakers may be reverse connected |
| 10 to 1/0 AWG copper aluminum wire |
| Varying actuator |
| Varying enclosure |
| Blue label |
| 240 VAC/125/250 VDC |
