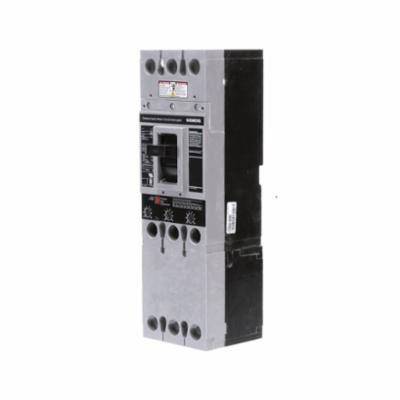

Sentron™ CFD63A250 Type CFD6 Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 100 kA Interrupt, 3 Poles
Sentron™ CFD63A250 Type CFD6 Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 100 kA Interrupt, 3 Poles
SKU768432
MFGR #CFD63A250
Your Cost: $17,932.35/ea
List: Sentron™ Molded Case Circuit Breaker, Type CFD6, 600 VAC/250 VDC, 250 A, 50/60 Hz, 100 kA Interrupt, FD Frame, Thermal Magnetic Trip, 1100 to 2500 A Trip, 3 Poles, 40 deg C, 7 in L x 6 in W x 15 in H
Sentron™ Molded Case Circuit Breaker, Type CFD6, 600 VAC/250 VDC, 250 A, 50/60 Hz, 100 kA Interrupt, FD Frame, Thermal Magnetic Trip, 1100 to 2500 A Trip, 3 Poles, 40 deg C, 7 in L x 6 in W x 15 in H
Actuator Varying Alternate Catalog Number US2:CFD63A250 Application Standard Range ETI Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number CFD63A250 Connection N/A Country of Origin MX Currency USD Dimensions 7 in L x 6 in W x 15 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame CFD6 Frequency Rating 50/60 Hz Gross Volume Per Pack 630.00 Gross Volume UOM in Gross Weight Per Pack 13.6000 lb Gross Weight per Pack Metric 6.17 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536304000 Height 7.0000 in Height [Metric] 17.7800 cm Length 15.0000 in Length [Metric] 38.1000 cm Load Rating N/A Material N/A Number Of Poles 3 Operating Temperature 40 °C Returnable N Standard UL/HACR Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL Listed Sub Brand SENTRON Temperature Rating 40 °C Trip Range 1100 to 2500 A Type Current Limiting Low Voltage UNSPSC 39121601 UPC 11 78364321234 UPC 12 783643212343 Width 6.0000 in Width [Metric] 15.2400 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 250 A Interrupt Rating 100 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC Standard Range ETI Breaker Highest IC Rating and Current Limiting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:CFD63A250 |
| Application | Standard Range ETI Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | CFD63A250 |
| Connection | N/A |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7 in L x 6 in W x 15 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | CFD6 |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 630.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 13.6000 lb |
| Gross Weight per Pack Metric | 6.17 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536304000 |
| Height | 7.0000 in |
| Height [Metric] | 17.7800 cm |
| Length | 15.0000 in |
| Length [Metric] | 38.1000 cm |
| Load Rating | N/A |
| Material | N/A |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Returnable | N |
| Standard | UL/HACR |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL Listed |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | 1100 to 2500 A |
| Type | Current Limiting Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364321234 |
| UPC 12 | 783643212343 |
| Width | 6.0000 in |
| Width [Metric] | 15.2400 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 250 A |
| Interrupt Rating | 100 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Standard Range ETI Breaker |
| Highest IC Rating and Current Limiting |
