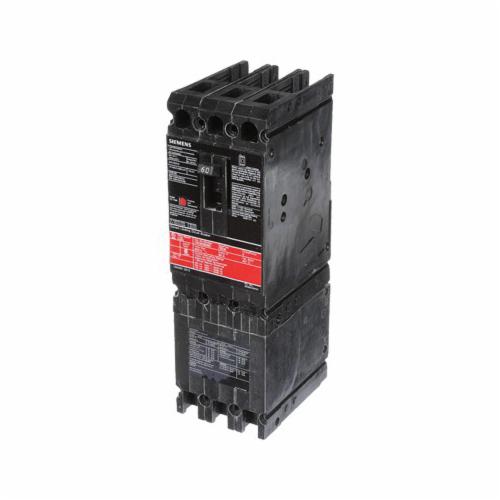

Sentron™ CED63B060L Molded Case Circuit Breaker, 600 VAC/500 VDC, 60 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Sentron™ CED63B060L Molded Case Circuit Breaker, 600 VAC/500 VDC, 60 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU797833
MFGR #CED63B060L
Your Cost: $9,331.29/ea
List: Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Actuator Varying Alternate Catalog Number US2:CED63B060L Application Standard 40C Breaker ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number CED63B060L Color Black Connection Line/Load lugs installed Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 3 in L x 10 in W x 5 in H Enclosure Varying Environmental Conditions N/A EU RoHS Indicator C Frame ED Frequency Rating 50/60 Hz Gross Volume Per Pack 150.00 Gross Volume UOM in Gross Weight Per Pack 5.6600 lb Gross Weight per Pack Metric 2.57 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.0000 in Height [Metric] 7.6200 cm Length 5.0000 in Length [Metric] 12.7000 cm Load Rating N/A Material N/A Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable N Standard HACR Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedCSANOM CertifiedSWD RatedUL 489 Sub Brand SENTRON Temperature Rating 40 °C Trip Range N/A Type Type CED6 Current Limiting Fuseless Low Voltage UNSPSC 39121601 UPC 11 78364323672 UPC 12 783643236721 Width 10.0000 in Width [Metric] 25.4000 cm Wire Size 10 to 1/0 AWG, 10 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 60 A Interrupt Rating 100 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/500 VDC VAC//VDC Standard 40C Breaker Highest IC Rating/Current Limiting Solid states Many sizes for motor circuit protectors and molded case switches 10 to 1/0 AWG line, 10 to 4 AWG load Varying actuator Varying enclosure Red label Highest IC rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Varying |
| Alternate Catalog Number | US2:CED63B060L |
| Application | Standard 40C Breaker |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | CED63B060L |
| Color | Black |
| Connection | Line/Load lugs installed |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in L x 10 in W x 5 in H |
| Enclosure | Varying |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | ED |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 150.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 5.6600 lb |
| Gross Weight per Pack Metric | 2.57 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.0000 in |
| Height [Metric] | 7.6200 cm |
| Length | 5.0000 in |
| Length [Metric] | 12.7000 cm |
| Load Rating | N/A |
| Material | N/A |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | N |
| Standard | HACR |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedCSANOM CertifiedSWD RatedUL 489 |
| Sub Brand | SENTRON |
| Temperature Rating | 40 °C |
| Trip Range | N/A |
| Type | Type CED6 Current Limiting Fuseless Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364323672 |
| UPC 12 | 783643236721 |
| Width | 10.0000 in |
| Width [Metric] | 25.4000 cm |
| Wire Size | 10 to 1/0 AWG, 10 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 60 A |
| Interrupt Rating | 100 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/500 VDC VAC//VDC |
| Standard 40C Breaker |
| Highest IC Rating/Current Limiting |
| Solid states |
| Many sizes for motor circuit protectors and molded case switches |
| 10 to 1/0 AWG line, 10 to 4 AWG load |
| Varying actuator |
| Varying enclosure |
| Red label |
| Highest IC rating |
