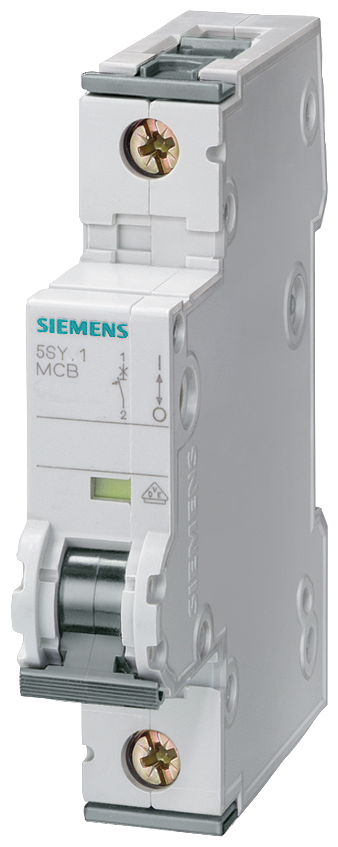

Sentron™ 5SY8113-7 5SY Miniature Circuit Breaker, 230/400 VAC, 13 A, 5 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Sentron™ 5SY8113-7 5SY Miniature Circuit Breaker, 230/400 VAC, 13 A, 5 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU827565
MFGR #5SY8113-7
Your Cost: $45.30/ea
List: SIEMENS 5SY8113-7 SUPPLEMENTARY PROTECTOR,1P,13a,CURVE C
SIEMENS 5SY8113-7 SUPPLEMENTARY PROTECTOR,1P,13a,CURVE C
Actuator Type Handle Alternate Catalog Number 5SY8113-7 Application SUPPLEMENTARY PROTECTION ARRA Compliant C Auxiliary Contact Rating N/A Buy American Compliant C Catalog Number 5SY8113-7 Connection Identical wire screw connections on line and load side. Connection Type Screw Country of Origin DE Currency USD Dimensions 90 mm H x 18 mm W x 76 mm D Enclosure Type IP20/IP40 EU RoHS Indicator C Frame 5kA V Frequency Rating 50 Hz Gross Volume Per Pack 9.90 Gross Volume UOM in Gross Weight Per Pack 0.3570 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.2700 in Height [Metric] 8.3058 cm Insulation Type Identical wire screw connections on line and load side. Length 3.6610 in Length [Metric] 9.2989 cm Mounting Type DIN Rail Phase On standard mounting rail (DIN 35mm) Hz Power Rating SUPPLEMENTARY PROTECTION Returnable N Series 5SY Standard UL 1077 Standards CSA C22.2 No. 235, CE Marked, UL 1077 Sub Brand SENTRON Temperature Rating -25 to 55 °C Trip Range 1.13 to 1.45 A Type Siemens UNSPSC 39121601 UPC 11 75455494109 UPC 12 754554941097 Width 0.8270 in Width [Metric] 2.1006 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 13 A Interrupt Rating 5 kA Trip Type Thermal Magnetic Voltage Rating 230/400 VAC SUPPLEMENTARY PROTECTION Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. Clear and visible conductor connection in front of the rear busbar facilitates controls The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space Double terminal chambers permit accommodation of two wires of different cross-sections Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices For the quick and easy mounting of auxiliary switches and fault signal contacts Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools Class C trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | 5SY8113-7 |
| Application | SUPPLEMENTARY PROTECTION |
| ARRA Compliant | C |
| Auxiliary Contact Rating | N/A |
| Buy American Compliant | C |
| Catalog Number | 5SY8113-7 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 18 mm W x 76 mm D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | C |
| Frame | 5kA V |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 9.90 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3570 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.2700 in |
| Height [Metric] | 8.3058 cm |
| Insulation Type | Identical wire screw connections on line and load side. |
| Length | 3.6610 in |
| Length [Metric] | 9.2989 cm |
| Mounting Type | DIN Rail |
| Phase | On standard mounting rail (DIN 35mm) Hz |
| Power Rating | SUPPLEMENTARY PROTECTION |
| Returnable | N |
| Series | 5SY |
| Standard | UL 1077 |
| Standards | CSA C22.2 No. 235, CE Marked, UL 1077 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 55 °C |
| Trip Range | 1.13 to 1.45 A |
| Type | Siemens |
| UNSPSC | 39121601 |
| UPC 11 | 75455494109 |
| UPC 12 | 754554941097 |
| Width | 0.8270 in |
| Width [Metric] | 2.1006 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 13 A |
| Interrupt Rating | 5 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 230/400 VAC |
| SUPPLEMENTARY PROTECTION |
| Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. |
| Clear and visible conductor connection in front of the rear busbar facilitates controls |
| The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space |
| Double terminal chambers permit accommodation of two wires of different cross-sections |
| Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed |
| Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices |
| For the quick and easy mounting of auxiliary switches and fault signal contacts |
| Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools |
| Class C trip |
