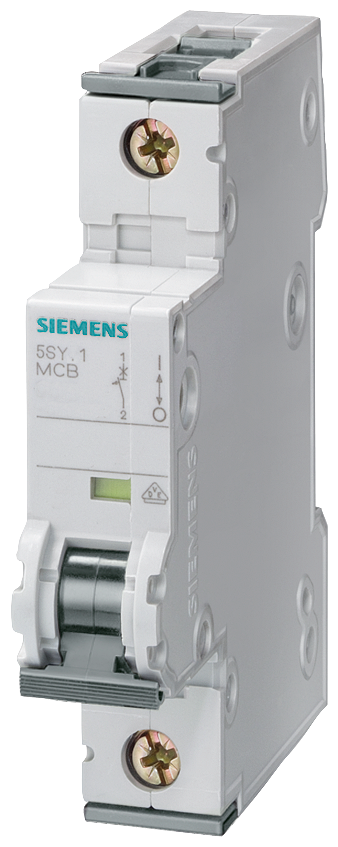

Sentron™ 5SY8106-7 Miniature Supplementary Protector, 230/400 VAC, 6 A, 5 kA Interrupt, 1 Pole
Custom_Product_Images_Illustration
Sentron™ 5SY8106-7 Miniature Supplementary Protector, 230/400 VAC, 6 A, 5 kA Interrupt, 1 Pole
SKU349655
MFGR #5SY8106-7
Your Cost: $76.20/ea
List: SIEMENS 5SY8106-7
SIEMENS 5SY8106-7
Alternate Catalog Number 5SY8106-7 Application SUPPLEMENTARY PROTECTION ARRA Compliant C Buy American Compliant C Catalog Number 5SY8106-7 Connection Identical wire screw connections on line and load side. Connection Type Screw Country of Origin DE Currency USD Dimensions 90 mm H x 18 mm W x 70 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50 Hz Gross Volume Per Pack 9.90 Gross Volume UOM in Gross Weight Per Pack 0.3480 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.2700 in Height [Metric] 8.3058 cm Length 3.6610 in Length [Metric] 9.2989 cm Mounting Type DIN Rail Number Of Poles 1 Returnable Y Standard UL 1077 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedcULus ListedCSA 22.2 No. 235EN 60898IEC/EN 60947-2UL 1077 File No E116386 Sub Brand SENTRON Temperature Rating -25 to 45 °C Type Miniature UNSPSC 39121601 UPC 11 75455494076 UPC 12 754554940762 Width 0.8270 in Width [Metric] 2.1006 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 6 A Interrupt Rating 5 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC SUPPLEMENTARY PROTECTION Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. Excellent current limiting and selectivity characteristics Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2 Combined terminals enable a simultaneous connection of busbars and feeder cables Uniform components that can be quickly mounted individually The handle locking device virtually prevents any unauthorized operation of the handle Rapid connection of the feeder cable in front of the busbar Identical terminals at both sides for an optional infeed from the top or the bottom Identical wire screw on line and load side No tool required for mounting or dismounting Supports a fast and comfortable removal from the assembly Trip indication Type C characteristic is for general device protection in control circuits 35 mm DIN Rail mounting Magnetic trip point - 5 to 10 times in rating Thermal trip point - 1.13 to 1.45 protector rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 5SY8106-7 |
| Application | SUPPLEMENTARY PROTECTION |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SY8106-7 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 18 mm W x 70 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 9.90 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3480 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.2700 in |
| Height [Metric] | 8.3058 cm |
| Length | 3.6610 in |
| Length [Metric] | 9.2989 cm |
| Mounting Type | DIN Rail |
| Number Of Poles | 1 |
| Returnable | Y |
| Standard | UL 1077 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedcULus ListedCSA 22.2 No. 235EN 60898IEC/EN 60947-2UL 1077 File No E116386 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 45 °C |
| Type | Miniature |
| UNSPSC | 39121601 |
| UPC 11 | 75455494076 |
| UPC 12 | 754554940762 |
| Width | 0.8270 in |
| Width [Metric] | 2.1006 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 6 A |
| Interrupt Rating | 5 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| SUPPLEMENTARY PROTECTION |
| Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. |
| Excellent current limiting and selectivity characteristics |
| Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2 |
| Combined terminals enable a simultaneous connection of busbars and feeder cables |
| Uniform components that can be quickly mounted individually |
| The handle locking device virtually prevents any unauthorized operation of the handle |
| Rapid connection of the feeder cable in front of the busbar |
| Identical terminals at both sides for an optional infeed from the top or the bottom |
| Identical wire screw on line and load side |
| No tool required for mounting or dismounting |
| Supports a fast and comfortable removal from the assembly |
| Trip indication |
| Type C characteristic is for general device protection in control circuits |
| 35 mm DIN Rail mounting |
| Magnetic trip point - 5 to 10 times in rating |
| Thermal trip point - 1.13 to 1.45 protector rating |
