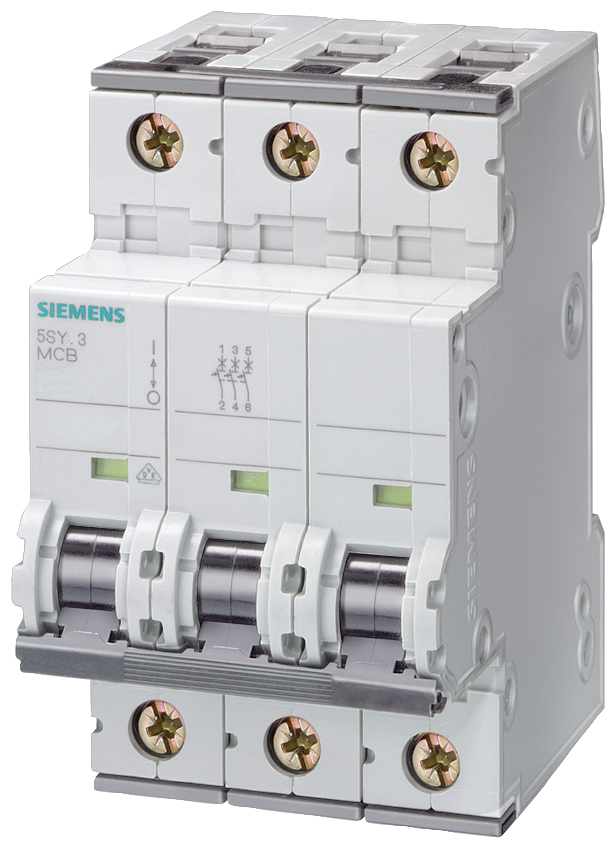

Sentron™ 5SY6363-7 5SY63637 Type C Characteristic Supplementary Protector, 400 VAC, 63 A, 6 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Sentron™ 5SY6363-7 5SY63637 Type C Characteristic Supplementary Protector, 400 VAC, 63 A, 6 kA Interrupt, 3 Poles
SKU936549
MFGR #5SY6363-7
Your Cost: $190.26/ea
List: SIEMENS 5SY6363-7 UL1077 SUP. PROT 6KA 3P 63A C-TRIP
SIEMENS 5SY6363-7 UL1077 SUP. PROT 6KA 3P 63A C-TRIP
Alternate Catalog Number 5SY6363-7 Application SUPPLEMENTARY PROTECTION ARRA Compliant C Buy American Compliant C Catalog Number 5SY6363-7 Connection Identical wire screw connections on line and load side. Connection Type Screw Country of Origin DE Currency USD Dimensions 90 mm H x 54 mm W x 76 mm D Enclosure Type IP20 EU RoHS Indicator C Frame C Frequency Rating 50 Hz Gross Volume Per Pack 12.67 Gross Volume UOM in Gross Weight Per Pack 1.0670 lb Gross Weight per Pack Metric 0.48 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 0.9000 in Height [Metric] 2.2860 cm Length 4.4000 in Length [Metric] 11.1760 cm Material N/A Mounting Type DIN Rail Number Of Poles 3 Returnable Y Standard UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCSA 235EN 60 898IEC/EN 60 947-2UL 1077 Sub Brand SENTRON Temperature Rating -25 to 55 °C Trip Range 1.13 to 1.45 A Thermal/5 to 10 A Magnetic Type Characteristic UNSPSC 39121601 UPC 11 75455495801 UPC 12 754554958019 Width 3.2000 in Width [Metric] 8.1280 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 63 A Interrupt Rating 5 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC SUPPLEMENTARY PROTECTION Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. Type C characteristic is for general device protection in control circuits Identical wire screw connections on line and load side 70 mm D installation Quick-assembly system mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 5SY6363-7 |
| Application | SUPPLEMENTARY PROTECTION |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SY6363-7 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 54 mm W x 76 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frame | C |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 12.67 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.0670 lb |
| Gross Weight per Pack Metric | 0.48 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 0.9000 in |
| Height [Metric] | 2.2860 cm |
| Length | 4.4000 in |
| Length [Metric] | 11.1760 cm |
| Material | N/A |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCSA 235EN 60 898IEC/EN 60 947-2UL 1077 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 55 °C |
| Trip Range | 1.13 to 1.45 A Thermal/5 to 10 A Magnetic |
| Type | Characteristic |
| UNSPSC | 39121601 |
| UPC 11 | 75455495801 |
| UPC 12 | 754554958019 |
| Width | 3.2000 in |
| Width [Metric] | 8.1280 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 63 A |
| Interrupt Rating | 5 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| SUPPLEMENTARY PROTECTION |
| Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. |
| Type C characteristic is for general device protection in control circuits |
| Identical wire screw connections on line and load side |
| 70 mm D installation |
| Quick-assembly system mounting |
