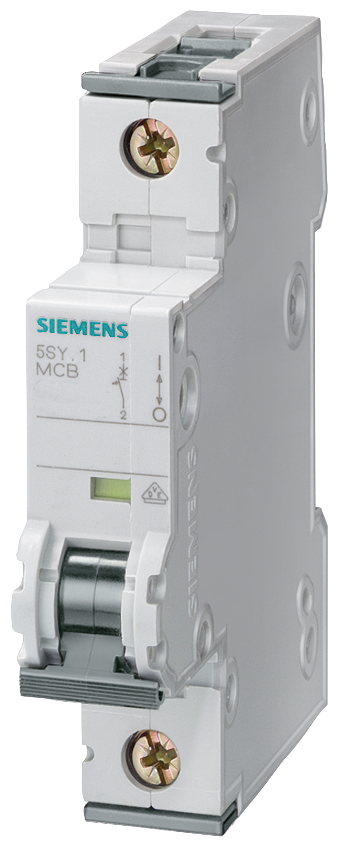

Sentron™ 5SY61066 Type C Characteristic Supplementary Protector, 230/400 VAC, 6 A, 6 kA Interrupt, 1 Pole
Custom_Product_Images_Illustration
Sentron™ 5SY61066 Type C Characteristic Supplementary Protector, 230/400 VAC, 6 A, 6 kA Interrupt, 1 Pole
SKU849101
MFGR #5SY61066
Your Cost: $33.08/ea
List: SIEMENS 5SY61066 UL1077 SUP. PROT 6KA 1P 6A B-TRIP
SIEMENS 5SY61066 UL1077 SUP. PROT 6KA 1P 6A B-TRIP
Alternate Catalog Number 5SY6106-6 Application SUPPLEMENTARY PROTECTION ARRA Compliant C Buy American Compliant C Catalog Number 5SY61066 Connection Identical wire screw connections on line and load side. Connection Type Line/Load/Screw Country of Origin DE Currency USD Dimensions 90 mm H x 18 mm W x 76 mm D Enclosure Type IP20 EU RoHS Indicator C Frame C Frequency Rating 50 Hz Gross Volume Per Pack 10.08 Gross Volume UOM in Gross Weight Per Pack 0.3400 lb Gross Weight per Pack Metric 0.15 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.2500 in Height [Metric] 8.2550 cm Length 3.6500 in Length [Metric] 9.2710 cm Material N/A Mounting Type DIN Rail Number Of Poles 1 Returnable N Standard UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE MarkedCSA 22.2 No. 235EN 60 898IEC/EN 60 947-2UL 1077 Sub Brand SENTRON Temperature Rating -25 to 55 °C Type Miniature UNSPSC 39121601 UPC 11 75455493639 UPC 12 754554936390 Width 0.8500 in Width [Metric] 2.1590 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 6 A Interrupt Rating 5 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC SUPPLEMENTARY PROTECTION Type B characteristic designed for European residential circuit protection. This characteristic can also be used for protection of computers and electronic equipment. Magnetic trip point - 3 to 5 times In rating. Thermal trip point - 1.13 to 1.45 protecto Type B characteristic designed for European residential circuit protection, this characteristic can also be used for protection of computers and electronic equipment Identical wire screw connections on line and load side 70 mm D installation Quick-assembly system mounting Magnetic trip point - 3 to 5 times in rating Thermal trip point - 1.13 to 1.45 protector rating Magnetic trip point - 5 to 10 times in rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 5SY6106-6 |
| Application | SUPPLEMENTARY PROTECTION |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SY61066 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Line/Load/Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 18 mm W x 76 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frame | C |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 10.08 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3400 lb |
| Gross Weight per Pack Metric | 0.15 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.2500 in |
| Height [Metric] | 8.2550 cm |
| Length | 3.6500 in |
| Length [Metric] | 9.2710 cm |
| Material | N/A |
| Mounting Type | DIN Rail |
| Number Of Poles | 1 |
| Returnable | N |
| Standard | UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE MarkedCSA 22.2 No. 235EN 60 898IEC/EN 60 947-2UL 1077 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 55 °C |
| Type | Miniature |
| UNSPSC | 39121601 |
| UPC 11 | 75455493639 |
| UPC 12 | 754554936390 |
| Width | 0.8500 in |
| Width [Metric] | 2.1590 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 6 A |
| Interrupt Rating | 5 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| SUPPLEMENTARY PROTECTION |
| Type B characteristic designed for European residential circuit protection. This characteristic can also be used for protection of computers and electronic equipment. Magnetic trip point - 3 to 5 times In rating. Thermal trip point - 1.13 to 1.45 protecto |
| Type B characteristic designed for European residential circuit protection, this characteristic can also be used for protection of computers and electronic equipment |
| Identical wire screw connections on line and load side |
| 70 mm D installation |
| Quick-assembly system mounting |
| Magnetic trip point - 3 to 5 times in rating |
| Thermal trip point - 1.13 to 1.45 protector rating |
| Magnetic trip point - 5 to 10 times in rating |
