Siemens

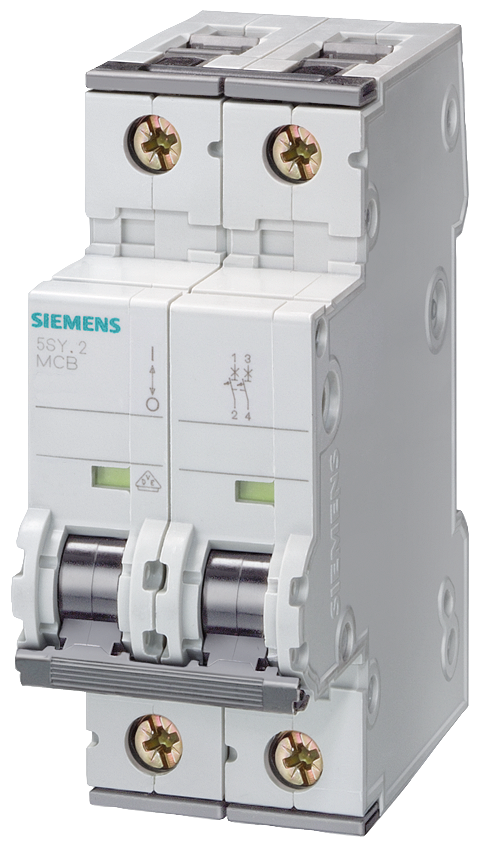

Sentron™ 5SY5206-7 Miniature Supplementary Protector, 400 VAC/440 VDC, 6 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Siemens
Sentron™ 5SY5206-7 Miniature Supplementary Protector, 400 VAC/440 VDC, 6 A, 10 kA Interrupt, 2 Poles
SKU340094
MFGR #5SY5206-7
$/ea
SIEMENS 5SY5206-7 SUPPLEMNTRY PROTECTOR
SIEMENS 5SY5206-7 SUPPLEMNTRY PROTECTOR
Actuator Type N/A Alternate Catalog Number 5SY5206-7 Application SUPPLEMENTARY PROTECTION ARRA Compliant C Auxiliary Contact Rating N/A Buy American Compliant C Catalog Number 5SY5206-7 Connection Identical wire screw connections on line and load side. Connection Type Screw Country of Origin DE Currency USD Dimensions 90 mm H x 36 mm W x 70 mm D Enclosure Type IP20 EU RoHS Indicator C Frame 10kA V Frequency Rating 50 Hz Gross Volume Per Pack 13.94 Gross Volume UOM in Gross Weight Per Pack 0.6800 lb Gross Weight per Pack Metric 0.31 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 2.9500 in Height [Metric] 7.4930 cm Insulation Type Identical wire screw connections on line and load side. Length 3.5000 in Length [Metric] 8.8900 cm Material N/A Mounting Type DIN Rail Number Of Poles 2 Phase 1 Hz Power Rating SUPPLEMENTARY PROTECTION Returnable Y Series Sentron Standard UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 Standards ARRA, Buy American Act and RoHS Compliant, CE Certified, cULus Listed, CSA 22.2 No. 235, EN 60898, IEC/EN 60947-2, UL 1077 File No E116386 Sub Brand SENTRON Temperature Rating -25 to 45 °C Trip Range C Type Miniature UNSPSC 39121601 UPC 11 75455487877 UPC 12 754554878775 Width 1.3500 in Width [Metric] 3.4290 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 6 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 480Y/277 VAC SUPPLEMENTARY PROTECTION Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. Excellent current limiting and selectivity characteristics Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2 Combined terminals enable a simultaneous connection of busbars and feeder cables Uniform components that can be quickly mounted individually The handle locking device virtually prevents any unauthorized operation of the handle Rapid connection of the feeder cable in front of the busbar Identical terminals at both sides for an optional infeed from the top or the bottom Identical wire screw on line and load side No tool required for mounting or dismounting Supports a fast and comfortable removal from the assembly Trip indication Type C characteristic is for general device protection in control circuits 35 mm DIN Rail mounting Magnetic trip point - 5 to 10 times in rating Thermal trip point - 1.13 to 1.45 protector rating 230/400 VAC/440 VDC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | N/A |
| Alternate Catalog Number | 5SY5206-7 |
| Application | SUPPLEMENTARY PROTECTION |
| ARRA Compliant | C |
| Auxiliary Contact Rating | N/A |
| Buy American Compliant | C |
| Catalog Number | 5SY5206-7 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 36 mm W x 70 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frame | 10kA V |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 13.94 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6800 lb |
| Gross Weight per Pack Metric | 0.31 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 2.9500 in |
| Height [Metric] | 7.4930 cm |
| Insulation Type | Identical wire screw connections on line and load side. |
| Length | 3.5000 in |
| Length [Metric] | 8.8900 cm |
| Material | N/A |
| Mounting Type | DIN Rail |
| Number Of Poles | 2 |
| Phase | 1 Hz |
| Power Rating | SUPPLEMENTARY PROTECTION |
| Returnable | Y |
| Series | Sentron |
| Standard | UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 |
| Standards | ARRA, Buy American Act and RoHS Compliant, CE Certified, cULus Listed, CSA 22.2 No. 235, EN 60898, IEC/EN 60947-2, UL 1077 File No E116386 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 45 °C |
| Trip Range | C |
| Type | Miniature |
| UNSPSC | 39121601 |
| UPC 11 | 75455487877 |
| UPC 12 | 754554878775 |
| Width | 1.3500 in |
| Width [Metric] | 3.4290 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 6 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480Y/277 VAC |
| SUPPLEMENTARY PROTECTION |
| Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. |
| Excellent current limiting and selectivity characteristics |
| Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2 |
| Combined terminals enable a simultaneous connection of busbars and feeder cables |
| Uniform components that can be quickly mounted individually |
| The handle locking device virtually prevents any unauthorized operation of the handle |
| Rapid connection of the feeder cable in front of the busbar |
| Identical terminals at both sides for an optional infeed from the top or the bottom |
| Identical wire screw on line and load side |
| No tool required for mounting or dismounting |
| Supports a fast and comfortable removal from the assembly |
| Trip indication |
| Type C characteristic is for general device protection in control circuits |
| 35 mm DIN Rail mounting |
| Magnetic trip point - 5 to 10 times in rating |
| Thermal trip point - 1.13 to 1.45 protector rating |
| 230/400 VAC/440 VDC |
