Siemens

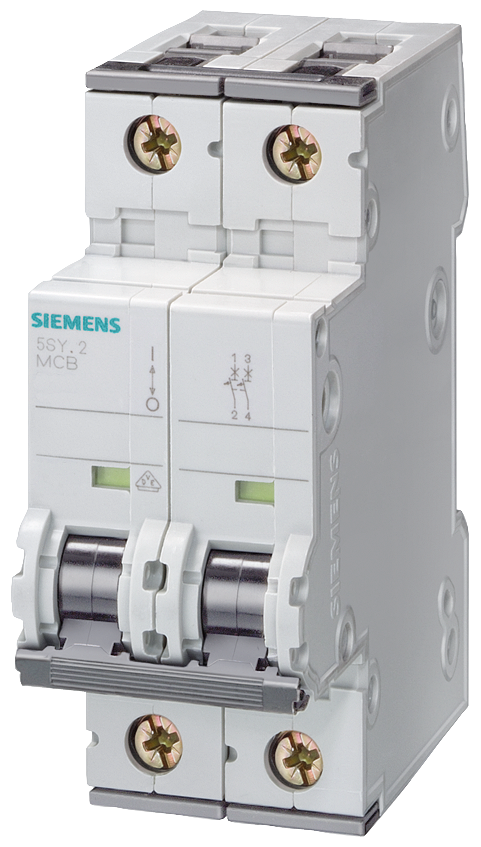

Sentron™ 5SY5204-7 5SY Miniature Circuit Breaker, 400 VAC, 4 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens
Sentron™ 5SY5204-7 5SY Miniature Circuit Breaker, 400 VAC, 4 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU810308
MFGR #5SY5204-7
Your Cost: $226.80/ea
List: SIEMENS 5SY5204-7 SUPPLEMENTARY PROTECTOR,2P,4A,CURVE C
SIEMENS 5SY5204-7 SUPPLEMENTARY PROTECTOR,2P,4A,CURVE C
Actuator Type Handle Alternate Catalog Number 5SY5204-7 Application SUPPLEMENTARY PROTECTION ARRA Compliant C Buy American Compliant C Catalog Number 5SY5204-7 Connection Identical wire screw connections on line and load side. Connection Type Screw Country of Origin DE Currency USD Dimensions 90 mm H x 36 mm W x 76 mm D Enclosure Type IP20/IP40 EU RoHS Indicator C Frequency Rating 50 Hz Gross Volume Per Pack 226.58 Gross Volume UOM in Gross Weight Per Pack 0.7000 lb Gross Weight per Pack Metric 0.32 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 2.9500 in Height [Metric] 7.4930 cm Length 1.5000 in Length [Metric] 3.8100 cm Material N/A Mounting Type DIN Rail Number Of Poles 2 Returnable Y Series 5SY Standard UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 Standards CSA C22.2 No. 235IEC/EN 60898-1/IEC/EN 60947-2CE CertifiedCCC CertifiedIMQ CertifiedUL 1077 Sub Brand SENTRON Temperature Rating -25 to 55 °C Trip Range 1.13 to 1.45 A Type MINIATURE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 75455487876 UPC 12 754554878768 Width 3.8000 in Width [Metric] 9.6520 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 4 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 400 VAC SUPPLEMENTARY PROTECTION Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. Clear and visible conductor connection in front of the rear busbar facilitates controls The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space Double terminal chambers permit accommodation of two wires of different cross-sections Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices For the quick and easy mounting of auxiliary switches and fault signal contacts Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools Class C trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | 5SY5204-7 |
| Application | SUPPLEMENTARY PROTECTION |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SY5204-7 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 36 mm W x 76 mm D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | C |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 226.58 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.7000 lb |
| Gross Weight per Pack Metric | 0.32 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 2.9500 in |
| Height [Metric] | 7.4930 cm |
| Length | 1.5000 in |
| Length [Metric] | 3.8100 cm |
| Material | N/A |
| Mounting Type | DIN Rail |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | 5SY |
| Standard | UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 |
| Standards | CSA C22.2 No. 235IEC/EN 60898-1/IEC/EN 60947-2CE CertifiedCCC CertifiedIMQ CertifiedUL 1077 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 55 °C |
| Trip Range | 1.13 to 1.45 A |
| Type | MINIATURE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 75455487876 |
| UPC 12 | 754554878768 |
| Width | 3.8000 in |
| Width [Metric] | 9.6520 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 4 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 400 VAC |
| SUPPLEMENTARY PROTECTION |
| Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. |
| Clear and visible conductor connection in front of the rear busbar facilitates controls |
| The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space |
| Double terminal chambers permit accommodation of two wires of different cross-sections |
| Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed |
| Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices |
| For the quick and easy mounting of auxiliary switches and fault signal contacts |
| Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools |
| Class C trip |
