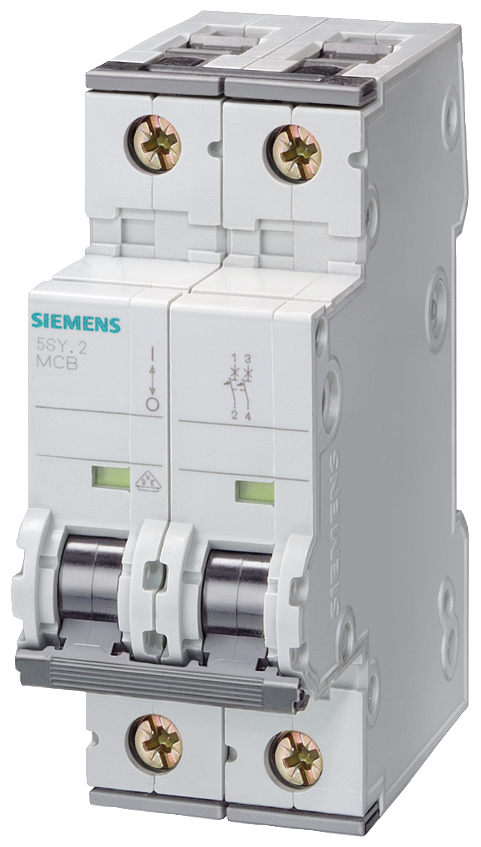

Sentron™ 5SY4208-7 Miniature Supplementary Protector, 480 VAC, 8 A, 5 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Sentron™ 5SY4208-7 Miniature Supplementary Protector, 480 VAC, 8 A, 5 kA Interrupt, 2 Poles
SKU480072
MFGR #5SY4208-7
Your Cost: $77.05/ea
List: SIEMENS 5SY4208-7 SUPPLEMENTARY PROTECTOR,2P,8A,CURVE C
SIEMENS 5SY4208-7 SUPPLEMENTARY PROTECTOR,2P,8A,CURVE C
Alternate Catalog Number 5SY4208-7 Application SUPPLEMENTARY PROTECTION ARRA Compliant C Buy American Compliant C Catalog Number 5SY4208-7 Connection Identical wire screw connections on line and load side. Connection Type Line/Load Side/Screw Country of Origin DE Currency USD Dimensions 90 mm H x 36 mm W x 70 mm D Enclosure Type IP20 EU RoHS Indicator C Frame 5SY4 Frequency Rating 50 Hz Gross Volume Per Pack 41.04 Gross Volume UOM in Gross Weight Per Pack 0.7250 lb Gross Weight per Pack Metric 0.33 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.8000 in Height [Metric] 9.6520 cm Length 4.5000 in Length [Metric] 11.4300 cm Material N/A Mounting Type DIN Rail Number Of Poles 2 Returnable Y Standard UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE MarkedcULus ListedCSA 22.2 No. 235IEC/EN 60898IEC/EN 60947-2UL 1077 File No. E116386 Sub Brand SENTRON Temperature Rating -25 to 45 °C Trip Range 9.04 to 11.6 A Type Miniature UNSPSC 39121601 UPC 11 75455487587 UPC 12 754554875873 Width 2.4000 in Width [Metric] 6.0960 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 8 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC SUPPLEMENTARY PROTECTION Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. Excellent current limiting and selectivity characteristics Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2 Combined terminals enable a simultaneous connection of busbars and feeder cables Uniform components that can be quickly mounted individually The handle locking device virtually prevents any unauthorized operation of the handle Rapid connection of the feeder cable in front of the busbar Identical terminals at both sides for an optional infeed from the top or the bottom Identical wire screw-on line and load side No tool required for mounting or dismounting Supports a fast and comfortable removal from the assembly Trip indication Type C characteristic is for general device protection in control circuits 35 mm DIN-rail mounting 5 to 10 times magnetic trip point rating 1.13 to 1.45 thermal trip point protector rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 5SY4208-7 |
| Application | SUPPLEMENTARY PROTECTION |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SY4208-7 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Line/Load Side/Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 36 mm W x 70 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frame | 5SY4 |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 41.04 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.7250 lb |
| Gross Weight per Pack Metric | 0.33 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.8000 in |
| Height [Metric] | 9.6520 cm |
| Length | 4.5000 in |
| Length [Metric] | 11.4300 cm |
| Material | N/A |
| Mounting Type | DIN Rail |
| Number Of Poles | 2 |
| Returnable | Y |
| Standard | UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE MarkedcULus ListedCSA 22.2 No. 235IEC/EN 60898IEC/EN 60947-2UL 1077 File No. E116386 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 45 °C |
| Trip Range | 9.04 to 11.6 A |
| Type | Miniature |
| UNSPSC | 39121601 |
| UPC 11 | 75455487587 |
| UPC 12 | 754554875873 |
| Width | 2.4000 in |
| Width [Metric] | 6.0960 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 8 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| SUPPLEMENTARY PROTECTION |
| Type C characteristic is for general device protection in control circuits. Magnetic trip point - 5 to 10 times In rating. Thermal trip point - 1.13 to 1.45 protector rating. |
| Excellent current limiting and selectivity characteristics |
| Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2 |
| Combined terminals enable a simultaneous connection of busbars and feeder cables |
| Uniform components that can be quickly mounted individually |
| The handle locking device virtually prevents any unauthorized operation of the handle |
| Rapid connection of the feeder cable in front of the busbar |
| Identical terminals at both sides for an optional infeed from the top or the bottom |
| Identical wire screw-on line and load side |
| No tool required for mounting or dismounting |
| Supports a fast and comfortable removal from the assembly |
| Trip indication |
| Type C characteristic is for general device protection in control circuits |
| 35 mm DIN-rail mounting |
| 5 to 10 times magnetic trip point rating |
| 1.13 to 1.45 thermal trip point protector rating |
