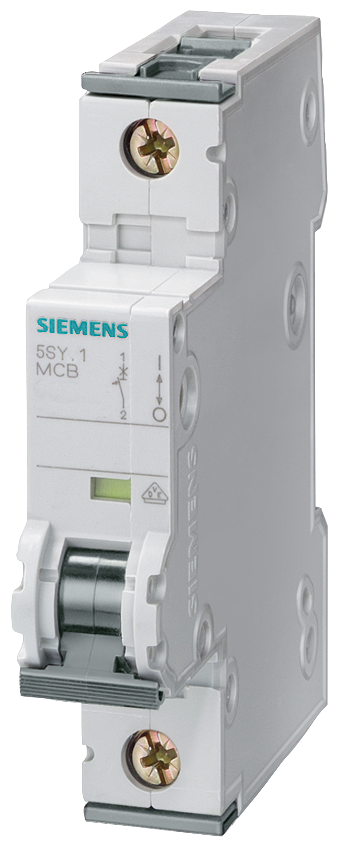

Sentron™ 5SY4120-6 Miniature Supplementary Protector, 480 VAC, 20 A, 5 kA Interrupt, 1 Pole
Custom_Product_Images_Illustration
Sentron™ 5SY4120-6 Miniature Supplementary Protector, 480 VAC, 20 A, 5 kA Interrupt, 1 Pole
SKU735180
MFGR #5SY4120-6
Your Cost: $38.66/ea
List: SIEMENS 5SY4120-6 SUPPLEMENTARY PROTECTOR 1P 20A CURVE B
SIEMENS 5SY4120-6 SUPPLEMENTARY PROTECTOR 1P 20A CURVE B
Actuator Type N/A Alternate Catalog Number 5SY4120-6 Application SUPPLEMENTARY PROTECTION ARRA Compliant C Auxiliary Contact Rating N/A Buy American Compliant C Catalog Number 5SY4120-6 Connection Identical wire screw connections on line and load side. Connection Type Screw Country of Origin DE Currency USD Dimensions 90 mm H x 18 mm W x 70 mm D Enclosure Type IP20 EU RoHS Indicator C Frame 5kA V Frequency Rating 50 Hz Gross Volume Per Pack 9.90 Gross Volume UOM in Gross Weight Per Pack 0.3640 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.2700 in Height [Metric] 8.3058 cm Insulation Type Identical wire screw connections on line and load side. Length 3.6610 in Length [Metric] 9.2989 cm Material N/A Mounting Type DIN Rail Phase 1 Hz Power Rating SUPPLEMENTARY PROTECTION Returnable N Series Sentron Standard UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 Standards ARRA, Buy American Act and RoHS Compliant, CE Certified, cULus Listed, CSA 22.2 No. 235, EN 60898, IEC/EN 60947-2, UL 1077 File No E116386 Sub Brand SENTRON Temperature Rating -25 to 45 °C Trip Range B Type Miniature UNSPSC 39121601 UPC 11 75455487528 UPC 12 754554875286 Width 0.8270 in Width [Metric] 2.1006 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 20 A Interrupt Rating 5 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC SUPPLEMENTARY PROTECTION Type B characteristic designed for European residential circuit protection. This characteristic can also be used for protection of computers and electronic equipment. Magnetic trip point - 3 to 5 times In rating. Thermal trip point - 1.13 to 1.45 protecto Excellent current limiting and selectivity characteristics Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2 Combined terminals enable a simultaneous connection of busbars and feeder cables Uniform components that can be quickly mounted individually The handle locking device virtually prevents any unauthorized operation of the handle Rapid connection of the feeder cable in front of the busbar Identical terminals at both sides for an optional infeed from the top or the bottom Identical wire screw on line and load side No tool required for mounting or dismounting Supports a fast and comfortable removal from the assembly Trip indication Type B characteristic designed for European residential circuit protection, this characteristic can also be used for protection of computers and electronic equipment 35 mm DIN Rail mounting Magnetic trip point - 3 to 5 times in rating Thermal trip point - 1.13 to 1.45 protector rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | N/A |
| Alternate Catalog Number | 5SY4120-6 |
| Application | SUPPLEMENTARY PROTECTION |
| ARRA Compliant | C |
| Auxiliary Contact Rating | N/A |
| Buy American Compliant | C |
| Catalog Number | 5SY4120-6 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 18 mm W x 70 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frame | 5kA V |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 9.90 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3640 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.2700 in |
| Height [Metric] | 8.3058 cm |
| Insulation Type | Identical wire screw connections on line and load side. |
| Length | 3.6610 in |
| Length [Metric] | 9.2989 cm |
| Material | N/A |
| Mounting Type | DIN Rail |
| Phase | 1 Hz |
| Power Rating | SUPPLEMENTARY PROTECTION |
| Returnable | N |
| Series | Sentron |
| Standard | UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2 |
| Standards | ARRA, Buy American Act and RoHS Compliant, CE Certified, cULus Listed, CSA 22.2 No. 235, EN 60898, IEC/EN 60947-2, UL 1077 File No E116386 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 45 °C |
| Trip Range | B |
| Type | Miniature |
| UNSPSC | 39121601 |
| UPC 11 | 75455487528 |
| UPC 12 | 754554875286 |
| Width | 0.8270 in |
| Width [Metric] | 2.1006 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 20 A |
| Interrupt Rating | 5 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| SUPPLEMENTARY PROTECTION |
| Type B characteristic designed for European residential circuit protection. This characteristic can also be used for protection of computers and electronic equipment. Magnetic trip point - 3 to 5 times In rating. Thermal trip point - 1.13 to 1.45 protecto |
| Excellent current limiting and selectivity characteristics |
| Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2 |
| Combined terminals enable a simultaneous connection of busbars and feeder cables |
| Uniform components that can be quickly mounted individually |
| The handle locking device virtually prevents any unauthorized operation of the handle |
| Rapid connection of the feeder cable in front of the busbar |
| Identical terminals at both sides for an optional infeed from the top or the bottom |
| Identical wire screw on line and load side |
| No tool required for mounting or dismounting |
| Supports a fast and comfortable removal from the assembly |
| Trip indication |
| Type B characteristic designed for European residential circuit protection, this characteristic can also be used for protection of computers and electronic equipment |
| 35 mm DIN Rail mounting |
| Magnetic trip point - 3 to 5 times in rating |
| Thermal trip point - 1.13 to 1.45 protector rating |
