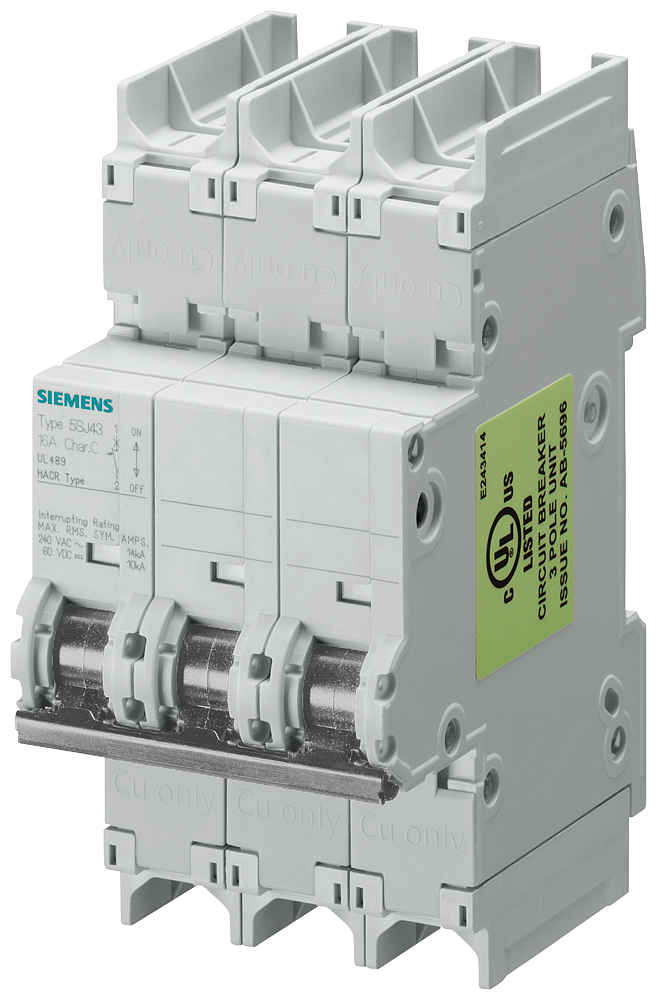

Sentron™ 5SJ4350-8HG41 Miniature Circuit Breaker, 240 VAC/125 VDC, 50 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Sentron™ 5SJ4350-8HG41 Miniature Circuit Breaker, 240 VAC/125 VDC, 50 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU404271
MFGR #5SJ4350-8HG41
Your Cost: $351.92/ea
List: SIEMENS 5SJ4350-8HG41 CIRCUIT BREAKER
SIEMENS 5SJ4350-8HG41 CIRCUIT BREAKER
Actuator Type Handle Alternate Catalog Number 5SJ4350-8HG41 Application BRANCH CIRCUIT PROTECTORS ARRA Compliant C Buy American Compliant C Catalog Number 5SJ4350-8HG41 Connection Identical wire screw connections on line and load side. Connection Type Line/Load/Screw Country of Origin DE Currency USD Dimensions 110 mm H x 54 mm W x 70 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50 Hz Gross Volume Per Pack 12.67 Gross Volume UOM in Gross Weight Per Pack 1.1530 lb Gross Weight per Pack Metric 0.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 3.3500 in Height [Metric] 8.5090 cm Length 4.1000 in Length [Metric] 10.4140 cm Mounting Type DIN Rail Number Of Poles 3 Phase 3 Returnable N Standard UL 489 Rated Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA 22.2 No 5-02CE MarkedcULus ListedEN 60 898EN 60 947-2HACR RatedUL 489 File No. E243414 Sub Brand SENTRON Temperature Rating -25 to 55 °C Type Type NSJ UNSPSC 39121601 UPC 11 75455493971 UPC 12 754554939711 Width 2.2000 in Width [Metric] 5.5880 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 50 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC BRANCH CIRCUIT PROTECTORS 3 poles Can be used for field wiring applications, 14 to 4 AWG, copper only D-trip is designed for high inrush loads, magnetic trip point is 10 to 20 times the MCB rating 0.75 to 35 sq-mm solid and stranded conductors Visible indicator for ON and OFF/trip Touch protection to EN50274 Identical wire screw connections on line and load side Smaller size than traditional MCCBs 35 mm DIN rail mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | 5SJ4350-8HG41 |
| Application | BRANCH CIRCUIT PROTECTORS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SJ4350-8HG41 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Line/Load/Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 110 mm H x 54 mm W x 70 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 12.67 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.1530 lb |
| Gross Weight per Pack Metric | 0.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.3500 in |
| Height [Metric] | 8.5090 cm |
| Length | 4.1000 in |
| Length [Metric] | 10.4140 cm |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | N |
| Standard | UL 489 Rated |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA 22.2 No 5-02CE MarkedcULus ListedEN 60 898EN 60 947-2HACR RatedUL 489 File No. E243414 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 55 °C |
| Type | Type NSJ |
| UNSPSC | 39121601 |
| UPC 11 | 75455493971 |
| UPC 12 | 754554939711 |
| Width | 2.2000 in |
| Width [Metric] | 5.5880 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 50 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| BRANCH CIRCUIT PROTECTORS |
| 3 poles |
| Can be used for field wiring applications, 14 to 4 AWG, copper only |
| D-trip is designed for high inrush loads, magnetic trip point is 10 to 20 times the MCB rating |
| 0.75 to 35 sq-mm solid and stranded conductors |
| Visible indicator for ON and OFF/trip |
| Touch protection to EN50274 |
| Identical wire screw connections on line and load side |
| Smaller size than traditional MCCBs |
| 35 mm DIN rail mounting |
