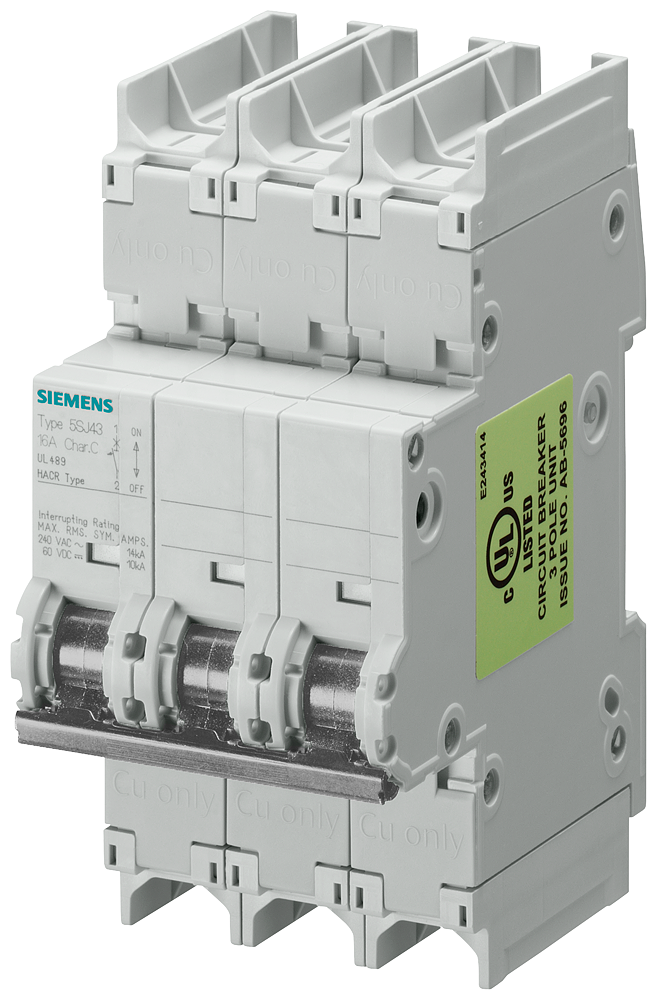

Sentron™ 5SJ43407HG41 Miniature Circuit Breaker, 240 VAC/125 VDC, 40 A, 14 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Sentron™ 5SJ43407HG41 Miniature Circuit Breaker, 240 VAC/125 VDC, 40 A, 14 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU643333
MFGR #5SJ43407HG41
Your Cost: $200.31/ea
List: SIEMENS 5SJ43407HG41 MCB UL489 3-POLE 40A C-TRIP TYPE HSJ
SIEMENS 5SJ43407HG41 MCB UL489 3-POLE 40A C-TRIP TYPE HSJ
Actuator Type Handle Alternate Catalog Number 5SJ4340-7HG41 Application BRANCH CIRCUIT PROTECTORS ARRA Compliant C Buy American Compliant C Catalog Number 5SJ43407HG41 Connection Screwless terminals on the outgoing side for 1.5 to 4mm? Connection Type Screwless Country of Origin DE Currency USD Dimensions 110 mm H x 54 mm W x 70 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50 Hz Gross Volume Per Pack 54.40 Gross Volume UOM in Gross Weight Per Pack 1.1250 lb Gross Weight per Pack Metric 0.51 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 4.2500 in Height [Metric] 10.7950 cm Length 4.0000 in Length [Metric] 10.1600 cm Mounting Type DIN Rail Number Of Poles 3 Phase 3 Returnable N Standard UL 489 Rated Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA 22.2 No 5-02CE MarkedcULus ListedEN 60 898EN 60 947-2HACR RatedUL 489 File No. E243414 Sub Brand SENTRON Temperature Rating -25 to 55 °C Type Type HSJ UNSPSC 39121601 UPC 11 66264316835 UPC 12 662643168358 Width 3.2000 in Width [Metric] 8.1280 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 40 A Interrupt Rating 14 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC BRANCH CIRCUIT PROTECTORS 3 poles 40 deg C calibration base (industrial applications) Can be used for field wiring applications, 14 to 4 AWG, copper only C-trip is designed for general device protection in control circuits and all other miniature circuit breaker systems, magnetic trip point is 5 to 10 times the MCB rating 0.75 to 35 sq-mm solid and stranded conductors Visible indicator for ON and OFF/trip Touch protection to EN50274 Identical wire screw connections on line and load side Smaller size than traditional MCCBs 35 mm DIN rail mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | 5SJ4340-7HG41 |
| Application | BRANCH CIRCUIT PROTECTORS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SJ43407HG41 |
| Connection | Screwless terminals on the outgoing side for 1.5 to 4mm? |
| Connection Type | Screwless |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 110 mm H x 54 mm W x 70 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 54.40 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.1250 lb |
| Gross Weight per Pack Metric | 0.51 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 4.2500 in |
| Height [Metric] | 10.7950 cm |
| Length | 4.0000 in |
| Length [Metric] | 10.1600 cm |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | N |
| Standard | UL 489 Rated |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA 22.2 No 5-02CE MarkedcULus ListedEN 60 898EN 60 947-2HACR RatedUL 489 File No. E243414 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 55 °C |
| Type | Type HSJ |
| UNSPSC | 39121601 |
| UPC 11 | 66264316835 |
| UPC 12 | 662643168358 |
| Width | 3.2000 in |
| Width [Metric] | 8.1280 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 40 A |
| Interrupt Rating | 14 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| BRANCH CIRCUIT PROTECTORS |
| 3 poles |
| 40 deg C calibration base (industrial applications) |
| Can be used for field wiring applications, 14 to 4 AWG, copper only |
| C-trip is designed for general device protection in control circuits and all other miniature circuit breaker systems, magnetic trip point is 5 to 10 times the MCB rating |
| 0.75 to 35 sq-mm solid and stranded conductors |
| Visible indicator for ON and OFF/trip |
| Touch protection to EN50274 |
| Identical wire screw connections on line and load side |
| Smaller size than traditional MCCBs |
| 35 mm DIN rail mounting |
