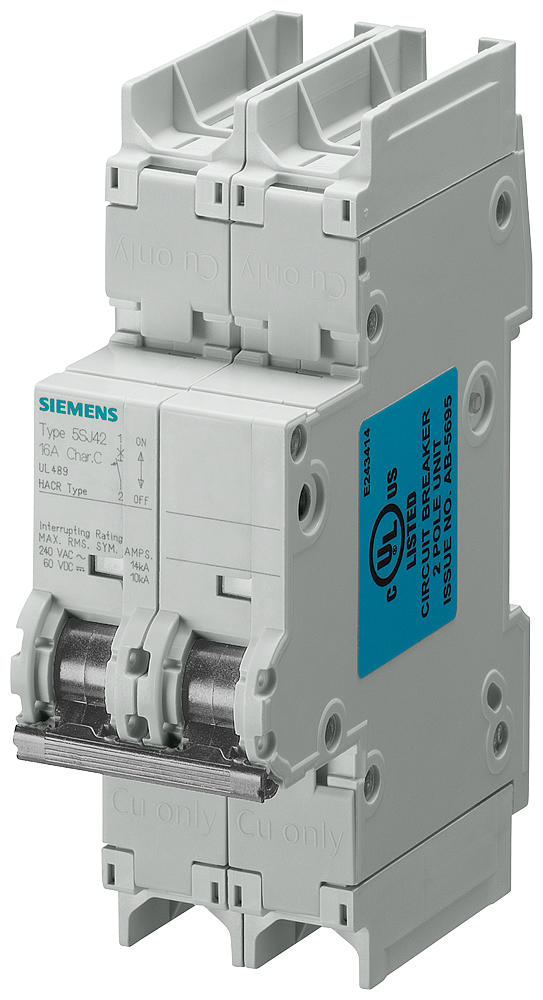

Sentron™ 5SJ42307HG41 Miniature Circuit Breaker, 240 VAC/125 VDC, 30 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Sentron™ 5SJ42307HG41 Miniature Circuit Breaker, 240 VAC/125 VDC, 30 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU738839
MFGR #5SJ42307HG41
Your Cost: $129.60/ea
List: SIEMENS 5SJ42307HG41 MCB UL489 2-POLE 30A C-TRIP TYPE HSJ
SIEMENS 5SJ42307HG41 MCB UL489 2-POLE 30A C-TRIP TYPE HSJ
Actuator Type Handle Alternate Catalog Number 5SJ4230-7HG41 Application BRANCH CIRCUIT PROTECTORS ARRA Compliant C Buy American Compliant C Catalog Number 5SJ42307HG41 Connection Identical wire screw connections on line and load side. Connection Type Line/Load/Screw Country of Origin DE Currency USD Dimensions 110 mm H x 36 mm W x 70 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50 Hz Gross Volume Per Pack 24.13 Gross Volume UOM in Gross Weight Per Pack 0.7300 lb Gross Weight per Pack Metric 0.33 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 3.2500 in Height [Metric] 8.2550 cm Length 4.5000 in Length [Metric] 11.4300 cm Material N/A Mounting Type DIN Rail Number Of Poles 2 Phase 1 Returnable Y Standard UL 489, CSA 22.2 NO. 5-02, HACR, IEC/EN 60 898, IEC/EN 60 947-2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA 22.2 No 5-02CE MarkedcULus ListedEN 60 898EN 60 947-2HACR RatedUL 489 File No. E243414 Sub Brand SENTRON Temperature Rating -25 to 55 °C Type Type HSJ UNSPSC 39121601 UPC 11 66264316809 UPC 12 662643168099 Width 1.6500 in Width [Metric] 4.1910 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 30 A Interrupt Rating 14 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC BRANCH CIRCUIT PROTECTORS 2-POLE Can be used for field wiring applications, 14 to 4 AWG, copper only C-trip is designed for general device protection in control circuits and all other miniature circuit breaker systems, magnetic trip point is 5 to 10 times the MCB rating 0.75 to 35 sq-mm solid and stranded conductors Visible indicator for ON and OFF/trip Touch protection to EN50274 Identical wire screw connections on line and load side Smaller size than traditional MCCBs 35 mm DIN rail mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | 5SJ4230-7HG41 |
| Application | BRANCH CIRCUIT PROTECTORS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SJ42307HG41 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Line/Load/Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 110 mm H x 36 mm W x 70 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 24.13 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.7300 lb |
| Gross Weight per Pack Metric | 0.33 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.2500 in |
| Height [Metric] | 8.2550 cm |
| Length | 4.5000 in |
| Length [Metric] | 11.4300 cm |
| Material | N/A |
| Mounting Type | DIN Rail |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Standard | UL 489, CSA 22.2 NO. 5-02, HACR, IEC/EN 60 898, IEC/EN 60 947-2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA 22.2 No 5-02CE MarkedcULus ListedEN 60 898EN 60 947-2HACR RatedUL 489 File No. E243414 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 55 °C |
| Type | Type HSJ |
| UNSPSC | 39121601 |
| UPC 11 | 66264316809 |
| UPC 12 | 662643168099 |
| Width | 1.6500 in |
| Width [Metric] | 4.1910 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 30 A |
| Interrupt Rating | 14 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| BRANCH CIRCUIT PROTECTORS |
| 2-POLE |
| Can be used for field wiring applications, 14 to 4 AWG, copper only |
| C-trip is designed for general device protection in control circuits and all other miniature circuit breaker systems, magnetic trip point is 5 to 10 times the MCB rating |
| 0.75 to 35 sq-mm solid and stranded conductors |
| Visible indicator for ON and OFF/trip |
| Touch protection to EN50274 |
| Identical wire screw connections on line and load side |
| Smaller size than traditional MCCBs |
| 35 mm DIN rail mounting |
