Siemens

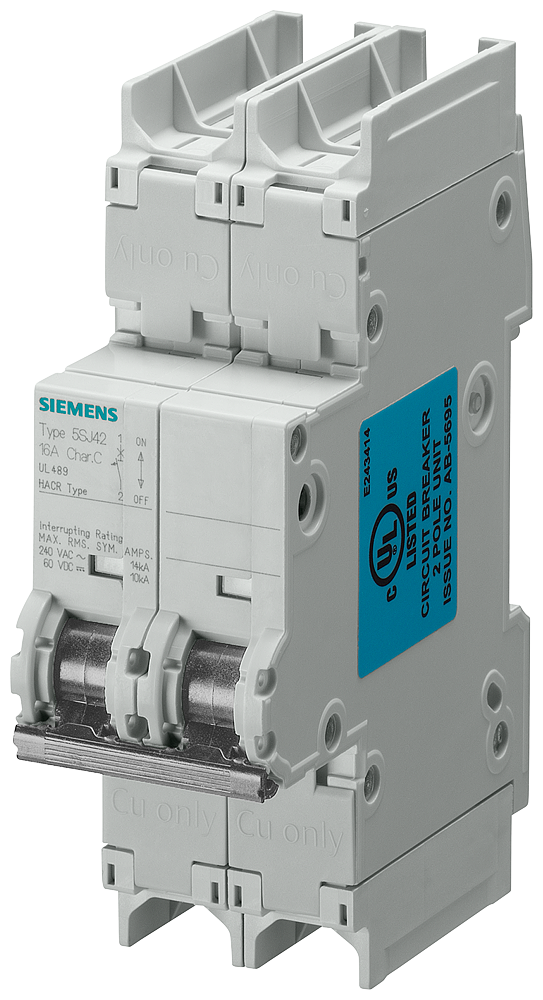

Sentron™ 5SJ4208-8HG41 Miniature Circuit Breaker, 240 VAC/125 VDC, 8 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens
Sentron™ 5SJ4208-8HG41 Miniature Circuit Breaker, 240 VAC/125 VDC, 8 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU367838
MFGR #5SJ4208-8HG41
Your Cost: $129.60/ea
List: SIEMENS 5SJ4208-8HG41 CIRCUIT BREAKER
SIEMENS 5SJ4208-8HG41 CIRCUIT BREAKER
Actuator Type Handle Alternate Catalog Number 5SJ4208-8HG41 Application BRANCH CIRCUIT PROTECTORS ARRA Compliant C Buy American Compliant C Catalog Number 5SJ4208-8HG41 Connection Identical wire screw connections on line and load side. Connection Type Screw Country of Origin DE Currency USD Dimensions 110 mm H x 36 mm W x 70 mm D Enclosure Type IP20 EU RoHS Indicator C Frame HSJ Frequency Rating 50 Hz Gross Volume Per Pack 23.40 Gross Volume UOM in Gross Weight Per Pack 0.7340 lb Gross Weight per Pack Metric 0.33 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 3.3100 in Height [Metric] 8.4074 cm Length 4.4880 in Length [Metric] 11.3995 cm Mounting Type DIN Rail Number Of Poles 2 Phase 1 Returnable N Standard UL 489 Rated Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA 22.2 No. 5-02CE CertifiedcULus ListedEN 60898EN 60947-2HACR RatedUL 489 File No E243414 Sub Brand SENTRON Temperature Rating -25 to 55 °C Type HSJ UNSPSC 39121601 UPC 11 75455493905 UPC 12 754554939056 Width 1.5750 in Width [Metric] 4.0005 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 8 A Interrupt Rating 14 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC BRANCH CIRCUIT PROTECTORS 2 poles
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | 5SJ4208-8HG41 |
| Application | BRANCH CIRCUIT PROTECTORS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SJ4208-8HG41 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 110 mm H x 36 mm W x 70 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frame | HSJ |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 23.40 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.7340 lb |
| Gross Weight per Pack Metric | 0.33 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.3100 in |
| Height [Metric] | 8.4074 cm |
| Length | 4.4880 in |
| Length [Metric] | 11.3995 cm |
| Mounting Type | DIN Rail |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Standard | UL 489 Rated |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA 22.2 No. 5-02CE CertifiedcULus ListedEN 60898EN 60947-2HACR RatedUL 489 File No E243414 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 55 °C |
| Type | HSJ |
| UNSPSC | 39121601 |
| UPC 11 | 75455493905 |
| UPC 12 | 754554939056 |
| Width | 1.5750 in |
| Width [Metric] | 4.0005 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 8 A |
| Interrupt Rating | 14 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| BRANCH CIRCUIT PROTECTORS |
| 2 poles |
