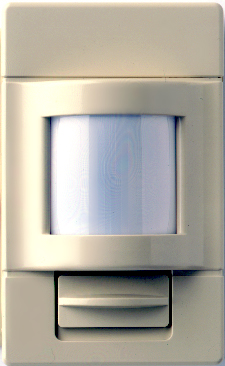

SensorSwitch™ WVRPDT16WH WVR Line Voltage Wide View Occupancy Sensor, 120 to 277 VAC, 40 ft Coverage, 120 deg, Surface Mount
SensorSwitch™ WVRPDT16WH WVR Line Voltage Wide View Occupancy Sensor, 120 to 277 VAC, 40 ft Coverage, 120 deg, Surface Mount
SKU924826
MFGR #WVR PDT 16 WH
Your Cost: $156.31/ea
The WVR PDT 16 Series sensor mounts in a corner, provides line of sight PIR detection of small movements up to 40 ft away as well as Microphonics™ for detection around obstructions. These features make it ideal for retrofit applications like classrooms with inaccessible ceilings. WVR PDT 16 sensors are powered by and directly switch line voltage, therefore no Power Packs are needed. Additionally, these sensors do not require a neutral, making wiring directly off local switches with wiremold a convenient option. Together, these features make them perfect for retrofit applications where running new wiring is difficult. A WVR PDT 16 sensor is equipped with either one relay or an optional 2nd realy (2P), each with the ability to control up to 13 A.
The WVR PDT 16 Series sensor mounts in a corner, provides line of sight PIR detection of small movements up to 40 ft away as well as Microphonics™ for detection around obstructions. These features make it ideal for retrofit applications like classrooms with inaccessible ceilings. WVR PDT 16 sensors are powered by and directly switch line voltage, therefore no Power Packs are needed. Additionally, these sensors do not require a neutral, making wiring directly off local switches with wiremold a convenient option. Together, these features make them perfect for retrofit applications where running new wiring is difficult. A WVR PDT 16 sensor is equipped with either one relay or an optional 2nd realy (2P), each with the ability to control up to 13 A.
Alternate Catalog Number 184PF8 Amperage Rating 16 A Application Education,Government,Healthcare,Hospitality,Manufacturing,Offices & Banks,Religious,Retail,Sports and Recreation,Warehouses ARRA Compliant C Buy American Compliant C Catalog Number WVR PDT 16 WH Color White Connection Type Wired Country of Origin US Currency USD Dimensions 3 in H x 3.6 in W x 1.75 in D Environmental Conditions Indoor EU RoHS Indicator C Gross Weight Per Pack 0.5000 lb Gross Weight per Pack Metric 0.22 Gross Weight UOM Metric kg Height 4.00 in Height [Metric] 10.1600 cm Length 4.00 in Length [Metric] 10.1600 cm Material Plastic Mounting Surface Response Frequency 50/60 Hz Sensing Range 120 degrees Series WVR Standard cUL,UL Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus ListedUL Listed Supply Voltage 120,277 V Type Line Voltage UNSPSC 39122236 UPC 11 74597589724 UPC 12 745975897247 Warranty Description 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions Width 2.25 in Width [Metric] 5.7150 cm Stock Status NONSTOCK Brand SensorSwitch™ Manufacturer Acuity Brands Coverage 40 ft Mounting Type Surface Sensor Type Passive Infrared/Microphonics™Dual Technology Viewing Angle 120 ° Voltage Rating 120 to 277 VAC Education,Government,Healthcare,Hospitality,Manufacturing,Offices & Banks,Religious,Retail,Sports and Recreation,Warehouses 100% digital PIR detection, excellent RF immunity 120 deg by 40 ft coverage for small motion Single and 2-pole versions Interchangeable hot and load wires impossible to wire backwards No neutral required/no minimum load Compatible with electronic and magnetic ballasts, CFLs, and incandescents 1 pole
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 184PF8 |
| Amperage Rating | 16 A |
| Application | Education,Government,Healthcare,Hospitality,Manufacturing,Offices & Banks,Religious,Retail,Sports and Recreation,Warehouses |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | WVR PDT 16 WH |
| Color | White |
| Connection Type | Wired |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3 in H x 3.6 in W x 1.75 in D |
| Environmental Conditions | Indoor |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.5000 lb |
| Gross Weight per Pack Metric | 0.22 |
| Gross Weight UOM Metric | kg |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Length | 4.00 in |
| Length [Metric] | 10.1600 cm |
| Material | Plastic |
| Mounting | Surface |
| Response Frequency | 50/60 Hz |
| Sensing Range | 120 degrees |
| Series | WVR |
| Standard | cUL,UL |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus ListedUL Listed |
| Supply Voltage | 120,277 V |
| Type | Line Voltage |
| UNSPSC | 39122236 |
| UPC 11 | 74597589724 |
| UPC 12 | 745975897247 |
| Warranty Description | 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions |
| Width | 2.25 in |
| Width [Metric] | 5.7150 cm |
| Stock Status | NONSTOCK |
| Brand | SensorSwitch™ |
| Manufacturer | Acuity Brands |
| Coverage | 40 ft |
| Mounting Type | Surface |
| Sensor Type | Passive Infrared/Microphonics™Dual Technology |
| Viewing Angle | 120 ° |
| Voltage Rating | 120 to 277 VAC |
| Education,Government,Healthcare,Hospitality,Manufacturing,Offices & Banks,Religious,Retail,Sports and Recreation,Warehouses |
| 100% digital PIR detection, excellent RF immunity |
| 120 deg by 40 ft coverage for small motion |
| Single and 2-pole versions |
| Interchangeable hot and load wires impossible to wire backwards |
| No neutral required/no minimum load |
| Compatible with electronic and magnetic ballasts, CFLs, and incandescents |
| 1 pole |
