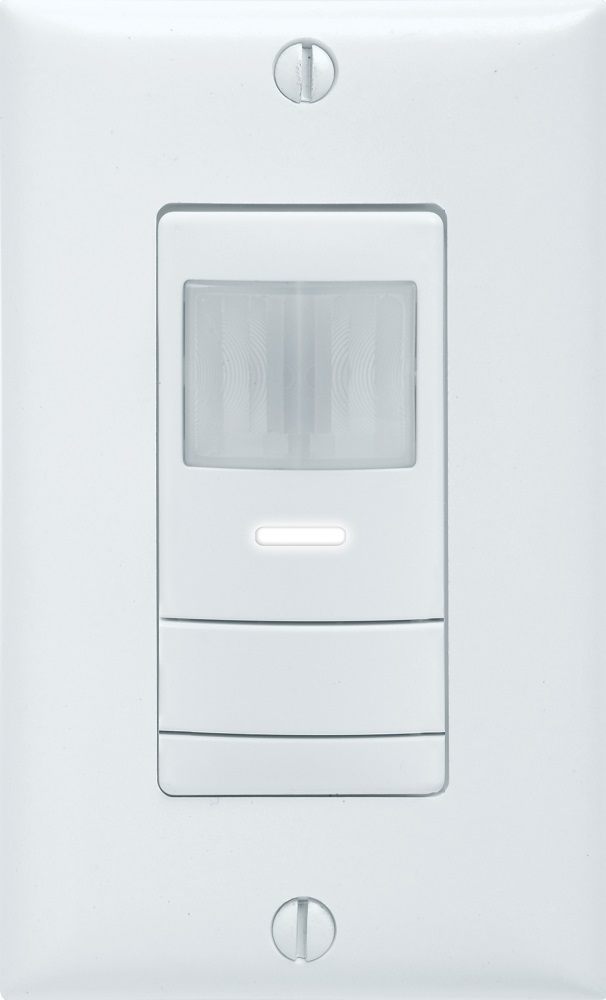

SensorSwitch™ WSX-WH Sensor Switch™ WSX Single Relay Wall Switch Occupancy Sensor, 120/277 VAC, Passive Infrared Sensor
Custom_Product_Images_Illustration
SensorSwitch™ WSX-WH Sensor Switch™ WSX Single Relay Wall Switch Occupancy Sensor, 120/277 VAC, Passive Infrared Sensor
SKU767981
MFGR #WSXWH
Your Cost: $61.76/ea
The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds.
The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds.
Alternate Catalog Number 216RF4 Application Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses ARRA Compliant C Brand SensorSwitch™ Buy American Compliant C Catalog Number WSXWH Color White Country of Origin US Coverage 20 ft Currency USD Dimensions 2.74 in H x 1.68 in W x 1.63 in D Environmental Conditions Indoor, High Humidity EU RoHS Indicator C Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 5.00 in Height [Metric] 12.7000 cm Lamp Type Fluorescent/Incandescent/LED Length 3.00 in Length [Metric] 7.6200 cm Manufacturer Acuity Brands Material Plastic Mounting Wall Mounting Type Wall Power Rating 800/1200 W Response Frequency 50/60 Hz Sensing Range 180 degrees Sensor Type Passive Infrared Series WSX Standard cUL, UL Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcUL ListedcULus Listed Stock Status NORMALLY STOCKED Supply Voltage 120, 277 Temperature Rating 0 to 60 °C Type Rectangular Single Relay UNSPSC 39122236 UPC 11 75357376752 UPC 12 75357376752 Viewing Angle 180 ° Voltage Rating 120/277 VAC Width 2.50 in Width [Metric] 6.3500 cm Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses PRODUCT OVERVIEW The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds. All WSX Family sensors utilize 100% digital Passive Infrared (PIR) detection. Dual Technology (PDT option) versions add Microphonics detecti Compatible with LEDs, electronic and magnetic ballasts CFLs and incandescent 100% passive detection, no potential for interference with other building systems Small motion detection to 20 ft Push button programmable without removing cover plate adjustable time delays and operating modes Dual technology (PDT) utilizes PIR/microphonics detection (Patented) Self-grounding mounting strap Device accommodates powering over ground or neutral connection (patent pending) Ultra low current leakage (<0.5 mA) when connected via ground Fully meets NEC 2011 section 404.2C neutral requirements no current leakage to ground when connected to neutral Line power and load wires are interchangeable impossible to wire backwards (Patented) Integrated photocell (disabled by default) prevents light from turning on if sufficient daylight is present not available in nightlight versions Vandal-resistant lens 1-gang switch box mounting 30 to 48 in H mounting 1/4 hp motor load Auto-ON (default) or vacancy operating mode Networkable control Rectangular in shape For indoor environment For indoor environment
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 216RF4 |
| Application | Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses |
| ARRA Compliant | C |
| Brand | SensorSwitch™ |
| Buy American Compliant | C |
| Catalog Number | WSXWH |
| Color | White |
| Country of Origin | US |
| Coverage | 20 ft |
| Currency | USD |
| Dimensions | 2.74 in H x 1.68 in W x 1.63 in D |
| Environmental Conditions | Indoor, High Humidity |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 5.00 in |
| Height [Metric] | 12.7000 cm |
| Lamp Type | Fluorescent/Incandescent/LED |
| Length | 3.00 in |
| Length [Metric] | 7.6200 cm |
| Manufacturer | Acuity Brands |
| Material | Plastic |
| Mounting | Wall |
| Mounting Type | Wall |
| Power Rating | 800/1200 W |
| Response Frequency | 50/60 Hz |
| Sensing Range | 180 degrees |
| Sensor Type | Passive Infrared |
| Series | WSX |
| Standard | cUL, UL |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcUL ListedcULus Listed |
| Stock Status | NORMALLY STOCKED |
| Supply Voltage | 120, 277 |
| Temperature Rating | 0 to 60 °C |
| Type | Rectangular Single Relay |
| UNSPSC | 39122236 |
| UPC 11 | 75357376752 |
| UPC 12 | 75357376752 |
| Viewing Angle | 180 ° |
| Voltage Rating | 120/277 VAC |
| Width | 2.50 in |
| Width [Metric] | 6.3500 cm |
| Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses |
| PRODUCT OVERVIEW The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds. All WSX Family sensors utilize 100% digital Passive Infrared (PIR) detection. Dual Technology (PDT option) versions add Microphonics detecti |
| Compatible with LEDs, electronic and magnetic ballasts CFLs and incandescent |
| 100% passive detection, no potential for interference with other building systems |
| Small motion detection to 20 ft |
| Push button programmable without removing cover plate adjustable time delays and operating modes |
| Dual technology (PDT) utilizes PIR/microphonics detection (Patented) |
| Self-grounding mounting strap |
| Device accommodates powering over ground or neutral connection (patent pending) |
| Ultra low current leakage (<0.5 mA) when connected via ground |
| Fully meets NEC 2011 section 404.2C neutral requirements no current leakage to ground when connected to neutral |
| Line power and load wires are interchangeable impossible to wire backwards (Patented) |
| Integrated photocell (disabled by default) prevents light from turning on if sufficient daylight is present not available in nightlight versions |
| Vandal-resistant lens |
| 1-gang switch box mounting |
| 30 to 48 in H mounting |
| 1/4 hp motor load |
| Auto-ON (default) or vacancy operating mode |
| Networkable control |
| Rectangular in shape |
| For indoor environment |
