SensorSwitch™ WSD-PDT-LV-WH Sensor Switch™ WSD Decorator Style Single Relay Wall Switch Occupancy Sensor, 120/277 VAC, PDT Sensor
Wall Mount Occupancy Sensors
389165
MFG #: WSD PDT LV WH
SensorSwitch™
113.14000
/ ea

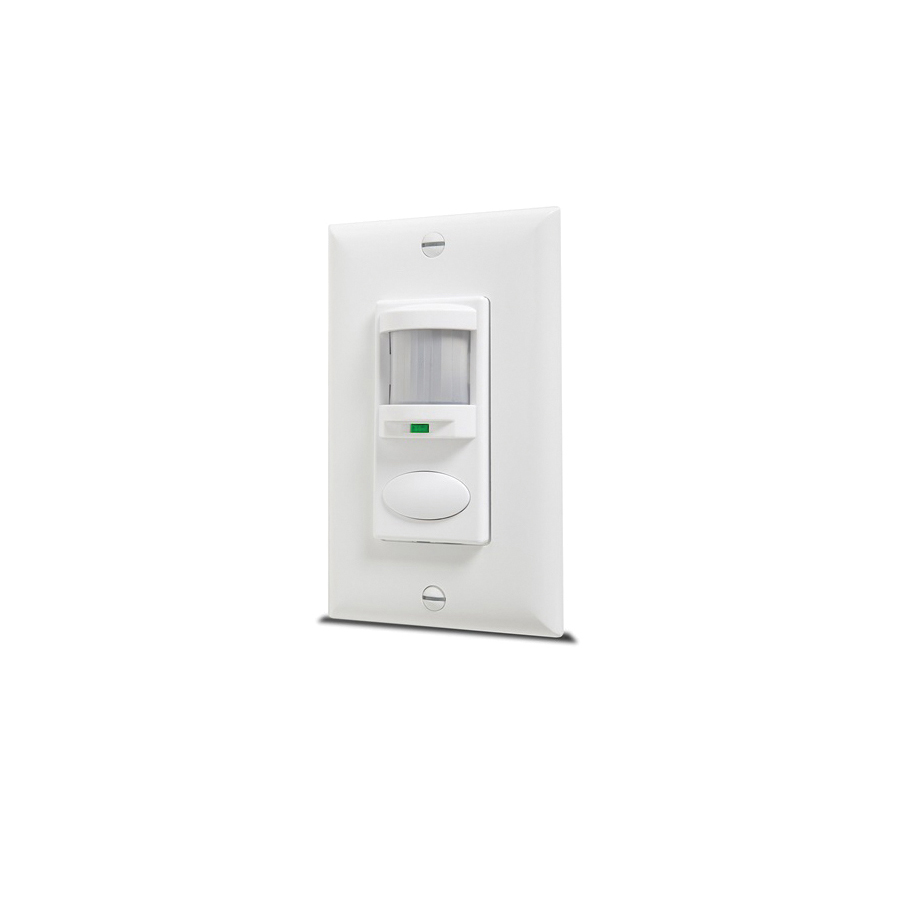

The WSD is a stylish, easy to install, and simple to use Wall Switch Decorator style Passive Infrared (PIR) sensor. It is ideal for private offices, copy rooms, closets, or any small enclosed space without obstructions. A user programmable time delay ensures that once the room is vacated the sensor will time out and turn off the lights. Additionally, the WSD sensor has several On Modes and Switch Modes that can be programmed using the front push-button. For rooms with obstructions, the Dual Technology WSD PDT Series sensor is recommended. Additionally, all WSD Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSD units come preconfigured for wiring without a neutral; however, if connection to neutral is required by code, contractors can convert the unit in seconds.
- http://www.lithonia.com(Seller Home Page URL)
- Install Instructions 1 URL - 10988_ITH92WE6OX0K4NUL.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 10988_D2JO9RPYGW5L4VZU.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/7Pz5pmIEjgQ&list=UUFP5PsClhTc2oJorpoF3Ljg(Video)
- Install Instructions URL - Lithonia_Lighting_WSD_IV_Installation_Instructions.pdf(Install Instructions URL)
- Spec Sheet URL - WSD-PDT-2P.PDF(Spec Sheet URL)
- Wiring Diagram URL - 10988_KDN8J3HVABQ752W4.pdf(Wiring Diagram URL)
- Warranty URL - terms-and-conditions(Warranty URL)
- Applications
- Features
Closet/Storage Room, Private Office, Restroom |
Compatible with LEDs, electronic and magnetic ballasts, CFLs and incandescent |
100% passive detection, no potential for interference with other building systems |
Small motion detection up to 20 ft |
Push button programmable without removing cover plate - adjustable time delays and operating modes |
Dual technology (PDT) utilizes PIR/Microphonics™ detection (patented) |
Self-grounding mounting strap |
Device accommodates powering over ground or neutral connection (patent pending) |
Ultra low current leakage (<0.5 mA) when connected via ground |
Fully meets NEC 2011 section 404.2C neutral requirements, no current leakage to ground when connected to neutral |
Line power and load wires are interchangeable impossible to wire backwards (patented) |
Standard temperature range and humidity |
Single gang switch box mounting |
1/4 hp motor load |
Self-contained relay switches line voltage load |
Green LED indicator |
No neutral connection required |
No minimum load requirements |
Non-Volatile settings memory |
Gloss finish |
For indoor environment |
