SensorSwitch™
SensorSwitch™ Sensor Switch™ WSX Single Relay Wall Switch Occupancy Sensor, 120/277 VAC, Passive Infrared Sensor
Custom_Product_Images_Illustration
SensorSwitch™

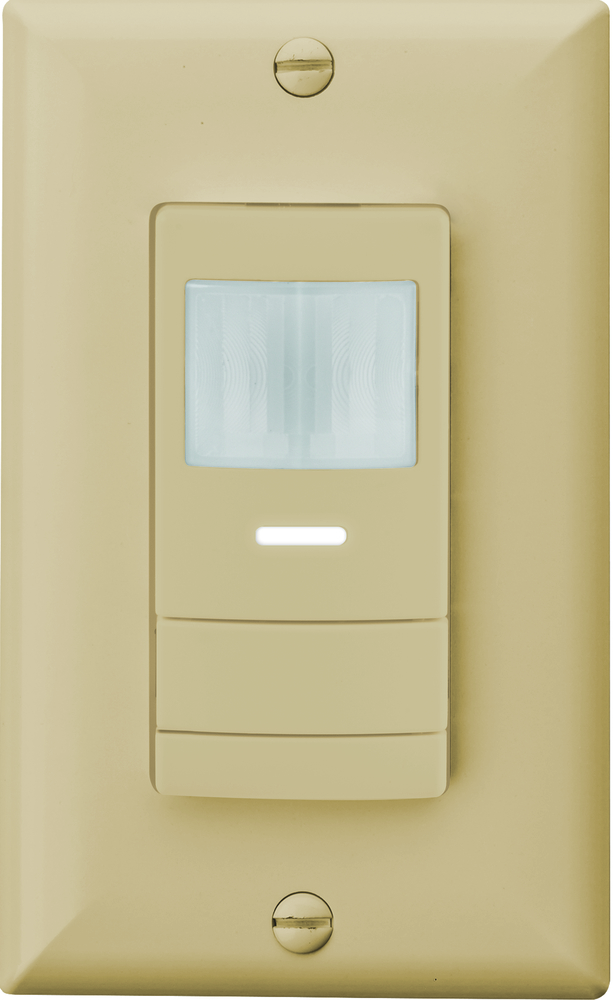

SensorSwitch™ Sensor Switch™ WSX Single Relay Wall Switch Occupancy Sensor, 120/277 VAC, Passive Infrared Sensor
SKU1055746
MFGR #WSX IV
Your Cost: $50.34/ea
The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds.
The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds.
Alternate Catalog Number 218Y8U Application Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses ARRA Compliant C Buy American Compliant C Catalog Number WSX IV Color Ivory Country of Origin MX Currency USD Dimensions 2.74 in H x 1.68 in W x 1.63 in D Environmental Conditions Indoor, High Humidity EU RoHS Indicator C Gross Weight Per Pack 0.3200 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 4.50 in Height [Metric] 11.4300 cm Lamp Type Fluorescent/Incandescent/LED Length 1.50 in Length [Metric] 3.8100 cm Material Plastic Mounting Wall Power Rating 800/1200 W Response Frequency 50/60 Hz Sensing Range 180 degrees Series WSX Standard cUL, UL Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcUL ListedcULus Listed Supply Voltage 120, 277 Temperature Rating 0 to 60 °C Type Rectangular Single Relay UNSPSC 39122236 UPC 11 82047607017 UPC 12 820476070174 Warranty Description 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions Width 2.75 in Width [Metric] 6.9850 cm Stock Status NONSTOCK Brand SensorSwitch™ Manufacturer Acuity Brands Coverage 20 ft Mounting Type Wall Sensor Type Passive Infrared Viewing Angle 180 ° Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses PRODUCT OVERVIEW The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds. All WSX Family sensors utilize 100% digital Passive Infrared (PIR) detection. Dual Technology (PDT option) versions add Microphonics detecti Compatible with LEDs, electronic and magnetic ballasts CFLs and incandescent 100% passive detection, no potential for interference with other building systems Small motion detection to 20 ft Push button programmable without removing cover plate adjustable time delays and operating modes Dual technology (PDT) utilizes PIR/microphonics detection (Patented) Self-grounding mounting strap Device accommodates powering over ground or neutral connection (patent pending) Ultra low current leakage (<0.5 mA) when connected via ground Fully meets NEC 2011 section 404.2C neutral requirements no current leakage to ground when connected to neutral Line power and load wires are interchangeable impossible to wire backwards (Patented) Integrated photocell (disabled by default) prevents light from turning on if sufficient daylight is present not available in nightlight versions Vandal-resistant lens 1-gang switch box mounting 30 to 48 in H mounting 1/4 hp motor load Auto-ON (default) or vacancy operating mode Networkable control
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 218Y8U |
| Application | Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | WSX IV |
| Color | Ivory |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.74 in H x 1.68 in W x 1.63 in D |
| Environmental Conditions | Indoor, High Humidity |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3200 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 4.50 in |
| Height [Metric] | 11.4300 cm |
| Lamp Type | Fluorescent/Incandescent/LED |
| Length | 1.50 in |
| Length [Metric] | 3.8100 cm |
| Material | Plastic |
| Mounting | Wall |
| Power Rating | 800/1200 W |
| Response Frequency | 50/60 Hz |
| Sensing Range | 180 degrees |
| Series | WSX |
| Standard | cUL, UL |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcUL ListedcULus Listed |
| Supply Voltage | 120, 277 |
| Temperature Rating | 0 to 60 °C |
| Type | Rectangular Single Relay |
| UNSPSC | 39122236 |
| UPC 11 | 82047607017 |
| UPC 12 | 820476070174 |
| Warranty Description | 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions |
| Width | 2.75 in |
| Width [Metric] | 6.9850 cm |
| Stock Status | NONSTOCK |
| Brand | SensorSwitch™ |
| Manufacturer | Acuity Brands |
| Coverage | 20 ft |
| Mounting Type | Wall |
| Sensor Type | Passive Infrared |
| Viewing Angle | 180 ° |
| Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses |
| PRODUCT OVERVIEW The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds. All WSX Family sensors utilize 100% digital Passive Infrared (PIR) detection. Dual Technology (PDT option) versions add Microphonics detecti |
| Compatible with LEDs, electronic and magnetic ballasts CFLs and incandescent |
| 100% passive detection, no potential for interference with other building systems |
| Small motion detection to 20 ft |
| Push button programmable without removing cover plate adjustable time delays and operating modes |
| Dual technology (PDT) utilizes PIR/microphonics detection (Patented) |
| Self-grounding mounting strap |
| Device accommodates powering over ground or neutral connection (patent pending) |
| Ultra low current leakage (<0.5 mA) when connected via ground |
| Fully meets NEC 2011 section 404.2C neutral requirements no current leakage to ground when connected to neutral |
| Line power and load wires are interchangeable impossible to wire backwards (Patented) |
| Integrated photocell (disabled by default) prevents light from turning on if sufficient daylight is present not available in nightlight versions |
| Vandal-resistant lens |
| 1-gang switch box mounting |
| 30 to 48 in H mounting |
| 1/4 hp motor load |
| Auto-ON (default) or vacancy operating mode |
| Networkable control |
