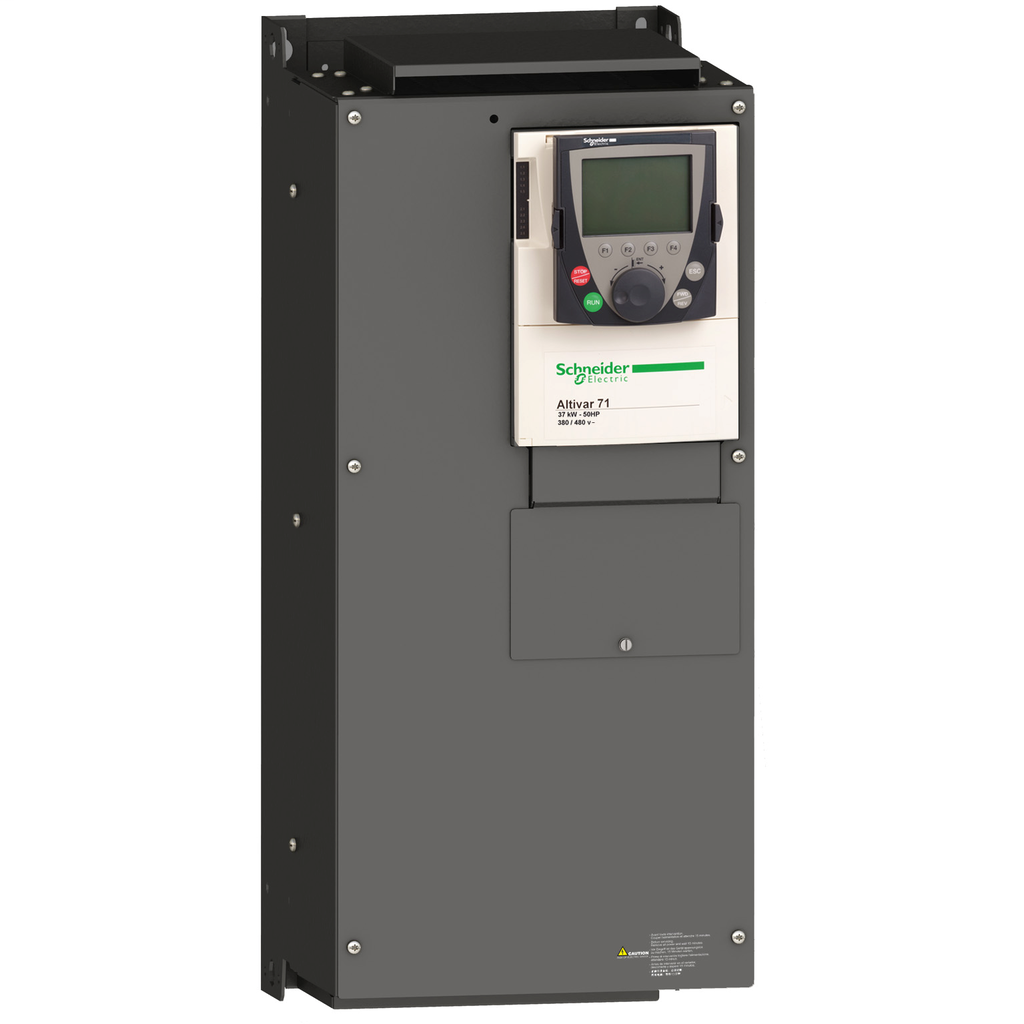

Schneider ElectricAltivar 71 ATV71HD75N4 Variable Speed Drive, 380/480 VAC, 160 A, 100 hp, 12.6 in W x 11.42 in D
Custom_Product_Images_Illustration
Schneider Electric
Schneider ElectricAltivar 71 ATV71HD75N4 Variable Speed Drive, 380/480 VAC, 160 A, 100 hp, 12.6 in W x 11.42 in D
SKU298170
MFGR #ATV71HD75N4
Your Cost: $15,770.05/ea
Schneider Electric ATV71HD75N4 SPEED DRIVE, 100HP, 460V, ATV71,3 phases,3-Phase,3-Phase,400/480VAC,75kW,Altivar 71,Altivar 71,IP20,Modbus-CANopen,Modbus-CANopen,complex, high-power machines,variable speed drive
Schneider Electric ATV71HD75N4 SPEED DRIVE, 100HP, 460V, ATV71,3 phases,3-Phase,3-Phase,400/480VAC,75kW,Altivar 71,Altivar 71,IP20,Modbus-CANopen,Modbus-CANopen,complex, high-power machines,variable speed drive
Amperage Rating 160 A Application 100 HP, 3 PHASE 380...480 V,75 KW, 3 PHASE 380...480 V,ASYNCHRONOUS MOTORS-SYNCHRONOUS MOTORS,COMPLEX, HIGH-POWER MACHINES ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number ATV71HD75N4 Control +/- 0.01 OF NOMINAL SPEED IN CLOSED-LOOP MODE WITH ENCODER FEEDBACK 0.2 TN TO TN-+/- 10 OF NOMINAL SLIP WITHOUT SPEED FEEDBACK 0.2 TN TO TN Country of Origin IN Depth 11.42 in Display DRIVE VOLTAGE 1 LED RED) Display Type LED Enclosure IP20 Enclosure Type Open/IP20 Environmental Conditions -10-50 A°C WITHOUT) EU RoHS Indicator Y Gross Weight Per Pack 121.0000 lb Harmonization Tariff Schedule Code 8504404000 Height 24.8 in Horsepower 100 hp Item Group 22132 Manufacturer Schneider Electric Mounting Type Panel Returnable Y Size 290 MM,320 MM,630 MM Stock Status NONSTOCK Sub Brand ALTIVAR 71 Type 3-Phase UNSPSC 39122001 UPC 11 78590157099 UPC 12 785901570998 Voltage Rating 400/480 VAC Width 12.6 in 100 HP, 3 PHASE 380...480 V,75 KW, 3 PHASE 380...480 V,ASYNCHRONOUS MOTORS-SYNCHRONOUS MOTORS,COMPLEX, HIGH-POWER MACHINES ENA (ENERGY ADAPTATION) SYSTEM FOR UNBALANCED LOADS-VOLTAGE/FREQUENCY RATIO (2 OR 5 POINTS)-FLUX VECTOR CONTROL (FVC) WITH SENSOR (CURRENT VECTOR)-SENSORLESS FLUX VECTOR CONTROL (SFVC) (VOLTAGE OR CURRENT VECTOR),ADJUSTABLE PI REGULATOR,AGAINST EXCEEDING LIMIT SPEED DRIVE-SHORT-CIRCUIT BETWEEN MOTOR PHASES DRIVE-THERMAL PROTECTION DRIVE-MOTOR PHASE BREAK MOTOR-POWER REMOVAL MOTOR-THERMAL PROTECTION MOTOR-AGAINST INPUT PHASE LOSS DRIVE-BREAK ON THE CONTROL CIRCUIT DRIVE-INPUT PHASE BREAKS DRIVE-LINE SUPPLY OVERVOLTAGE DRIVE-LINE SUPPLY UNDERVOLTAGE DRIVE-OVERCURRENT BETWEEN OUTPUT PHASES AND EARTH DRIVE-OVERHEATING PROTECTION DRIVE-OVERVOLTAGES ON THE DC BUS DRIVE,INTERNAL SUPPLY FOR REFERENCE POTENTIOMETER (1 TO 10 KOHM) 10.5 V DC +/- 5 , <10 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION-INTERNAL SUPPLY 24 V DC 21-27 V), <200 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION,TERMINAL 2.5 MMA², AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)-TERMINAL 150 MMA² L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) Frequency inverters for 3-phase synchronous and asynchronous motors Speed regulation by flux vector control with or without sensor Protection of motor and of drive Exceptional performance, advanced functions Altivar® 71 provides ingenious solutions for all your particular requirements Integrated EMC filter Class A Constant torque Graphic terminal plain text, navigation button, configurable function keys, "Simply Start" menu Modbus, CANopen communication port protocol 1 to 1000 in closed loop mode with encoder feedback, from 1 to 100 in open loop mode speed range
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 160 A |
| Application | 100 HP, 3 PHASE 380...480 V,75 KW, 3 PHASE 380...480 V,ASYNCHRONOUS MOTORS-SYNCHRONOUS MOTORS,COMPLEX, HIGH-POWER MACHINES |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | ATV71HD75N4 |
| Control | +/- 0.01 OF NOMINAL SPEED IN CLOSED-LOOP MODE WITH ENCODER FEEDBACK 0.2 TN TO TN-+/- 10 OF NOMINAL SLIP WITHOUT SPEED FEEDBACK 0.2 TN TO TN |
| Country of Origin | IN |
| Depth | 11.42 in |
| Display | DRIVE VOLTAGE 1 LED RED) |
| Display Type | LED |
| Enclosure | IP20 |
| Enclosure Type | Open/IP20 |
| Environmental Conditions | -10-50 A°C WITHOUT) |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 121.0000 lb |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 24.8 in |
| Horsepower | 100 hp |
| Item Group | 22132 |
| Manufacturer | Schneider Electric |
| Mounting Type | Panel |
| Returnable | Y |
| Size | 290 MM,320 MM,630 MM |
| Stock Status | NONSTOCK |
| Sub Brand | ALTIVAR 71 |
| Type | 3-Phase |
| UNSPSC | 39122001 |
| UPC 11 | 78590157099 |
| UPC 12 | 785901570998 |
| Voltage Rating | 400/480 VAC |
| Width | 12.6 in |
| 100 HP, 3 PHASE 380...480 V,75 KW, 3 PHASE 380...480 V,ASYNCHRONOUS MOTORS-SYNCHRONOUS MOTORS,COMPLEX, HIGH-POWER MACHINES |
| ENA (ENERGY ADAPTATION) SYSTEM FOR UNBALANCED LOADS-VOLTAGE/FREQUENCY RATIO (2 OR 5 POINTS)-FLUX VECTOR CONTROL (FVC) WITH SENSOR (CURRENT VECTOR)-SENSORLESS FLUX VECTOR CONTROL (SFVC) (VOLTAGE OR CURRENT VECTOR),ADJUSTABLE PI REGULATOR,AGAINST EXCEEDING LIMIT SPEED DRIVE-SHORT-CIRCUIT BETWEEN MOTOR PHASES DRIVE-THERMAL PROTECTION DRIVE-MOTOR PHASE BREAK MOTOR-POWER REMOVAL MOTOR-THERMAL PROTECTION MOTOR-AGAINST INPUT PHASE LOSS DRIVE-BREAK ON THE CONTROL CIRCUIT DRIVE-INPUT PHASE BREAKS DRIVE-LINE SUPPLY OVERVOLTAGE DRIVE-LINE SUPPLY UNDERVOLTAGE DRIVE-OVERCURRENT BETWEEN OUTPUT PHASES AND EARTH DRIVE-OVERHEATING PROTECTION DRIVE-OVERVOLTAGES ON THE DC BUS DRIVE,INTERNAL SUPPLY FOR REFERENCE POTENTIOMETER (1 TO 10 KOHM) 10.5 V DC +/- 5 , <10 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION-INTERNAL SUPPLY 24 V DC 21-27 V), <200 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION,TERMINAL 2.5 MMA², AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)-TERMINAL 150 MMA² L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Frequency inverters for 3-phase synchronous and asynchronous motors |
| Speed regulation by flux vector control with or without sensor |
| Protection of motor and of drive |
| Exceptional performance, advanced functions |
| Altivar® 71 provides ingenious solutions for all your particular requirements |
| Integrated EMC filter Class A |
| Constant torque |
| Graphic terminal plain text, navigation button, configurable function keys, "Simply Start" menu |
| Modbus, CANopen communication port protocol |
| 1 to 1000 in closed loop mode with encoder feedback, from 1 to 100 in open loop mode speed range |
