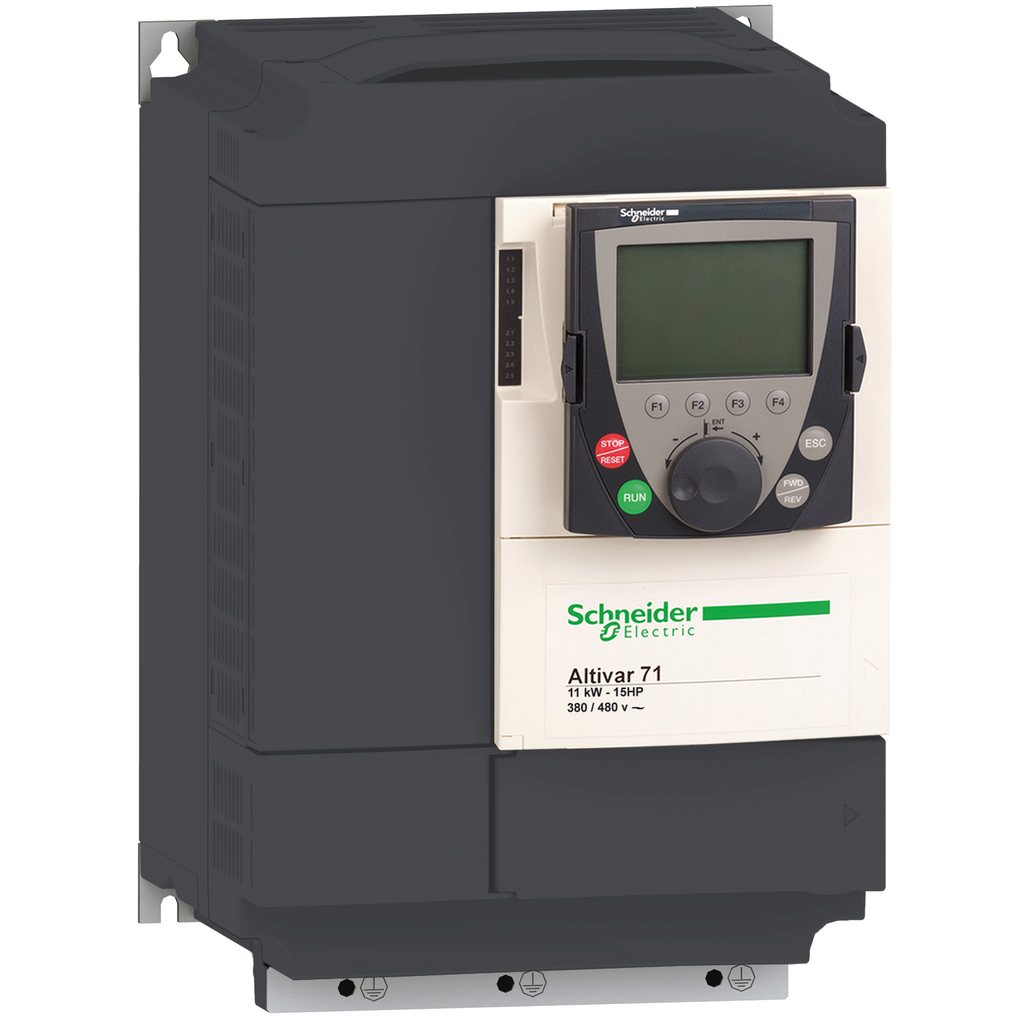

Schneider ElectricAltivar 71 ATV71HD11N4 Variable Speed Drive, 380/480 VAC, 27.7 A, 15 hp, 8.27 in W x 8.39 in D
AC Drives
260936
MFG #: ATV71HD11N4
Schneider Electric
3477.59000
/ ea
Schneider Electric ATV71HD11N4 SPEED DRIVE, 15HP, 460V, ATV71,11kW,3 phases,3-Phase,3-Phase,400/480VAC,Altivar 71,Altivar 71,IP20,Modbus-CANopen,Modbus-CANopen,complex, high-power machines,variable speed drive
- Brochure URL - db1f1373f1c1f988822180bff82c4a306a50e790.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_2fd08ee500428af679e6a483bd90a358f4d5d4a1f7b67a205ddf01d827485c20.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - cce836cdc95a4e13e08f9d6aef1d2dfda5b41689.pdf(Computer~Aided [CAD|BIM] Model URL)
- Owners Manual URL - Schneider_Electric_ATV61HC11N4_Manual.pdf(Owners Manual URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - a5185c4c1c61cf2ae1605bc1aa03fd566b152b41.pdf(Spec Sheet URL)
- Tech Bulletin URL - 7855e2dbfa3f9603a0a01e5c645d9054a3e16ebe.pdf(Tech Bulletin URL)
- Tech Drawing URL - 9720e8a69ab92236fa940f3cd808f2a3e61098ab(Tech Drawing URL)
- User Manual URL - 89d1333205d08274650a7939d5833cc950c2f599.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/Avmxgw6eeh8(Video)
- Applications
- Features
| 11 KW, 3 PHASE 380...480 V,15 HP, 3 PHASE 380...480 V,COMPLEX, HIGH-POWER MACHINES,SYNCHRONOUS MOTORS-ASYNCHRONOUS MOTORS |
| ENA (ENERGY ADAPTATION) SYSTEM FOR UNBALANCED LOADS-VOLTAGE/FREQUENCY RATIO (2 OR 5 POINTS)-SENSORLESS FLUX VECTOR CONTROL (SFVC) (VOLTAGE OR CURRENT VECTOR)-FLUX VECTOR CONTROL (FVC) WITH SENSOR (CURRENT VECTOR),ADJUSTABLE PI REGULATOR,AGAINST EXCEEDING LIMIT SPEED DRIVE-SHORT-CIRCUIT BETWEEN MOTOR PHASES DRIVE-THERMAL PROTECTION DRIVE-MOTOR PHASE BREAK MOTOR-POWER REMOVAL MOTOR-THERMAL PROTECTION MOTOR-AGAINST INPUT PHASE LOSS DRIVE-BREAK ON THE CONTROL CIRCUIT DRIVE-INPUT PHASE BREAKS DRIVE-LINE SUPPLY OVERVOLTAGE DRIVE-LINE SUPPLY UNDERVOLTAGE DRIVE-OVERCURRENT BETWEEN OUTPUT PHASES AND EARTH DRIVE-OVERHEATING PROTECTION DRIVE-OVERVOLTAGES ON THE DC BUS DRIVE,INTERNAL SUPPLY FOR REFERENCE POTENTIOMETER (1 TO 10 KOHM) 10.5 V DC +/- 5 , <10 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION-INTERNAL SUPPLY 24 V DC 21-27 V), <200 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION,TERMINAL 2.5 MMA², AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)-TERMINAL 16 MMA², AWG 4 L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Protection of motor and of drive |
| Exceptional performance and advanced functions |
| Altivar® 71 provides ingenious solutions for all your particular requirements |
| High performance applications |
| With heat sink assembly style |
| Integrated EMC filter |
| Constant torque |
| Graphic terminal |
| -10 to 50 deg C operating temperature |
| 11 kW power rating |
| Modbus CANopen, complex and high power machines |
